| Categories | GI Conduit Pipe |
|---|---|
| Brand Name: | RIFI |
| Model Number: | BS4568 |
| Certification: | BS |
| Place of Origin: | China |
| MOQ: | 1000 pcs |
| Price: | $0.6-$5/ PCS |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500000 pcs per month |
| Delivery Time: | 15-30 days |
| Packaging Details: | plastic bag packing |
| Size: | 20mm-50mm |
| Class: | Class 3 ;Class 4 |
| Thickness: | 1.2mm-1.6mm |
| Length: | 3.75 Meter |
| Standard: | BS4568 BS En61386 |
| Finish: | Pre-Galvanized ; Hot DIP Galvanized |
| Type: | Steel Gi Conduit |
| Product Name: | Gi Conduit Hot Dipped Galvanized Steel Class 4 |
| Company Info. |
| CHANGSHA ELEWELL IMPORT&EXPORT CO.,LTD |
| Verified Supplier |
| View Contact Details |
| Product List |

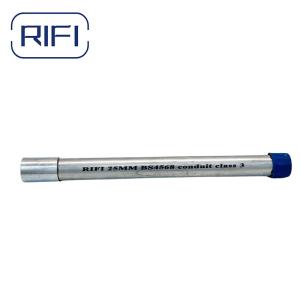

Quick Detail:
BS Electrical Conduit 20mm 25mm rigid conduit class 4 gi conduit
for wire protect
BS4568 is British Standard that specifies requirements for
electrical conduit systems,it have 2 finish , pre-galvanized called
class 3 , hot dip galvanized called class 4
Standard:BS 4568, BS 31 available
Grade:Q195-Q345, Q235, Q195
Thickness:1.2 - 1.6 mm
Section Shape:ROUND
Outer Diameter:20 - 50 mm
Place of Origin:Hunan, China
Application:Structure Pipe
Technique:pre-galvanized
Surface Treatment:galvanized
Special Pipe:EMT pipe; EMT conduit
Length:3.75M
Usage:Electrical Wiring
Quality:Competitive
Specifications:
BS Electrical Conduit 20mm 25mm rigid conduit class 4 gi conduit
for wire protect
| Outside Diameter | Length of Thread | |||||
| Pipe Size | Min | Max | Wall Thickness(mm) | Length(m) | Min | Max |
| 20 | 19.7mm | 20mm | 1.2-1.6 | 3.75 | 13mm | 15mm |
| 25 | 24.6mm | 25mm | 1.2-1.6 | 3.75 | 16mm | 18mm |
| 32 | 31.6mm | 32mm | 1.2-1.6 | 3.75 | 18mm | 20mm |
| 40 | 39.6mm | 40mm | 1.2-1.6 | 3.75 | 19mm | 22mm |
| 50 | 49.6mm | 59mm | 1.2-1.6 | 3.75 | 19mm | 22mm |
Fittings:

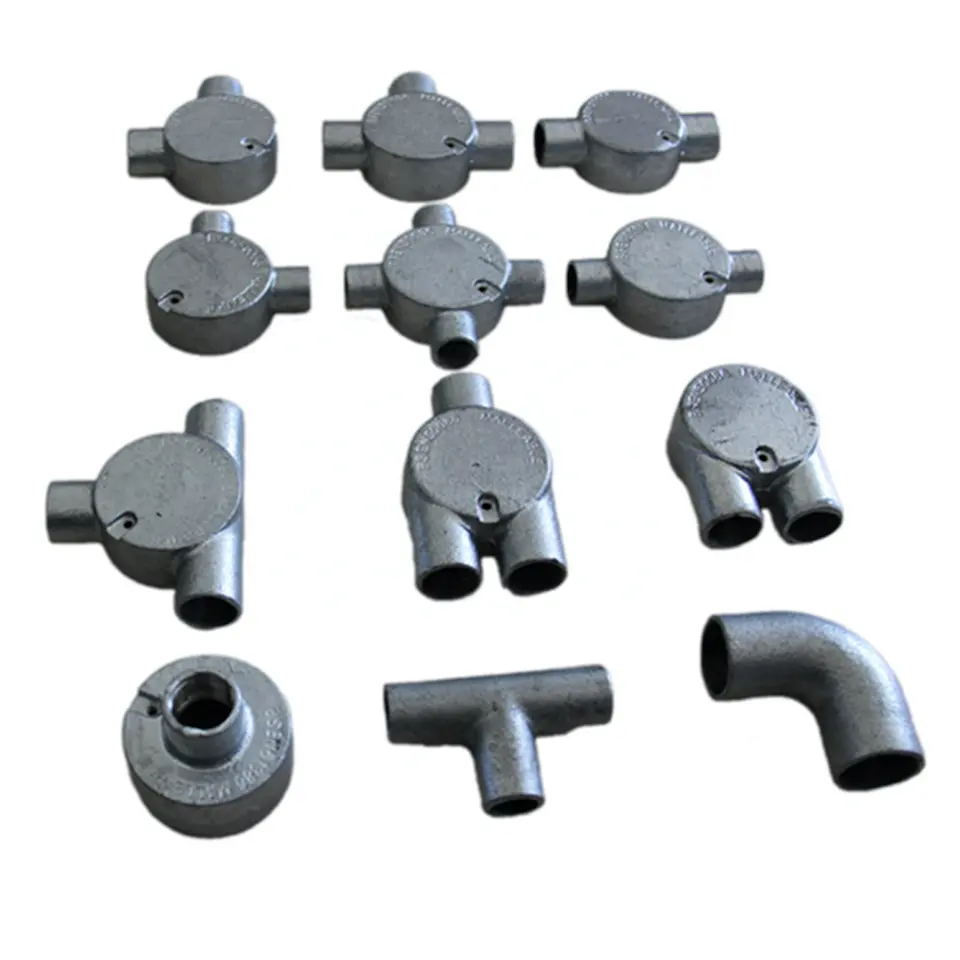

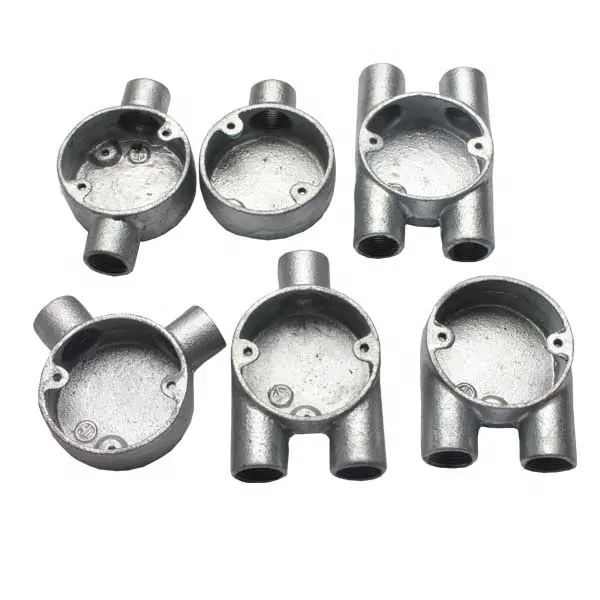

BS4568 conduit systems come with a range of fittings and accessories such as couplings,gi conduit bends, malleable iron junction boxes, and gi conduit couplings, all designed to facilitate the installation and routing of electrical wires and cables.
Applications:
BS Electrical Conduit 20mm 25mm Rigid Conduit Class 4 GI Conduit
for Wire Protect is designed for the protection and routing of electrical wiring in
both indoor and outdoor electrical installations. It provides a
secure and organized means of housing electrical cables, which
helps protect them from physical damage and environmental factors.
BS4568 conduit is typically installed using appropriate fittings
and accessories, and it can be fixed to walls, ceilings, or other
structural elements using appropriate support brackets or clips.
|
