CBA-II Reasonable Price Multifunctional Circuit Breaker Tester

Categories Electric Testing Equipment
Brand Name: Delta
Model Number: CBA-II
Certification: ISO9001
Place of Origin: Chongqing, China
MOQ: 1 set Circuit Breaker Tester
Price: USD1.0 / set
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 sets Circuit Breaker Tester / month
Delivery Time: Within 7 days after the order is confirmed
Packaging Details: Circuit Breaker Tester is packed in plywood case
Usage: For High Voltage Circuit Breaker Testing
Application Field: Electrical Industry, Circuit Breaker Manufacturer
Description: CBA-II Reasonable Price Multifunctional Circuit Breaker Tester
Features: Reasonable Price Multifunctional Circuit Breaker Tester
Measured Parameters: Time, Distance, Travel, etc.
Distance Measurement: <250mm
Time Setting Range: 0 to 6 Seconds
Number of Contacts to Be Measured: 12
Operation Mode: Manual
Powery Supply: 220V, 50Hz / 60Hz
Dimension: 53*45*63cm
Weight: 31kg
Trade Term: EXW, Fob, DDU, CNF, CIF, etc.
Delivery Lead Time: 10 Days
Shipping Method: by Express or by Air
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

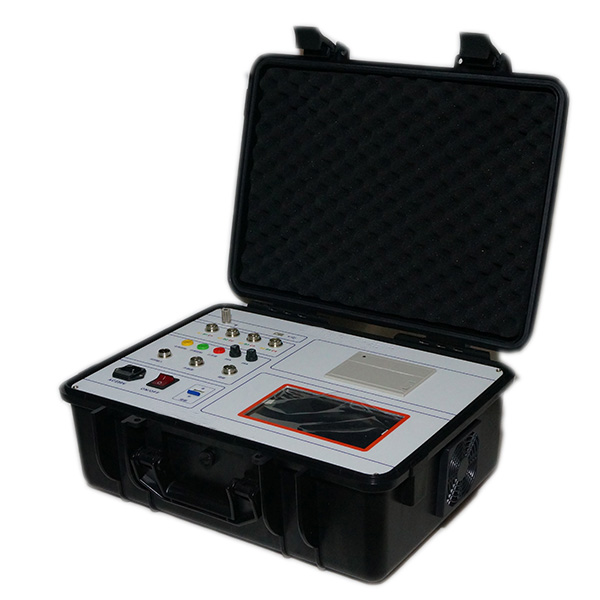

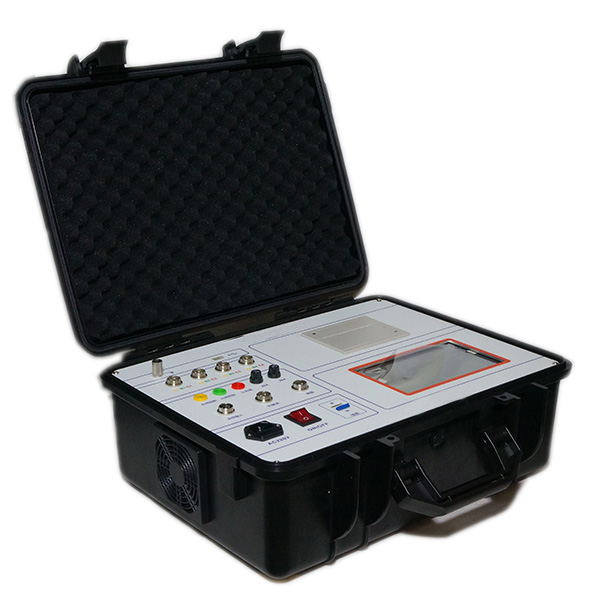

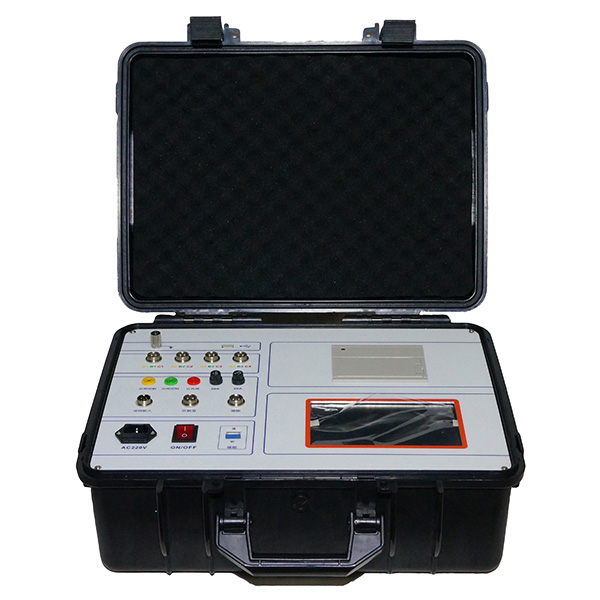

CBA-II Reasonable Price Multifunctional Circuit Breaker Tester

CBA-II Reasonable Price Multifunctional Circuit Breaker Tester


Introduction:

  • CBA-II Circuit Breaker Tester is designed for high-voltage switch testing.
  • CBA-II Circuit Breaker Tester adopts a microcontroller unit(MCU) to control the testing process.
  • CBA-II Circuit Breaker Tester is intelligent, multi-functional, accurate, stable, portable, easy to operate, etc.
  • CBA-II Circuit Breaker Tester can test the following switches: indoor or outdoor switches, vacuum switches, SF6 switches, etc.

Parameters:


No.Item NameCBA-II High Voltage Switchgear Tester
1Time measurementNumber of contacts to be measured≤12
Time setting range0 to 6 seconds
Resolution0.01ms
Error of time measured±0.5%
2Distance measurementRange<250mm
Resolution0.01mm
Error±1mm
3Internal powerOutput Voltage30V-260V error:1%
Output Current0~10A
4Operating conditionsPower supplyAC220V±10%, 50HZ/60HZ
Power consumption≤60W
Working environment temperature0~40ºC
Working environment humidity≤90%RH
5Size and weightSize of the tester46cm*34cm*20cm
Net weight7kg
Size after packing53*45*63cm
Weight of packing31kg

Functions:

Opening and closing time of 12 contacts
Re-closing time
Asynchronous of closing or opening time of three phases
Clearance between open contacts/gaps, over-travel, over-shoot and tripping back
Speed at instant of contacts touching (separating)
Max. speed of opening and closing
Average speed of opening and closing
Tripping time and amplitude
Closing resistance measurement
Display and print the speed-distance curve

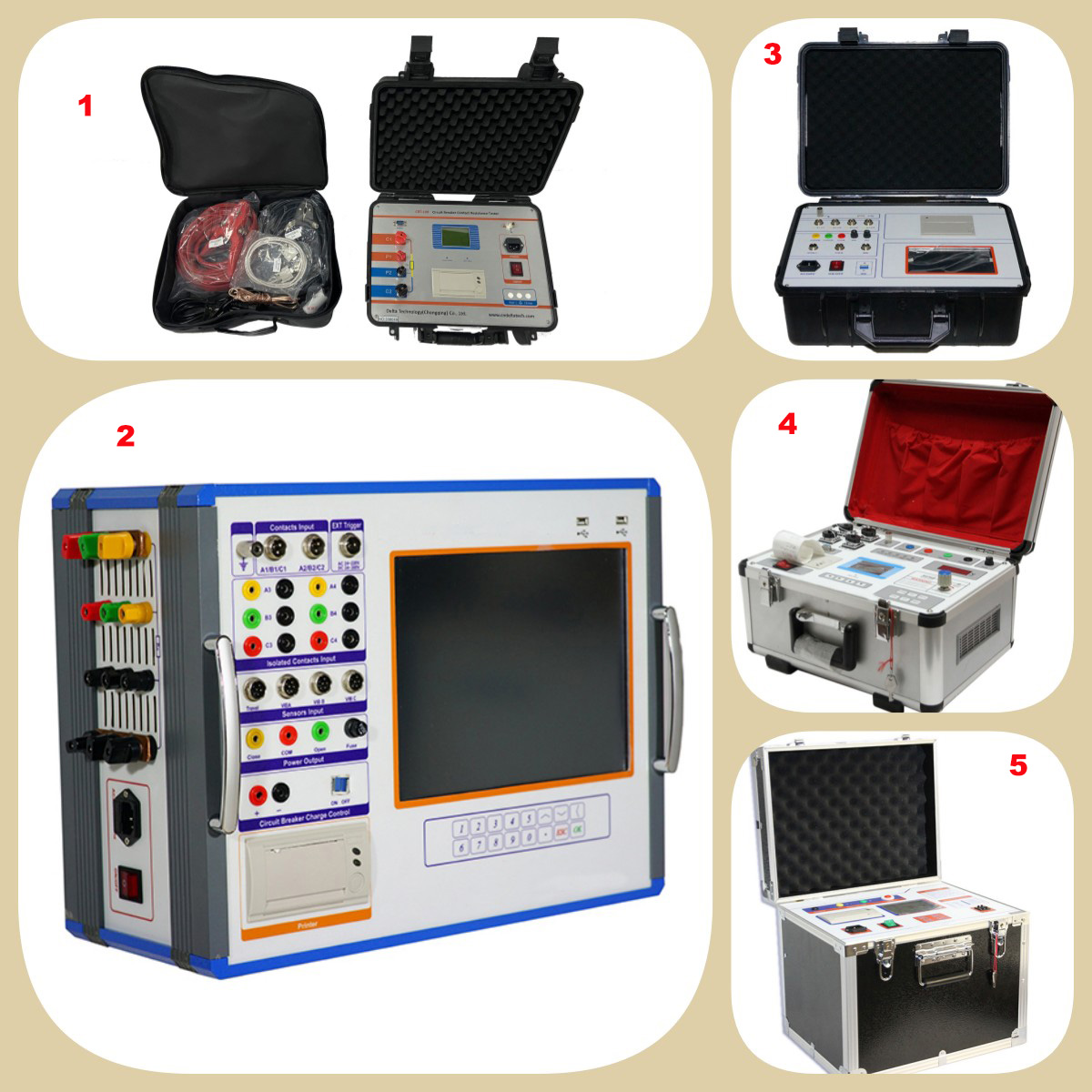

Circuit Breaker Tester Series:

1. WRT Series Circuit Breaker Contact Resistance Tester;

2. CBA-III Automatic Circuit Breaker Analyzer;

3. CBA-II Hot Sale Circuit Breaker Tester;

4. CBA-I Cheap Price Circuit Breaker Tester;

5. ZKD Circuit Breaker Vacuum Degree Tester;
