BDV-II Multifunctional ASTM D877 ASTM D1816 IEC156 Transformer Oil Test Kit

Categories Oil Testing Equipment
Brand Name: Delta
Model Number: BDV-II
Certification: ISO9001
Place of Origin: China
MOQ: 1 full set of Transformer Oil Test Kit
Price: Negotiable
Payment Terms: T/T, Western Union, L/C
Supply Ability: 100 sets each month
Delivery Time: 3-5 working days
Packaging Details: Transformer Oil Test Kit packed in veneer cases
Description: BDV-II Multifunctional ASTM D877 ASTM D1816 IEC156 Transformer Oil Test Kit
Functions: Transformer Oil Test Kit is for transformer oil breakdown voltage testing, 100kV
Test objects: Transformer oil, insulating oil, insulation oil, electric oil, dielectric oil
Features: 100kV, 8 kinds of test modes for choice, stable, reliable, low price Transformer Oil Test Kit
Test voltae: 100kV
Output frequency: 0.1Hz, 0.05Hz, 0.02Hz
Test standards: ASTM D877, ASTM D1816, IEC60156, IS6792, BS5874
Display: LCD display
Dimension: 620 mm*430mm*330mm
Weight: 41kg
Power supply: AC220V ± 10%, 50Hz/60Hz
Warranty: One year
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

BDV-II Multifunctional ASTM D877 ASTM D1816 IEC156 Transformer Oil Test Kit

ASTM D877 ASTM D1816 IEC156 Transformer Oil Test Kit

Model: BDV-II

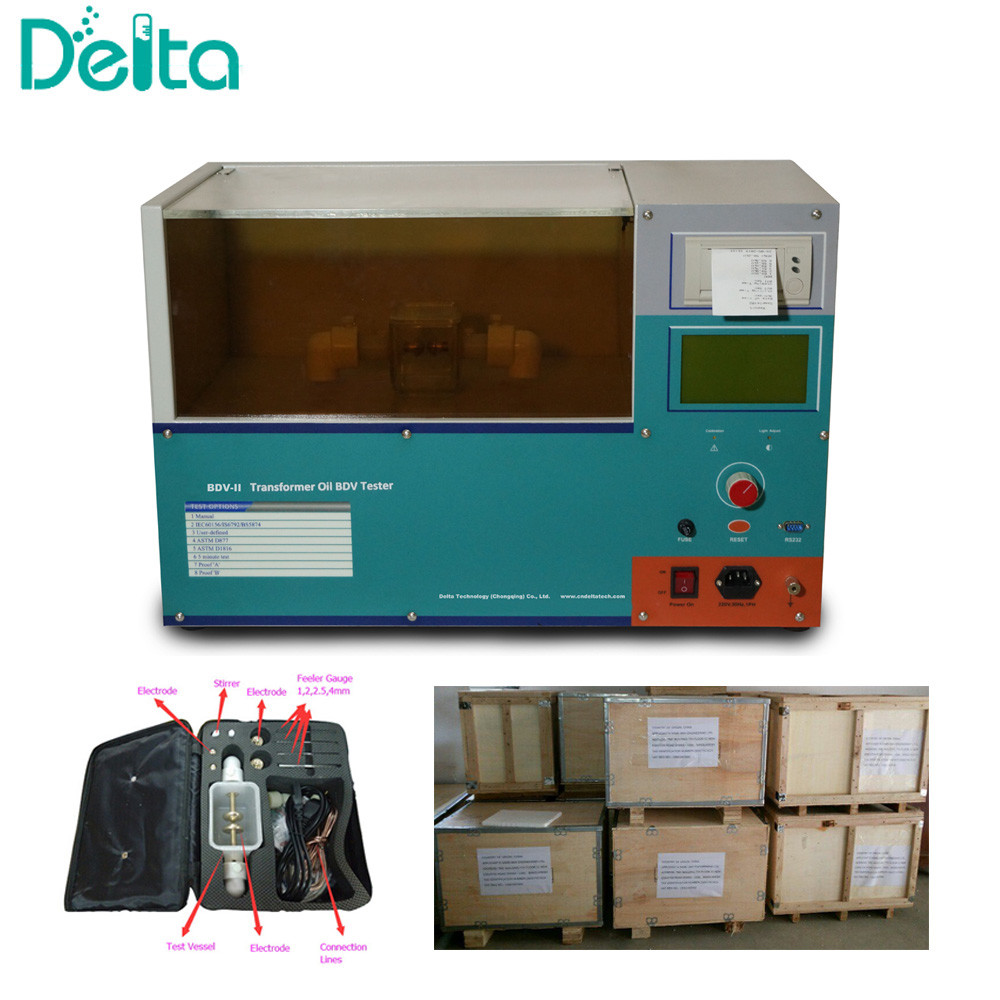

BDV-II Transformer Oil Test Kit:

  • BDV-II ASTM D877 IEC156 Transformer Oil Test Kit is developed according to the national standard IEC156 Insulating Oil Dielectric Strength Testing Method ;
  • BDV-II ASTM D877 IEC156 Transformer Oil Test Kit has large LCD display, micro-printer and can store 100 groups data;
  • BDV-II ASTM D877 IEC156 Transformer Oil Test Kit is multi-functional, stable, and easy for operation.


BDV-II Transformer Oil Test Kit Functions:

  • Breakdown test of user-defined
  • Proof test
  • IEC60156/IS6792/BS5874 test
  • ASTM D1816 standard test
  • ASTM D877 standard test
  • 5 minutes standard test
  • Manual test
  • Calibration interface for customers
  • Uploading data to PC and making word report automatically
  • Result print

BDV-II Transformer Oil Test Kit Specifications:

1Output voltageAC 0V~100KV
2Rate of voltage rise0.5kv/s±5%, 2kv/s±5%, 3kv/s±5%,5kv/s±5%
3Max test times setting for user-defined mode9
4Stir time setting for user-defined mode0~999s
5Waiting time setting for user-defined mode0~999s
6Test error3%RDG+0.3%FS
7Display256´128 LCD
8Maximum storage capacity100 groups of test data
9Power supplyAC220V±10%, 50Hz/60Hz
10Working environment0-50℃, ≤80%RH
11Size620*430mm*330mm
12Weight41kg
