7.5KW Precision Custom Roll Forming Machine Cutting PPGI Material

Categories Custom Roll Forming Machine
Brand Name: XIAMEN FUMING
Place of Origin: CHINA
MOQ: 1
Price: Negotiable
Payment Terms: T/T, L/C
Delivery Time: 70 work days
Packaging Details: Roll forming machine without outer packing, shipped by container
Roller Shaft Material: High Quality Steel
Roller High Quality SteelMaterial: 45# steel, heat treatment, hard chorme coated
Forming Speed: 8m/min
Thickness: 0.8mm to 1.2mm
Cutting: Hydraulic cutting system
Control System: PLC control system
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

7.5KW Precision Custom Roll Forming Machine Cutting PPGI Material

Product Description:

Custom Roll Forming Machine is a versatile and efficient roll forming solution for manufacturing custom-made steel products. This roll forming machine utilizes high-hardness rollers and shafts to guarantee high accuracy and strength of the formed products. It provides a cost-effective and reliable custom roll forming solution for various industries, such as automotive, construction, and furniture manufacturing. It is designed and fabricated to meet the customer's specific needs and requirements. Its adjustable rollers enable it to be tailored to the customer's product design and production capacity. All custom roll forming machines are finely tuned to ensure consistent product quality and maximum efficiency. Custom Roll Forming Machine can be used to produce high-precision steel products with complex shapes and sizes.

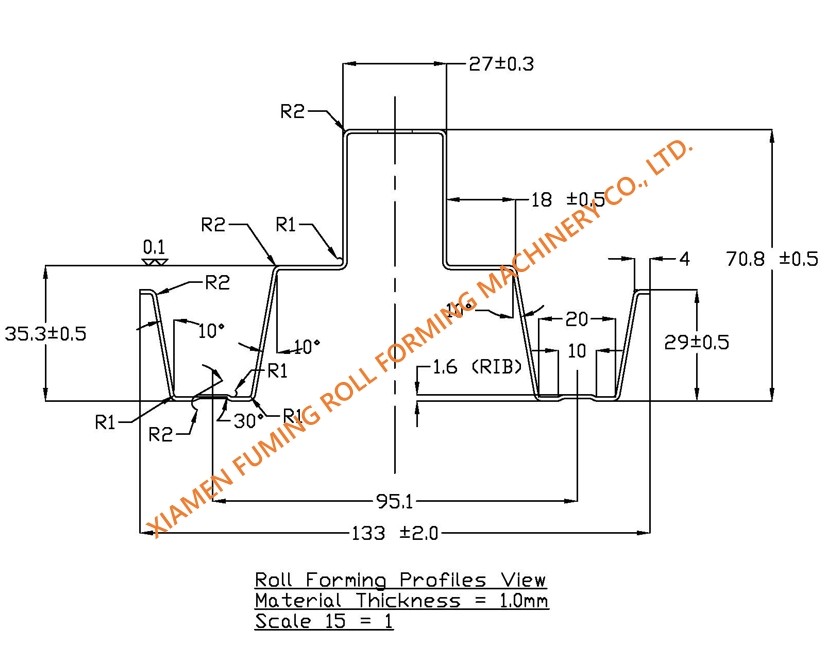

Drawing:

Features:

  • Product Name: Roll Forming Machine for W Rail Profile
  • Roller Material: 45# steel, heat treatment, hard chorme coated
  • Roller Shaft: Φ75mm
  • Forming Accuracy: ≤±2 mm
  • Speed: 15m/min
  • Features: Customized Roll Forming Machine to make different shapes

Technical Parameters:

ROLL FORMING MACHINE FOR YX70.8-133 W RAIL PROFILE
Material Specification
Thickness0.8mm to 1.2mm
MaterialGI, PPGI
Yield strength235MPa
Machine Components
1.5Ton*300mm Simple Decoiler
Load capacityMax.1.5Tons
Coil inner-diameter400-580mm
Coil outer-diameterMax.1600mm
Coil widthMax.300mm
Roll Forming Machine
Driving systemGear/sprocket
Forming station8 stations
Roller material45# steel, heat treatment, hard chorme coated
Shafts DiameterΦ75mm
Main motor7.5KW, frequency speed control
Line speed of rollformerApprox. 15m/min
Hydraulic Post Punhing and Post Cutting Device
Cutting typeSlug breaker
Quantity of punching mouldsTwo sets
Punching mould materialCr12, heat treatment
Cutter materialCr12, heat treatment
Hydraulci pump motor3KW
PLC Control System
FunctionControl quantity and cutting length automatically
PLCSiemens
Touch screenSiemens
InverterDelta
EncoderOmron
Cut-to-length tolerance≤±2 mm or customized
Control Voltage24V
Product Rack3 meters×2

Applications:

XIAMEN FUMING's Custom Roll Forming Machine is designed for customers who want to produce different shapes with high accuracy. With high hardness, the custom roll forming machine is reliable and durable.

This custom roll forming machine is perfect for producing sheet metal components with precision. It is equipped with the latest technology, allowing for superior accuracy and stability. The roll forming machine can be used in a variety of industries, such as automotive, aviation, construction, and more. With its high quality steel material, it ensures accuracy and stability for long-term use.


Support and Services:

Technical Support and Service for Our Machines

We provide comprehensive technical support and service for our machines. Our team of experienced engineers and technicians can help you achieve optimal usage of the machine and maximize its performance.

  • We provide professional installation and commissioning services.
  • We provide remote and on-site technical support.
  • We provide troubleshooting services and respond to customer inquiries.
  • We provide preventive maintenance services to keep the machine running smoothly.
  • We provide spare parts supply and repair services.
  • We provide training and technical guidance.

If you have any questions or need technical support for our machines, please don't hesitate to contact us. We are here to help you.

FAQ:

Q 1: How can customers be assured that XIAMEN FUMING will deliver qualified roll forming machines?

A 1: Customers can send their technician or entrust a third party to XIAMEN FUMING’s factory to do machine inspection before delivery.

XIAMEN FUMING can send their engineers to the buyer’s factory for machine installation and commissioning.

Our roll forming machine is guaranteed for one year in correct operation and maintenance.


Q 2: How does the customer install the machine when it arrives?

A 2: Our engineers will go to your factory for machine installation and commissioning once you get your machine ready(including electricity, testing material, hydraulic oil, auxiliary staff, transport and lifting device, etc.), they will instruct your technician how to operate the machine. Online supports including video call will be provided if our engineers cannot visit your place because of pandemic.


Q 3: Does XIAMEN FUMING provide customized roll forming machines?

A 3: Yes, we design and make roll forming machines according to the latest market trend and the specific requirements suggested by customers.
