Wine Bottle Cap Tightening Machine Olive Oil , Rotary Juice Bottle Cap Sealing Machine

Categories Cap Tightening Machine
Brand Name: ZT-PACK
Model Number: FG-4
Certification: CE,ISO,SGS,SABER
Place of Origin: CHINA
MOQ: 1set
Price: Negotiable
Payment Terms: T/T, L/C
Supply Ability: 100sets per month
Delivery Time: 30days
Packaging Details: wooden case
Product name: Rotary Aluminum Lid Capping Machine For Wine Olive Oil Juice Product
Cap size: Diameter: 15-50mm Cap height: 15-35mm
Bottle size: Length Φ40-100mm,Height 80-280mm
Capacity: 4000BPH
Application: olive oil wine bottle juice bottle all aluminum caps
Usage: Screw and twist off all aluminum caps
Capping qualified rate: ≥99%
After-sales service provided: Engineers available to service machinery overseas
Condition: New
Power: 3KW
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Wine Bottle Cap Tightening Machine Olive Oil , Rotary Juice Bottle Cap Sealing Machine

Rotary Aluminum Lid Capping Machine For Wine Olive Oil Juice Product


Description:

This machine combines bottle-in, cap-sorter, cap-elevator, capping and bottle-out altogether in one. The rotary structure , catching the lid in the certain position, stable and reliable. It does no harm to bottle and lid . High capping efficiency, high qualified rate of capping, and wide application which enjoys good competitiveness that can be compared with foreign products. It is applicable to varies size of glass and plastic bottles and caps. Its operation principle is by means of the scratching plate to cap the the lid when the bottle rotaryed. The whole machine is controlled by the PLC, touch screen interface and convenient operation.
Suitable for all aluminum lids, such as food and beverage, olive oil, alcohol products.


Features:

1. The rotary structure, using dedicated cap-catcher to grab lid, stable and reliable. Cap-catcher is designed inside a wear-resistant rubber, can effectively eliminate the injury lid in the capping process.
2. A inspecting sensor is installed on the bottle-dividing part. This can realize no bottle, no cap. The machine will automatically stop if the bottles are stuck. This protection structure is owned by our company.
3. the cap leader part come from the capper sorter ,catch by the capping heads to do the screw on bottles.
4. The elevating structure is electricity driven. Only one button in the touch screen can adjust the height. Fast changing mode with star wheel design , plus with the diamention marks makes changing different type of bottles easier.
5. With the feeder ,make sure all upset caps drop to the bucket. No nude orbit adopted solving the lid-stuck problem efficiently. motor capper sorter for caps diameter bigger than cap height .


Parameter setting:

1Applicable bottleDiameter: 40100mm,Height 80280mm
2Cap SpecificationDiameter : 15-50mm , Cap height: 15-35mm
3Capping Head4
4Capacity≤4000 bottles/hour
5Capping qualified rate≥99%
6Air Pressure0.60.8MPA
7Power Source380V,50HZ
8Power3KW
9External Dimension2200×1360×2400(L×W×H)mm
10Weight1600Kg

Configure:​

No .NameBrandCountryQty
1Reducer motorZiguangChina1
2Power buttonSchneiderFrance1
3Frequency inverterSchneiderFrance2
4Sensor for bottlesOPTEXJapan1
5Sensor for capsOmronJapan1
6Cap sort motorZiguangChina1

Pictures:

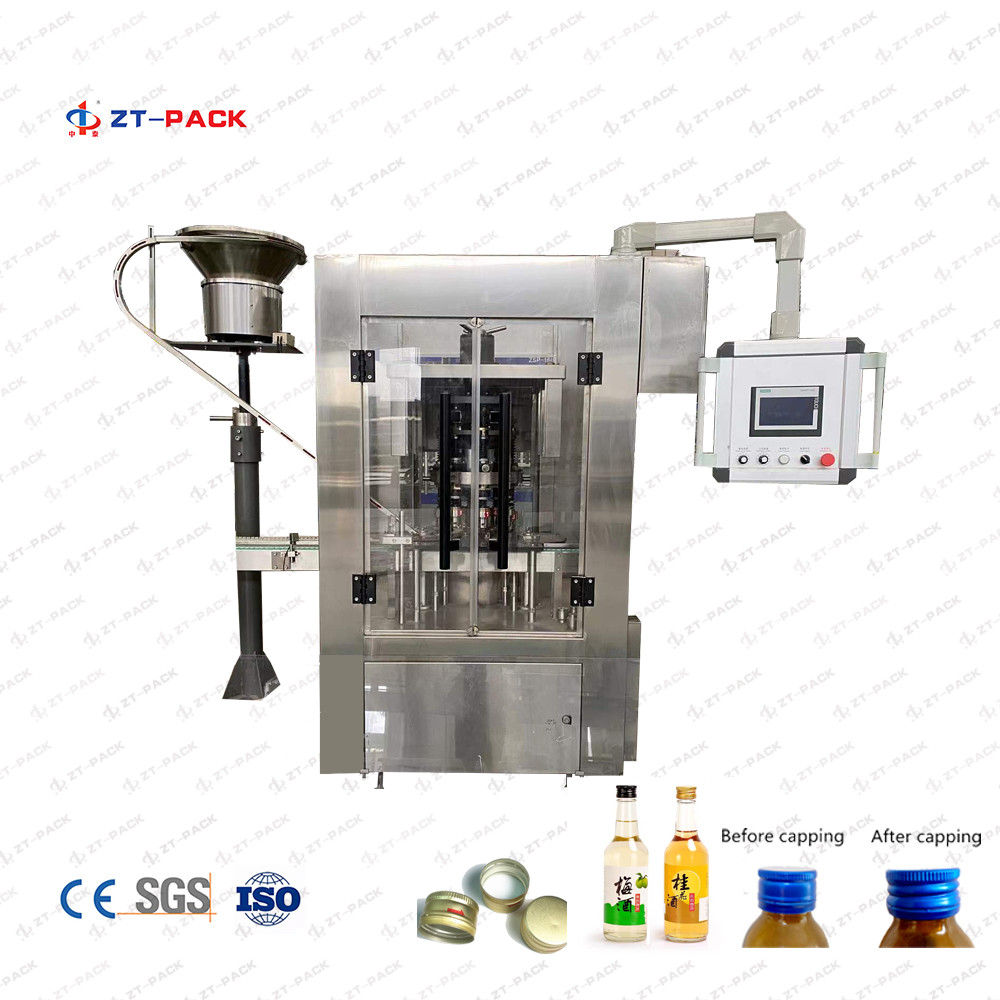

Cheap Wine Bottle Cap Tightening Machine Olive Oil , Rotary Juice Bottle Cap Sealing Machine for sale
