| Categories | PCB Router Machine |
|---|---|
| Brand Name: | HSTECH |
| Model Number: | HS-AR-7 |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
| Delivery Time: | 7~9 work days |
| Packaging Details: | Wooden package |
| Product Name: | PCBA Router Machine |
| Warranty: | 1 Year |
| Control: | Touch screen |
| Relay Brand: | Schneider |
| Optoelectronic Switch: | OMRON |
| Material: | Aluminum Alloy |
| Condition: | New |
| Signal: | SMEMA |
| Application: | Electronic Assembly |
| Color: | Silver |
| Control System: | PLC |
| OEM/ODM: | Available |
| Power Consumption: | 200W |
| Type: | Automatic |
| Company Info. |
| Shenzhen Hansome Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

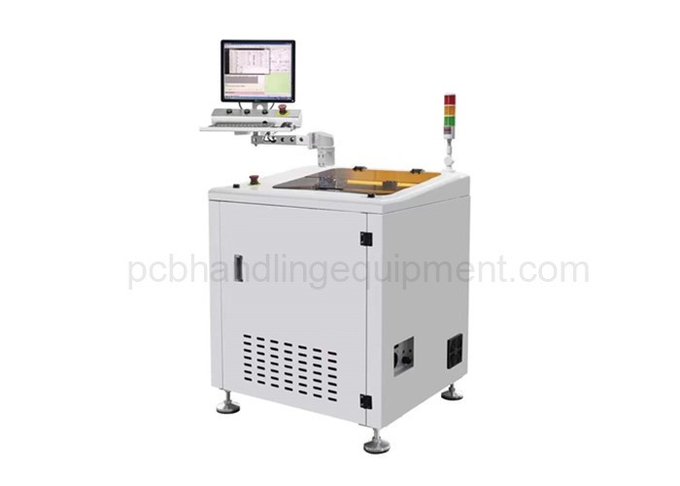

PC And CCD Visual System Customized Fixtures Offline Automatic Separating Offline PCBA Depaneling Router
Features
1, Offline automatic separating.
2, It's a mini PCBA router, suitable for small size PCB, and factory room saving requirement solution.
3, Customized fixtures.
4, PC and CCD visual system.
5, Programming with compensation and dust collection.
6, Available for max 410-510mm size PCBA.
7, Flexible for cutting two differenct type products.
8, Open platform for manual feeding and unloading, also can equipped with optional mechanical arm(robot).
| Model | AR-7 | AR-7 mini |
| Power supply | AC380V, 50/60Hz, 3KW | |
| Working size | 50x50~410x460mm(max) | 50x50~260x310mm(max) |
| Loading mode | Manual | |
| Cutting spindel/speed | 5000~60,000 rpm | |
| PCB thickness | 0.4-4mm | |
| Separating speed | 1-100mm/s | |
| Cutting accuracy | ±0.05mm | |
| Fixing type | Fixtures | |
| Programing | Visioin teaching, inline programing | |
| Milling kit | φ0.8~φ3.0 right side ratation, shank Tungsten steel | |
| Dust collection method | Bottom dust collection | |
| Dust collector | 3 phase, 380V, 1.2KW | |
| Noise | <75dB | |
| Control system | Industrial PC | |
| Spindle brand | Germany brand, Sycotec 4025 | |
| Servo motor | A5 series | |
| Motion control | 4 axis motion control board | |
| Lead screw | C5 grinding screw lead | |
| Linear guide | P rank silence guide | |
| Camera | Germany brand Imaging 40W industril camera | |
| Machine size | 700*800*930 mm | 500*650*930mm |
| Screen | 17inch | |
