| Categories | Digital Gloss Meter |
|---|---|
| Brand Name: | 3nh |
| Model Number: | HG60 |
| Certification: | CE, TUV, FCC, RoHs |
| Place of Origin: | Shenzhen China |
| MOQ: | 1 Unit |
| Price: | Please send inquiry |
| Payment Terms: | T/T |
| Supply Ability: | 1000 Units per Month |
| Delivery Time: | 1-5 Days |
| Packaging Details: | 30*20*10cm, 1kg, with a carrying bag |
| Standard: | ISO 2813,GB/T 9754,ASTM D 523,ASTM D 2457 |
| Measuring Angle: | 60° |
| Measuring Range(GU): | 300Gu |
| Battery: | 3200mAh Li-ion Battery |
| Software: | GQC6 |
| Interface: | USB/RS-232 |

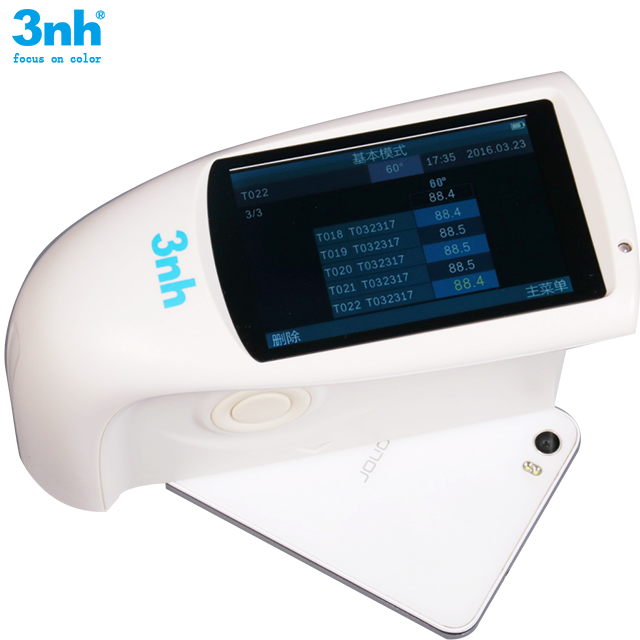

HG60 gloss meter with 60 degree 300 gu glossy range for ceramic tile
Brief Information:
HG60 gloss meter features with 60° angle, manufactured according to ISO2813 and GB/T 9754. It is also compatible with the standards of ASTM D523, ASTM D2457. NHG60 conforms to JJG696 first class gloss meter working requirement, corresponding with CIE 1931(2°) under CIE C light source.
GQC6 Software Introduction:
GQC6 software is used with 3nh gloss meter for PC connection, measurement, data management, data export, print reports, etc.
Specifications:
| HG60 60° Precise Gloss Meter | |
| Model | HG60 |
| Measure Angle | 60° Comply with standard ISO 2813,GB/T 9754,ASTM D 523,ASTM D 2457 |
| Measuring Area (mm) | 9X15 |
| Measurement Range | 0~300GU |
| Division Value | 0.1GU |
| Measurement Range Repeatability Reproducibility | 0-10GU 10-100GU 100-300GU ± 0.1GU ± 0.1GU ± 1GU ± 0.1GU ± 0.1GU ± 0.1GU |
| Measurement Standard | Conform with JJG696 first class gloss meter working requirement |
| Chromaticity Corresponding | Corresponding with CIE 1931(2°) under CIE C light source |
| Errors | ±1.2 , ± 1.2% |
| Measuring Time | 1s |
| Dimension | L*W*H : 160mm*75mm*90mm |
| Weight | 350g |
| Language | Chinese/English |
| Battery | 3200mAh Li-ion Battery, >10000 times(within 8 hours) |
| Viewing Screen | TFT 3.5 inch |
| Interface | USB/RS-232 |
| Data Save | Basic mode: 1000, Statistical Mode: 5000, Continuous mode : 5000 |
| Software | GQC6 Quality Control Software with QC report printing functions and more extended functions. |
| Operation Temperature | 0~40℃(32~104°F) |
| Storage Temperature | -20~50℃(-4~122°F) |
| Humidity | <85% relative humidity, no condensation |
| Standard Accessories | Power Adapter, USB cable, User Manual, CD (Including QC software), Calibration Plate |
| Optional Accessories | Miniature Printer |
| Note | The specifications are subject to change without notice. |
Applications:
HG60 gloss meter can test material with gloss (0-300Gu), and universally apply to paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc. for gloss measurement and gloss data transmission.
|
