Double Layer Roof Sheet Tile Roll Forming Machine 12-15m/Min New Condition

Categories Double Layer Roll Forming Machine
Brand Name: CHBEST
Model Number: YX-800/840
Certification: CE,BV,SGS
Place of Origin: China
MOQ: 1 set
Price: USD6500-USD35500/set
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20sets/month
Delivery Time: 5-60days
Packaging Details: 20GP/40GP container
Name: YX-800/840 Double Layer Roof Sheet Tile Roll Forming Making Machine Low Price
Production Capacity: 10-20m/min
Use: Roof building
Raw material: PPGI,GI,AL
Condition: New
Color: As your request
Warranty: 2 years
Voltage: As your request
Weight: 5ts
Cutting type: Hydraulic
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Double Layer Roof Sheet Tile Roll Forming Machine 12-15m/Min New Condition

YX-800/840 Double Layer Roof Sheet Tile Roll Forming Making Machine Low Price


Working flow:

Decoiler—Roll Forming Machine——Control System——Hydraulic cutter--------Receiving table


Specification:

PerformancesParameters
Suitable materialPPGI or galvanized coil
Suitable material

Raw material width:1000 and 1250mm

thickness 0.3-0.8mm

Productivity12-15m/min
Roller forming steps17 step
Roller material45# after heating treatment and with chromium
Spacer, balance bar, screwAll do chromium to ensure beautiful appearance
Diameter of active shaftΦ70mm
Main machine structure350H
Wall plate20mm
Power3KW main motor,cycloidal reducer work stable and no noise
ShearHydraulic shear, blade material CR12
Transmission1’’ gear chain
Control system

Delta PLC computer control system with Chrizi inverter to ensure precision; Winwen color touch screen.

Program is made by English, working mode: automatic and manual

Hydraulic system3kw hydraulic motor
VoltageAC380V/50HZ/3 phase or AC220-240V/60HZ/3 phase or AC220-240V/60HZ/single phase
Upgrade manual decoilerMax loading weight:5000kgs,Inner Diameter:508-610mm,max coil width:1250mm
Set off tableone pcs, 6 step roller, each is 3000mm long
Size(length*width*height)9000*1500*2500MM
Weight7500kgs
ComponentUpgrade manual decoiler-guide feeding-forming part-shear blade device--hydraulic system-PLC computer control cabinet-set off table

PS: the above are for reference; we design machines according to your needs.


Payment term:
TT, you should pay 30% as the deposit on the order day, then pay 70% before delivery when you inspect goods well in factory or by video
Warranty: 18 months, and lifelong technical support service
Installation: If you need, we will send one technician to your factory to install & testing the machine. You should assist the technician to get Visa and pay for flight tickets and local accommodation, and pay salary everyday
Package: Standard export package, water-proof package, covered with plastic film


FAQ:

Q: Are you manufacturer?

A: Yes, we are manufacturer and trading company.


Q: What kind of payment term you can do?

A: We are flexible about payment terms, please contact us for details.


Q: What info you need before you make the proposal for a roll forming machine?

A: The profile drawings, material informations, your special requirements.


Q: What I should do if I just start to know roll forming machinery?

A: Contact us immediately, we provide free consultant pre-sales service.


Q: How to visit our company:

A: 1.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.

2. Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.

3. Fly to Guangzhou aiport: By air From Guangzhou to Beijing airtpot; By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.

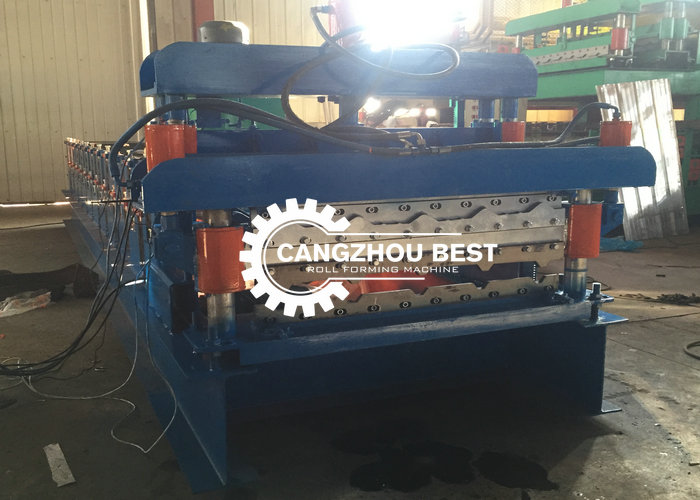

Machine photos:




Cheap Double Layer Roof Sheet Tile Roll Forming Machine 12-15m/Min New Condition for sale
