40G QSFP+ AOC Cable OM3 1m/3m/5m/15m/50m/100m Customized 40G AOC Cables for Data Center

40G QSFP+ to QSFP+ AOC Cable 1-100meters customized
AOC-40G-QSFP28-1M (or xM)


Product Details:
QSFP-QSFP-AxM series are active optical cables (AOC) that allows bi-directional 40Gbps transmission suitable for Ethernet 40GBASE-SR4 and InfiniBand QDR application and other high-throughput data network, with advantages such as high speed, high density, low latency, low power consumption and light weight.

Features

• Quad Small Form-factor Pluggable (QSFP)
• 40GBASE-SR4 compliant
• QDR, DDR, SDR (Infiniband) compliant
• Bi-directional parallel link
• 10.3125Gb/s per lane, x4 channels
• Up to 100m
• Low profile connectors
• Low power consumption
• Bundle multi-mode fiber array
• 850nm VCSEL four array
• PIN diode four array
• Hot-Pluggable
• I2C management interface
• From 0 to 70 degree case temperature
• 3.3V power supply voltage
• Electrical 38-pin connector

Applications

• Low-latency and high-speed interconnections for high performance computing(HPC)
• 40G Ethernet SR4
• Other high-throughput data transmission network
• Storage area Network(SAN)

Standard

• Compliant with IEEE 802.3ba-2010,Annex 86A for 40GBASE-SR4
• Compliant with InfiniBand EDR,FDR,QDR,DDR,SDR
• Compliant with QSFP MSA(SFF-8436)
• RoHS Compliant:lead-free

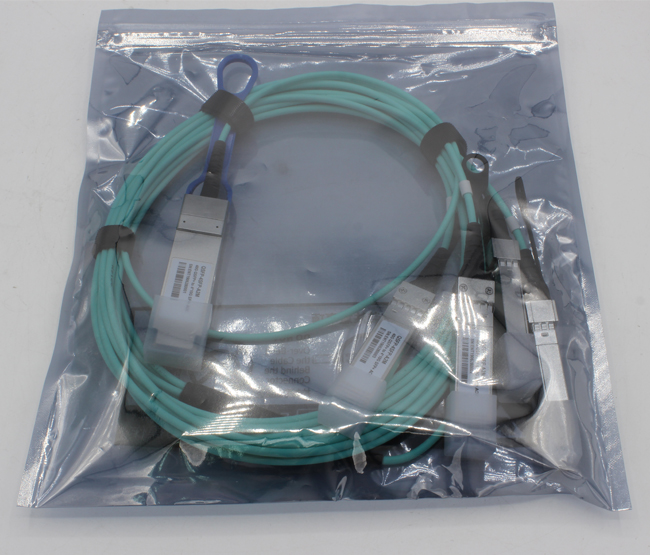

Package show:

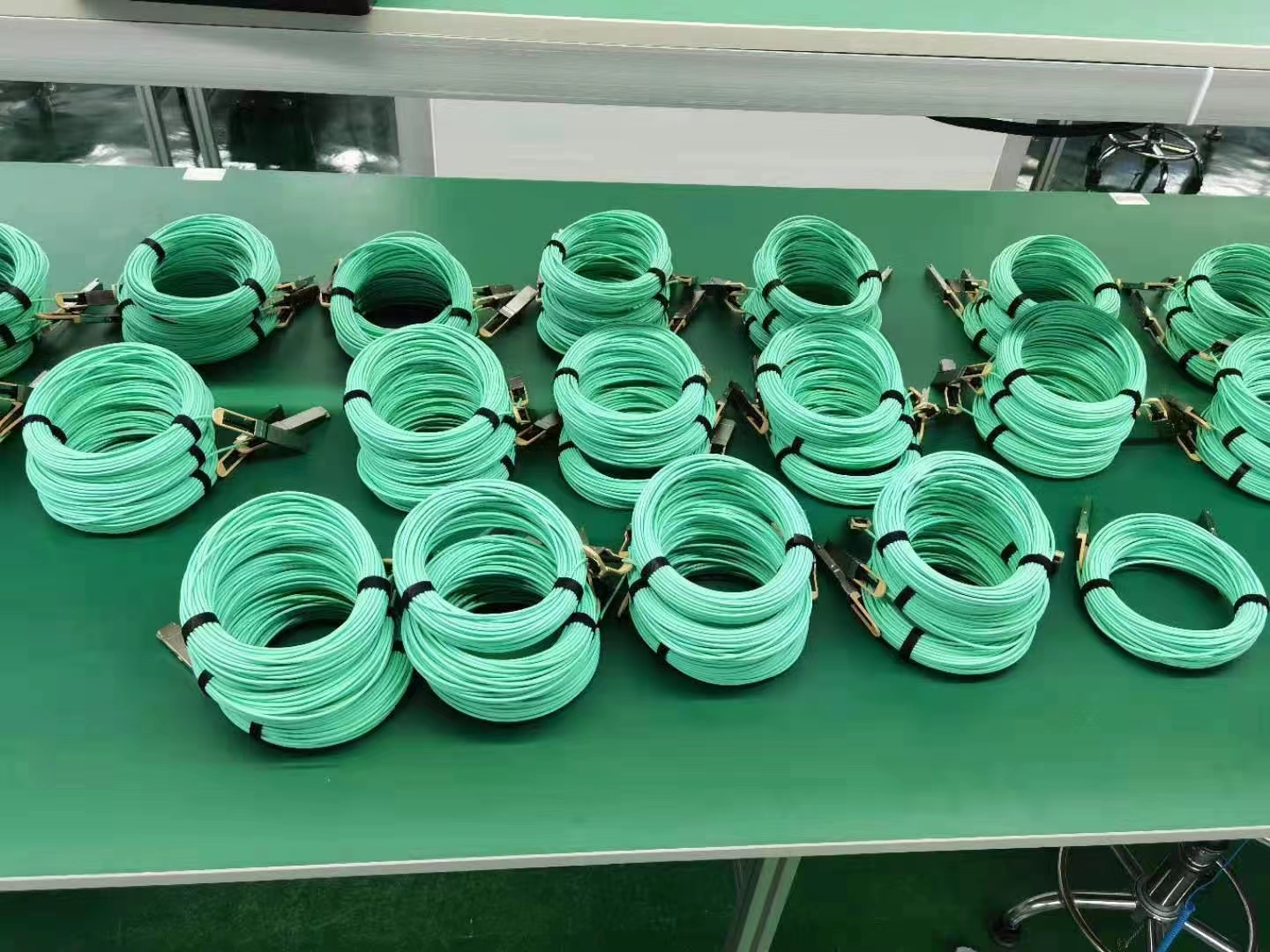

Testing Show:

Ordering informations:
