R101&TR6 Double Layer Roof Sheet Roll Forming Machine For Color Steel Profile

Categories Double Layer Roll Forming Machine
Brand Name: CHBEST
Model Number: CHBEST-1064
Certification: CE/ISO
Place of Origin: China, Hebei
MOQ: 1set
Price: USD+8000+SET
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 15sets/month
Delivery Time: 35days
Packaging Details: Standard
Name: Color Steel Profile R101&TR6 Double Layer Roof Sheet Roll Forming Machine
Color: As your require
Material: PPGI/GI
Thickness: 0.3-0.8mm
Voltage: 380V/50HZ/3PHASE
Warranty: 2 year
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

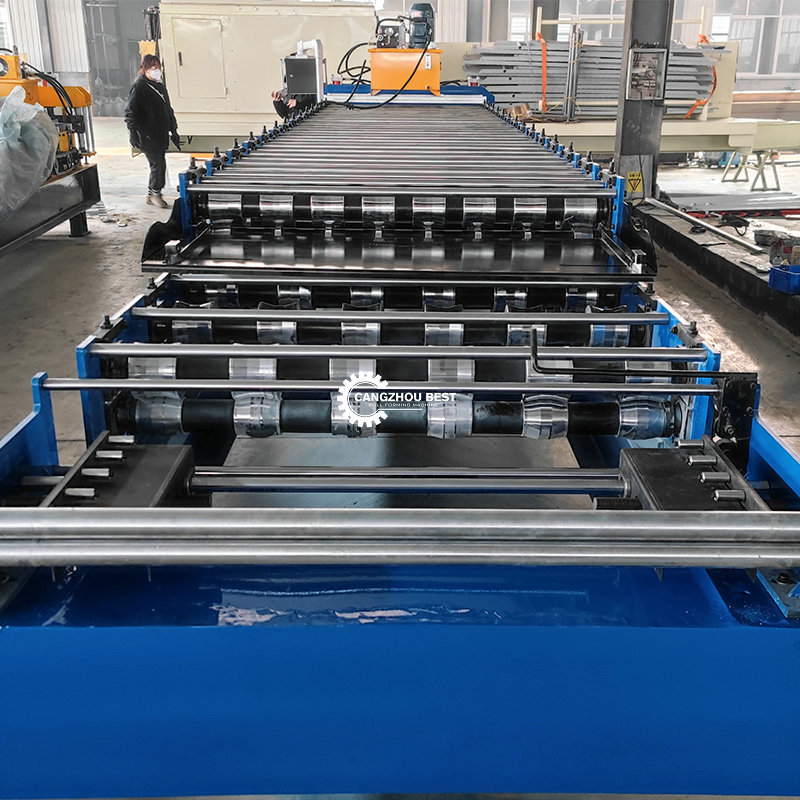

R101&TR6 Double Layer Roof Sheet Roll Forming Machine For Color Steel Profile

Color Steel Profile R101&TR6 Double Layer Roof Sheet Roll Forming Machine


We are well recognized manufacturer and supplier of Cold Roll Forming Machine which are supplied to various industries across the nation. Our products are technically advance and designed with the use of latest standard features and functions. These products are highly durable and easy to use. We guarantee superior quality which are duly tested and provided in stipulated time frame.


Machine Component


Decoiler2set
Roll Forming Machine1set
Cutting Device1set
Control System1set
Hydraulic Pump

1set

Output Table1set

Work Flow

Decoiler------feeding------roll forming------cut to length-----output table


Description:


Main Forming machine

Forming steps

14 steps

Shaft diameter

80mm

Machine stand

Middle Connecting Plate

Machine frame

350mm H Steel welded

roller material

45#

shaft material

45# steel with quenching and tempering

Work speed

standard: 10---15m/min

Transport

By Chain

Power of main machine

4kw

Voltage

380V-50HZ-3P(as required)

Machine dimension

8.5*1.65*1.5m

Machine weight

About5.5T

Machine color

Yellow and blue(as required)

Usage: In order to keep the product shape and precision, adopts welded sheet structure,

motor reducer drive, chain transmission,roller was chromed which can keep the

molding plate surface smooth and not easy to be marked when it is working

Feature : Ensure stability , precision and lifetime.


Specificaitions

Decoiler

1. Capacity: 5tons span.

2. Material coil inner diameter: 450mm-550mm

3. Max width: 1250mm


Guiding device

1. Advanced guiding device, ensure the steel roll in correct direction.

2. Two layers all equip with pre cutting, save steel roll, no waste


Control system

1). Screen:Delta
2). PLC: Delta
3). Automatic length measurement
4). Automatic quantity measurement


Hydraulic station

1).Adopt advanced hydraulic system , with cooling fan.
2).Motor:4kw
3).Hydraulic oil: 46#


After Sales Service


1. We provide a 2-year warranty for the machine .
2. During the warranty period, all non-human damaged parts will be replaced and repaired free of charge. After the warranty period
is exceeded, we will provide you with the accessories you need at the cost price.
3. Our engineers provide global door-to-door installation, commissioning and maintenance services.
4. The engineer provides 24-hour live broadcast guidance without time difference to assist in solving customer problems in time
5.So you don't worry if the machine has problem ,you don't know how to do.
