B&R 80sd100xd Stepper Motor Driver80SD100XS.C0XX-01 B&R Stepper Motor controller 80SD100XD.C04X-13

B&R 80sd100xd Stepper Motor Driver80SD100XS.C0XX-01 B&R Stepper Motor controller 80SD100XD.C04X-13

B&R 80sd100xd Stepper Motor Driver80SD100XS.C0XX-01 B&R Stepper Motor controller 80SD100XD.C04X-13
B&R 80sd100xd Stepper Motor Driver80SD100XS.C0XX-01 B&R Stepper Motor controller 80SD100XD.C04X-13
Categories INVERTER
Brand Name: B&R
Model Number: 80SD100XD.W0XX-01
Certification: CE UL cURus E360421 Servo and stepper motors - Component
Place of Origin: Austira or China as original
MOQ: 1 piece
Price: USD 500 -20000 piece as depend on booking price
Payment Terms: D/A, D/P, T/T, Western Union
Supply Ability: 5 sets 10 days
Delivery Time: 3-70 working days
Packaging Details: 100*550*35 CM
Brand: b&r stepper motor driver 80SD100XD.W0XX-01
Part number: b&r linear stepper motor linear stepper motor
Nominal speed nN [rpm: stepper motor controller 80SD100XD.W0XX-01
Maximum speed nmax [rpm: synch motor
Maximum torque Mmax [Nm: 80SD100XD.W0XX-01
Contact Now
Company Info.
Dengfeng (Zhaoqing) Trading Co., Ltd
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

B&R 80sd100xd Stepper Motor Driver80SD100XS.C0XX-01 B&R Stepper Motor controller 80SD100XD.C04X-13

B&R stepper Motor Driver:

Original 80SD100XD.W0XX-01


DESCRIPTION:


  • 256 microsteps per step
  • 2 trigger inputs
  • Enable input
  • Control for 1 stepper motor (2-phase bipolar, full bridge)
  • Motor holding brake connection
  • Automatic motor identification
  • Holding, boost and continuous current can be defined independent of one another

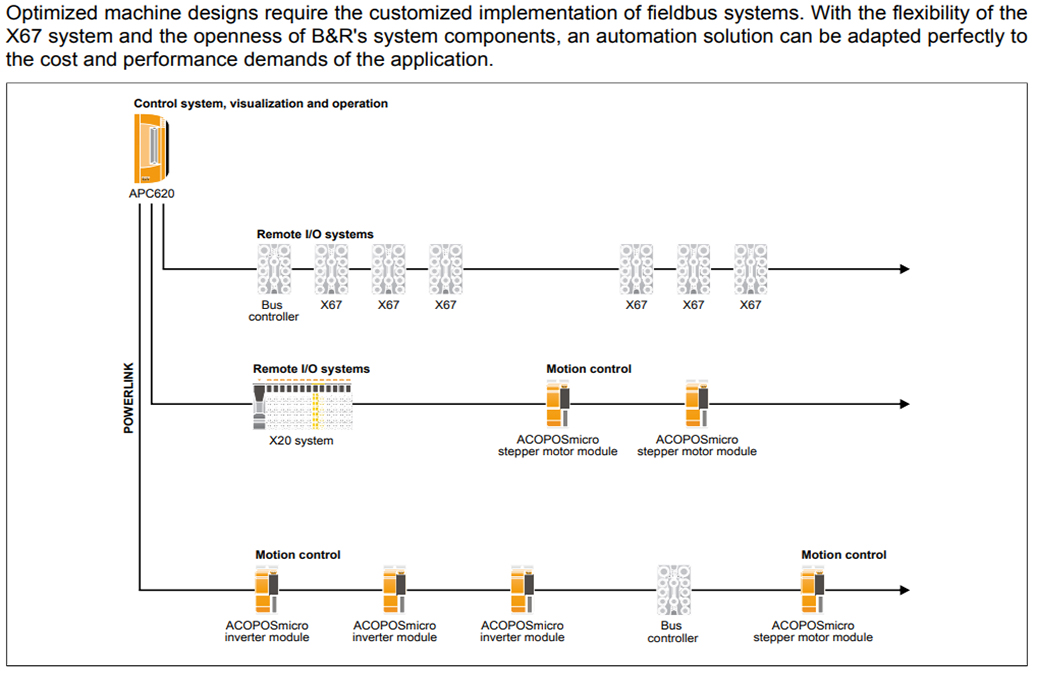

ACOPOSmicro stepper motor module, X2X Link interface, 24-64 VDC ±25% power supply, 1 motor connection, 10 A continuous current, 2 digital inputs 24 VDC, sink, can be used as trigger inputs, 1 digital output 24 VDC, 1 A, order terminal blocks separately!


Digital inputs / Trigger inputs
Quantity2
Additional functions1 input usable as trigger input
Input circuitSink
Input voltage
Nominal24 VDC
Maximum30 VDC
Input current at nominal voltageApprox. 7.5 mA
Input resistanceApprox. 3.2 kΩ
Switching threshold
Low<5 VDC
High>15 VDC
Switching delay
Rising edge[Instant recording] Typ. 3 µs
Falling edge[Instant recording] Typ. 4 µs
Electrical isolation
Input - ACOPOSYes, 500 Veff
Input - InputYes, 500 Veff
Modulation compared to ground potentialMax. ±38 V

Enable inputs
Quantity1
Nominal voltage24 VDC
Input voltage24 VDC ±25%
Input current at nominal voltageTyp. 60 mA
Input circuitSink
Switching threshold
Low<5 VDC
High>15 VDC
Switching delay at nominal input voltage
Enable 1 → 0, PWM off
Maximum500 ms (Rev. < L0: 867 ms)
Enable 0 → 1, ready for PWM
Maximum500 ms
Isolation voltage between input and bus500 Veff
Input capacitance10 nF (Rev. < L0: 100 µF)

B&R stepper Motor Drivers(Others)

80SD100XD.C011-01
80PD100XD.C033-01
80SD100PD.C044-01
80SD100XD.C04X-13
80SD100XD.C0XX-01
80SD100PD.C0XX-21
80SD100PD.W044-01
80SD100XD.W0XX-01
80SD100XS.C04X-01
80SD100XS.C04X-13
80SD100XS.C0XX-01
