| Categories | Copper Wire Mesh |
|---|---|
| Brand Name: | Hebei xingkuan |
| Model Number: | 18Meshx0.15-0.40mm 99.9% red copper wire mesh plain weave shileding screen |
| Certification: | Bv ,sgs , ce , Iso |
| Place of Origin: | Hebei ,China |
| MOQ: | 1 m2 |
| Price: | Negotiate |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000m2/ week |
| Delivery Time: | 5-8 working days |
| Packaging Details: | waterproof paper , wooden case or as per customer request ! |
| Item: | 18Meshx0.15-0.40mm 99.9% red copper wire mesh plain weave shileding screen |
| Material: | red copper (pure 99.99%) |
| Weaving type: | Plain ,Twill ,Crimped woven . |
| Wire diameter: | 0.03-1.2mm |
| Mesh: | Plain weave :6-200 mesh ,twill weave upto 250 mesh , dutch weaving is customerized as request |
| Width: | 0.914,1,1.2,1.5,1.8,2,2.5 m (can be slitted into narrowest width can be 3mm) |
| Length: | Ready stock is generally 30 meters long,cusomterized -up to 150 meters |
| Packing: | waterproof paper ,wooden case or as per request |
18Meshx0.15-0.40mm 99.9% red copper wire mesh plain weave shileding screen
1.Descriptions :
18 mesh plain weave red copper wire mesh including 18 wires and openings of 1 inch Using 0.15-0.40mm diameter wire, by plain weaving, woven 18 mesh opening for 1.0-1.2mm solid particles , it can also be used as a liquid, gas coarse filter support material or protective fabrics to use. This wire diameter and mesh with ratio reasonable, therefore weave structure is very strong. After 13 whole weaving process, so that the mesh surface flatness better.
a.materials:
it is available in three different wire materials
b. specifications :
| Mesh | wire Dia | Aperture | open area rate | open area | ||
| mm | inch | mm | inch | % | mm² | |
| 18 | 0.15 | 0.0059 | 1.2611 | 0.0496 | 79.87 | 1.5904 |
| 18 | 0.17 | 0.0066 | 1.2411 | 0.0488 | 77.35 | 1.5403 |
| 18 | 0.19 | 0.0074 | 1.2211 | 0.0480 | 74.88 | 1.4911 |
| 18 | 0.21 | 0.0082 | 1.2011 | 0.0472 | 72.45 | 1.4426 |
| 18 | 0.25 | 0.0098 | 1.1611 | 0.0457 | 67.70 | 1.3481 |
| 18 | 0.30 | 0.0118 | 1.1111 | 0.0437 | 62 | 1.2345 |
| 18 | 0.40 | 0.0157 | 1.0111 | 0.0398 | 51.34 | 1.0223 |
c.Roll width:
0.914m(3‘), 1.0m, 1.22m(4') ,etc
d.Roll length:
30m (100'),etc
2.Applications :
3.Packing:
copper wire mesh is packed in rolls,winding on a paper tube,wrapped in moisture-proof paper or plastic film,
outside wooden cases or wooden pallet.

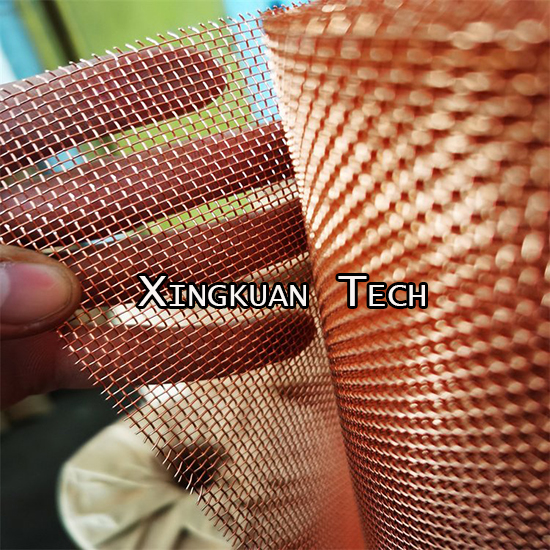

4. Pictures :
|
