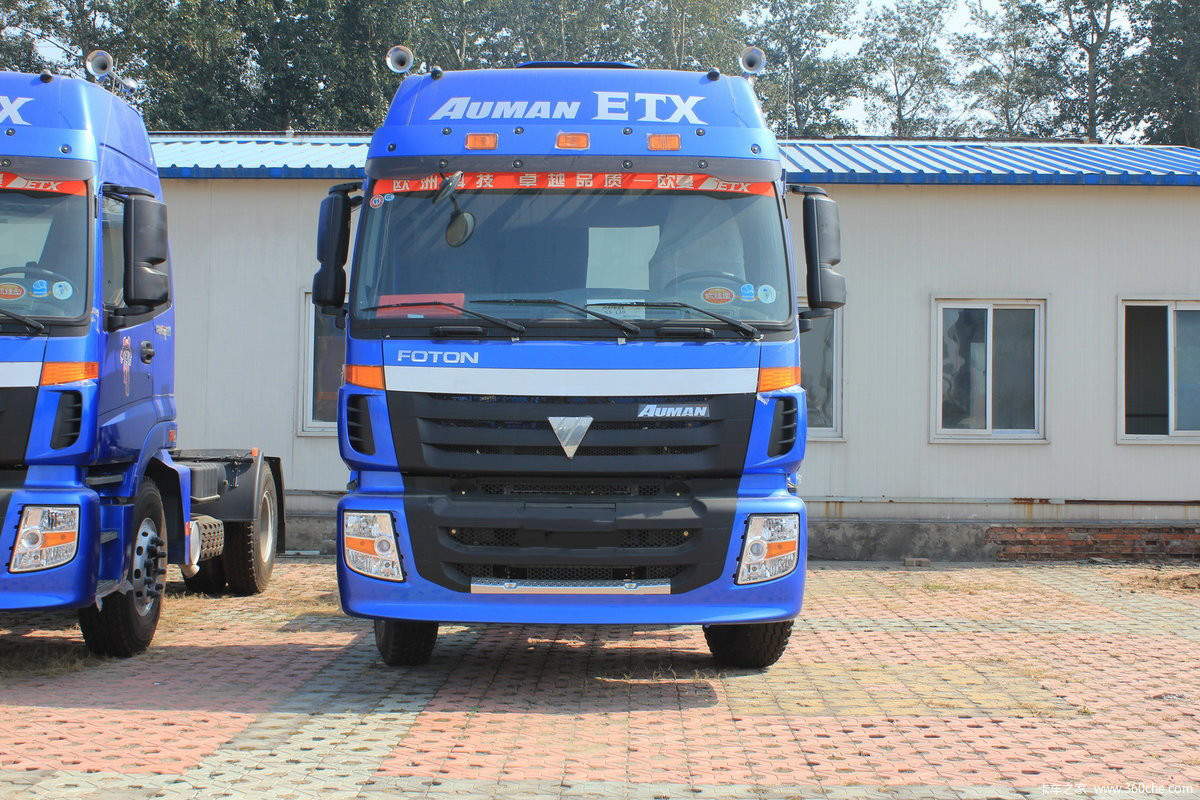

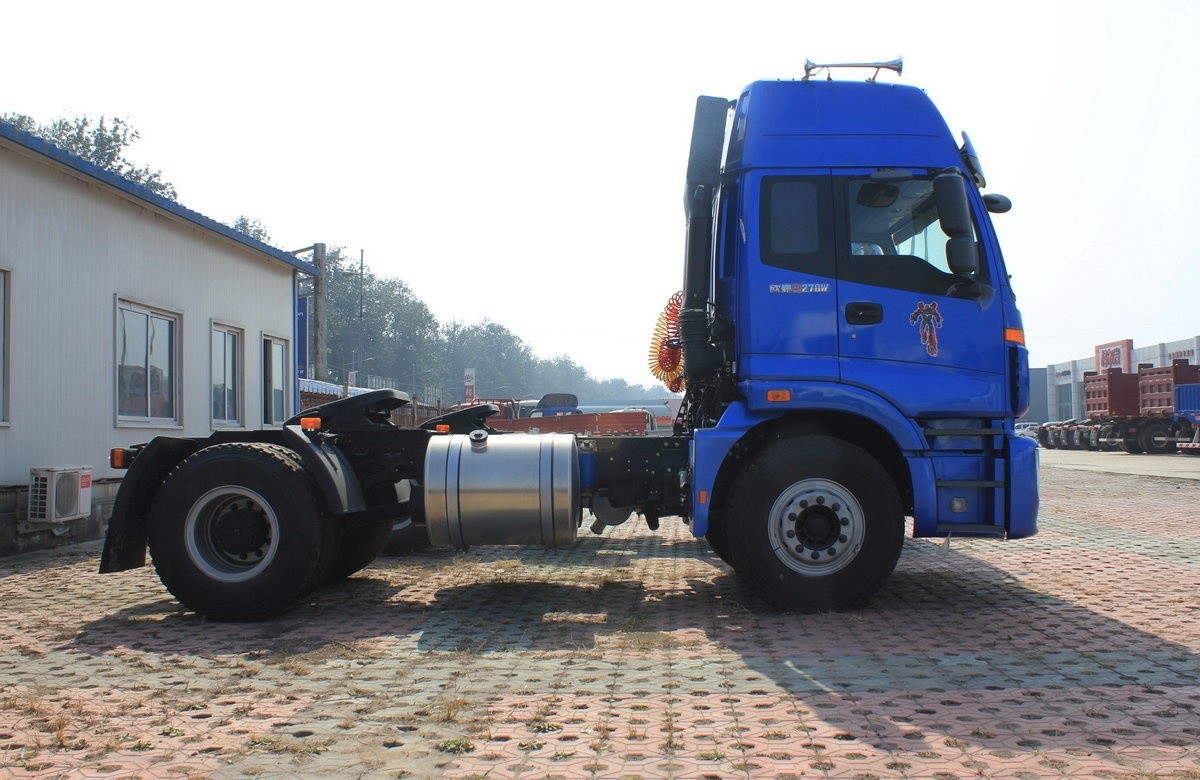

Foton Ouman ETX 9 Series Heavy Truck 270HP 4X2 Tractor Trailer(High
Speed Version)
The Foton Ouman ETX 9 Series Heavy Truck is a high-performance 4X2
tractor with a 270 hp engine. The model is a high-speed version,
designed for long-distance and high-speed hauling tasks. It adopts
4X2 drive mode with excellent acceleration and stability
performance. Foton Ouman ETX 9 Series Heavy Truck High Speed
Edition is reliable and durable, adapting to various highway and

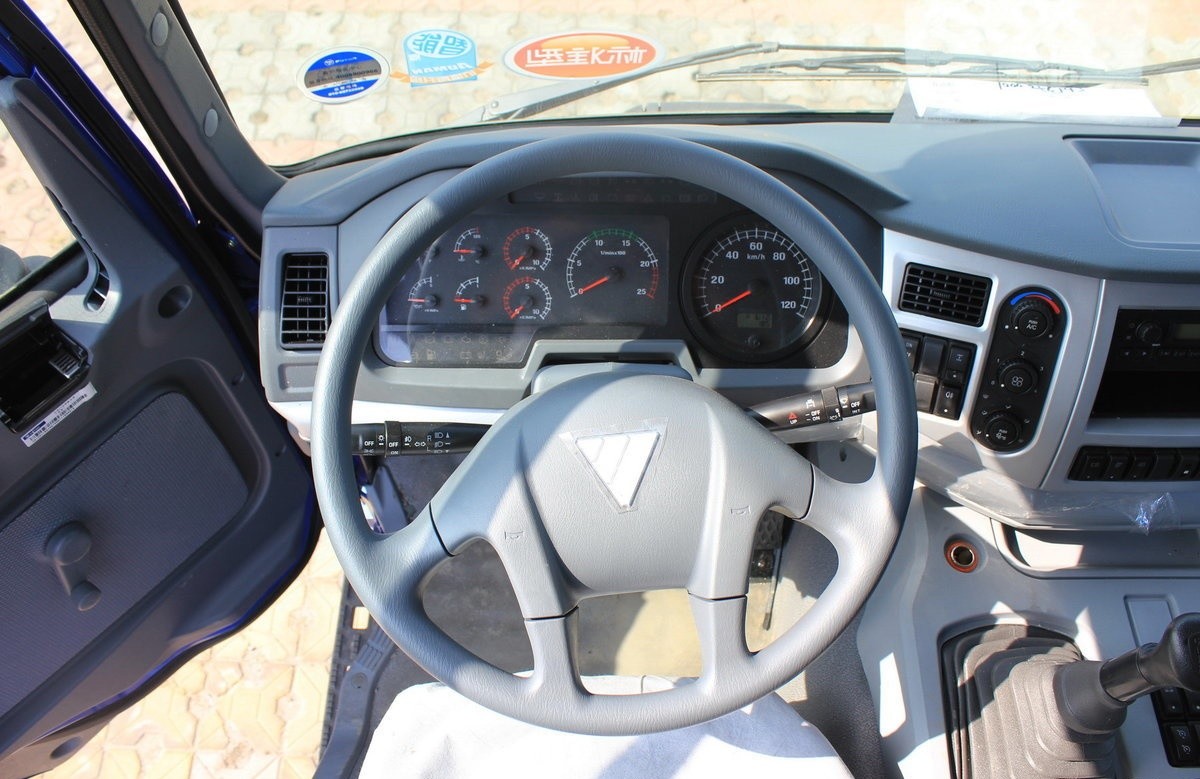

long-distance transportation environments. It is equipped with
spacious and comfortable cab and humanized interior configuration,
providing a comfortable working environment for drivers. Foton
Ouman ETX 9 Series High-speed version has proper traction and
carrying capacity, which is suitable for medium and long-distance
hauling tasks, such as cargo transportation and trailer
transportation.
Basic Information |
Driving form | 4X2 |
Wheelbase: | 3600mm |
Length | 6.28 m |
Width | 2.495 m |
Height | 3.41m |
Front wheelbase | 2020mm |
Rear Wheelbase | 1800mm |
Overall weight | 7.6 tons |
Gross mass | 18 tons |
Gross Tractor Mass | 31.6 tons |
Maximum speed | 90km/h |
Segment: | Standard |
Origin | Shandong |
Tonnage Class | Heavy Truck |
Version | High-speed version |
Engine parameters |
Engine Model | Weichai WP10.270 |
Engine Brand | Weichai |
Number of cylinders | 6 |
Fuel Type | Diesel |
Cylinder arrangement | Inline |
Displacement | 9.726L |
Emission Standard | National III |
Maximum Horsepower | 270hp |
Maximum Output Power | 199kW |
Maximum torque | 1100N-m |
Maximum torque speed | 1200-1600rpm |
Rated Speed | 2200rpm |
Cab parameters |
Cab | High roof |
Number of passengers | 3 |
Seat row | Row and a half |
Transmission parameters |
Transmission Model | Faster 9JS119TA |
Transmission Brand | Faster |
Shift mode | Manual |
Forward Gear | 9 |
Reverse gears | 1 |
Tank Material | Aluminum Alloy |
Fuel tank capacity | 350L |
Chassis Parameters |
Rear Axle Description | 469 Rear Axle (ABS) |
Rear Axle Allowable Load | 11500kg |
Speed ratio | 4.625 |
Suspension | Steel Plate Spring |
Number of Springs | 9/9+6 |
Tires |
Number of tires | 6 |
Tire Size | 11.00R20/11.00-20 |
Note: The models that do not comply with the regulations of the
People's Republic of China, such as National III/National
IV/National V models, can no longer be licensed domestically, and
are only for export, or domestic off-highway internal transit and
other unlicensed areas. This parameter is for reference only, the
actual model configuration in the store shall prevail. |





PACKING AND SHIPPING
We find the best shipping solution according to the actual order
size to reduce the transportation cost and save the transportation
cost for customers Common shipping: bulk carrier, ro-ro
ship,container ship, frame ship
(1) Waxing: carry out wax spraying treatment
(2) Packing: stabilized and fixed with steel wire to protect the
trailer during transportation.
(3) Transportation: Reliable logistics services from well-known
freight forwarding providers to make the transportation process
safe and timely.
(4) In 80% of the cases, we can provide customers with 15-20 days
delivery for regular trailers.
(5) We can ship all trucks and trailers and spare parts by all
means of transportation.
(6) For 90% of our cargoes, we will ship by sea, by container or
roll-on/roll-off/bulk/flatbed to all major continents, such as
South America, the Middle East, Africa, Oceania, etc. We can also
ship by road or by road to the neighboring countries of China, such
as Russia, Tajikistan, Kazakhstan and Mongolia.
(7) For China's neighboring countries, such as Russia, Tajikistan,
Kazakhstan, Mongolia, etc., we can ship by road or railroad
transportation trucks.
(8) For light spare parts for urgent needs, we can ship them by
international courier services, such as DHL, TNT, UPS or Fedex.
