Airbag Launching Ship Air Filled Rubber Ship Launching Marine Airbag For Boat

Categories Ship Launching Airbags
Brand Name: Hongruntong Marine
Model Number: HM-ALS034
Certification: ISO, BV, ABS, DNV, LR, SGS, CCS, RMRS
Place of Origin: China
MOQ: 1
Price: US$220-US$890
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 8300 Pcs Per Month
Delivery Time: 5-7 Work Days
Packaging Details: Wooden Pallets, Wooden Box
Product Name: Airbag Launching Ship
Reinforcement: Tyre Cord Fabric Layer
Feature: Durable Construction
Length: 3M-28M, or as Request
Diameter: 0.5M-3.0M, or as Request
Material: NBR
Layers: 5-13Ply, or as Request
Working Pressure: 0.05-0.25 MPA
Color: Black or Customized
Application: Ship Vessel Boat Launching Docking
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Airbag Launching Ship Air Filled Rubber Ship Launching Marine Airbag For Boat

Airbag Launching Ship Air Filled Rubber Ship Launching Marine Airbag for Boat


Description

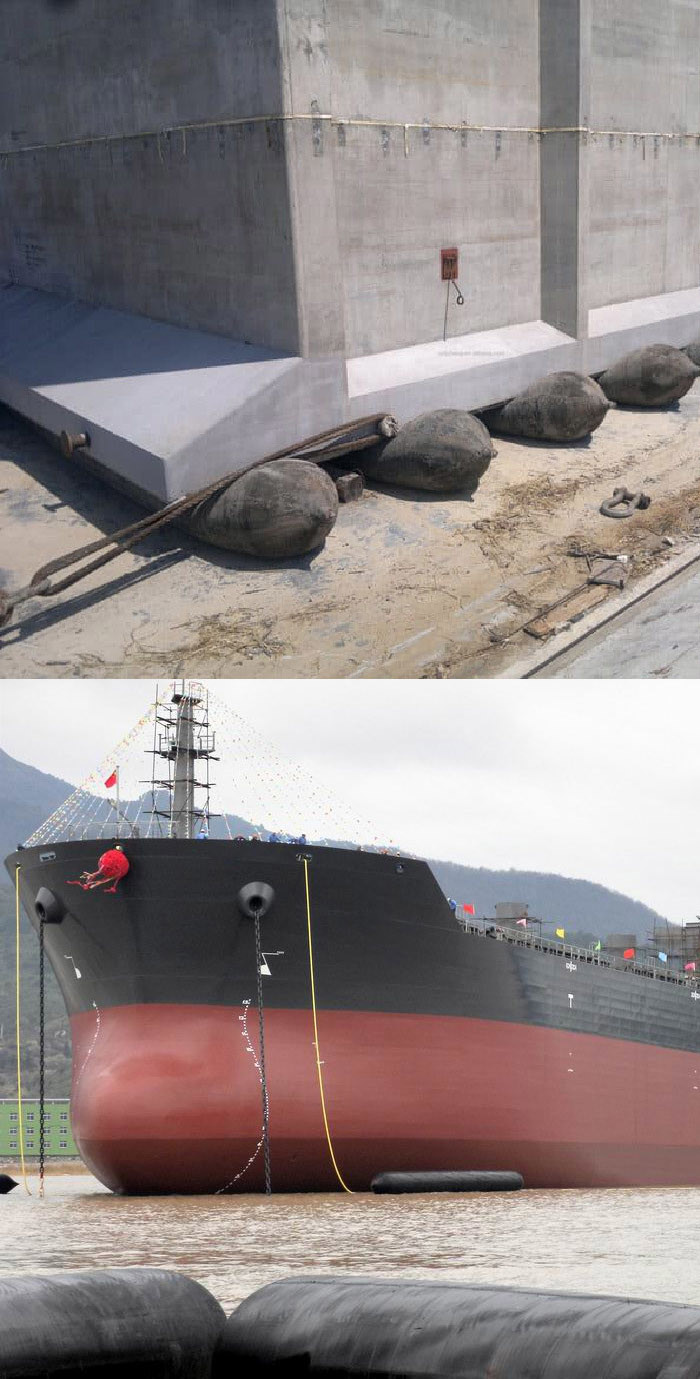

Airbag launching systems are designed to handle vessels of all sizes, from small boats to large ships. The process involves placing airbags under the hull and inflating them to lift the ship, allowing it to slide smoothly into the water. This flexibility makes the technology suitable for a wide range of shipyards, including those in remote or urban areas. The lightweight, portable design of the airbags also simplifies transportation and storage.



Specifications


ItemDescription
Place of OriginChina
Brand NameHongruntong Marine
Model NumberHM-ALS034
MaterialIndustrial-Grade Natural Rubber
Diameter0.5m-3.0m, or as Request
Length1.0m-28.0m, or as Request
Working Pressure0.05-0.25 mpa
TechnicsHigh pressure, overall winding, explosion-proof
Useship launching and docking
Thickness5-13 ply
StandardConducted by ISO14409 and GB/T1590-2006 system.
AccessoriesQ355/SS304/SS316, Pressure Gauge, Tee, Plug, Switch, Inflation Tube

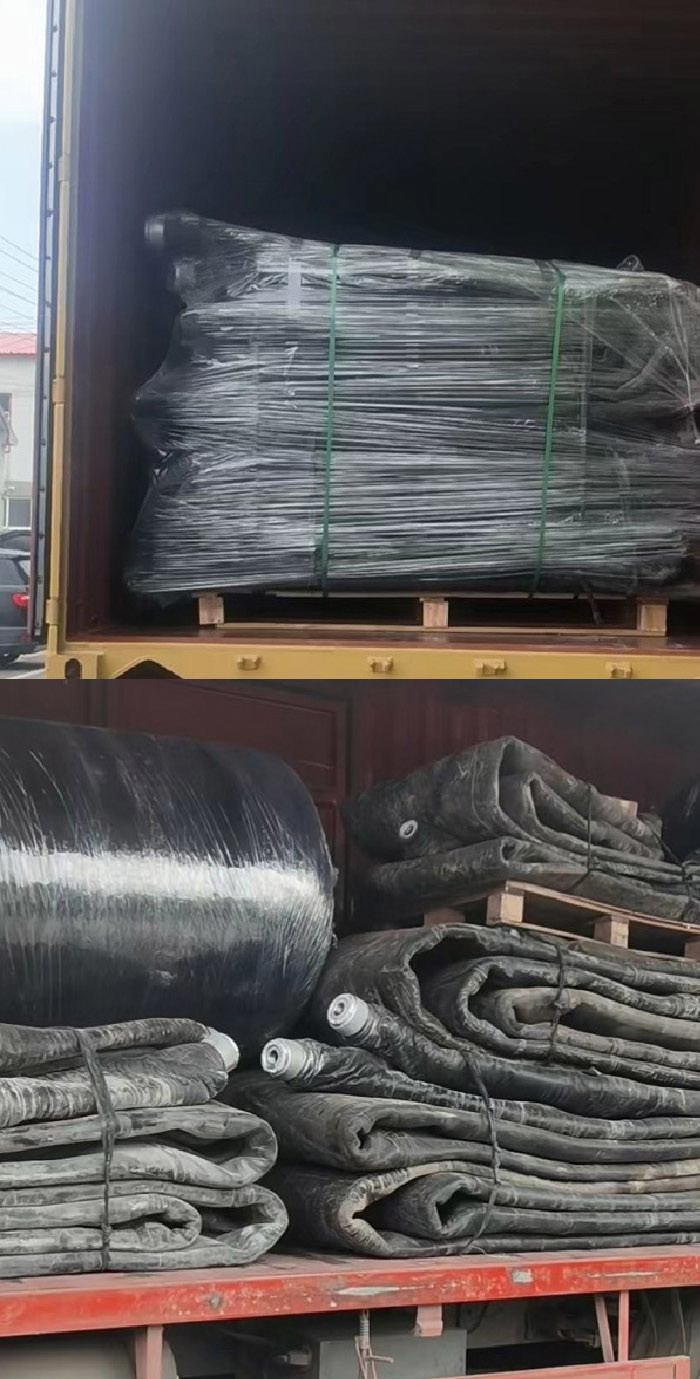

PackagingInner-Plastic Bag; Outer-Standard Wooden Pallets.
KeywordsAirbag Launching Ship
CertificatesABS, BV, KR, LR, GL, NK, RINA, DNV, RMRS
MOQ1
OEMWelcome

Diameter

Working

Pressure

Working

Height

Bearing Capacity
KN/mTon/m
D=1.0m0.14Mpa0.6m87.968.98
0.5m109.9611.22
0.4m131.9513.46
D=1.2m0.12Mpa0.7m94.259.62
0.6m113.1011.54
0.5m131.9513.46
0.4m150.8015.39
D=1.5m0.10Mpa0.9m94.259.62
0.8m109.9611.22
0.7m125.6612.82
0.6m141.3714.43
0.5m157.0816.03
D=1.8m0.09Mpa1.1m98.9610.10
1.0m113.1011.54
0.9m127.3312.98
0.8m141.3714.43
0.7m155.5115.87
0.6m169.6517.31
D=2.0m0.08Mpa1.2m100.5310.26
1.1m113.1011.54
1.0m125.6612.82
0.9m138.2314.11
0.8m150.8015.39
0.7m163.3616.67
0.6m175.9317.95
* Other size can be produced follow client's requirements.

Features


Reusable

Airbags can be used multiple times, making them cost-efficient.


Customizable

Tailored designs available for specific vessel sizes and needs.


Simple Setup

Quick and easy to install, reducing labor requirements.


Global Application

Works in a variety of climates and geographic conditions.


Applications


● Cargo ship launching

Oil tanker launching
Yacht launching
Cruise ship launching

Advantages


Comprehensive R D

Constant innovation to enhance product features and safety.


Global Customer Base

Trusted by clients worldwide for reliable products and services.


Efficient Production Processes

Streamlined operations to deliver products on time.


Competitive Pricing

Affordable solutions without compromising quality.



FAQ


1. How many airbags are needed for a launch?

The number depends on the vessel’s size, weight, and hull design.


2. Can airbags be used on uneven ground?

Yes, they are designed to adapt to different terrains.


3. Are airbags safe to use?

Yes, they are engineered for safety, with controlled inflation and launching.


4. What is the lifespan of an airbag?

With proper maintenance, they can last several years and many launches.
