| Categories | Gabion Machine |
|---|---|
| Brand Name: | Konson |
| Model Number: | KS80100-4.0 |
| Certification: | CE, ISO9001, SGS, ASTMA, EN, BS standard. |
| Place of Origin: | Jiangsu, China (Mainland) |
| MOQ: | 1 Set or as your request. |
| Price: | Discuss in mail |
| Payment Terms: | L/C,D/A,D/P,T/T,or as your request. |
| Supply Ability: | 8 Set/Sets per Month or as your request. |
| Delivery Time: | Within 35 days after the prepayment. |
| Packaging Details: | One 40feet Open Top Container, Wooden pallet or as your request. |
| Weight: | 14.5MT |
| Color: | Customer design |
| Theoretic output: | 160-500 m/hr |
| Port: | Shanghai |
| Mesh Size: | 80x100mm |
| Working width: | 4300mm |
| Wire diameter: | 1.6-4.0mm |
| PVC wire: | Available |
| After-sale service: | Engineer service overseas is available |
| Machine type: | New |
| Company Info. |
| Konson Industrial Co., Ltd. |
| View Contact Details |
| Product List |
2mx1mx1m Gabion Machine Machine Edge Winding Up Machine With CE Certification
Konson Industrial Co., ltd. is one of the earliest manufacturers of Gabion boxes, es, hexagonal wire netting, gabion retaining walls, gabion machines and gabion production lines in China.
Our machine is specially used to produce the large size and heavy duty hexagonal (galvanized, galfan & PVC wire) wire meshes for the fence and the stone gabions usage. KS series machine has several models for different sizes of meshes and the maximum netting width is up to 4300mm. We can also supply the complete production line for your whole netting workshop.
Konson Automatic Gabion Machine:
It can provide gabion mesh products for domestic companies for
various kinds of construction items.
The gabion products are commonly used to drain water course to protect and support roads, railroads, airports and residential areas, for coastal protection etc.The gabions can be build retaining walls, river bank protections, weirs, etc.
At present our company possesses four assembly lines of heavy series hexagonal wires nets.
Advantages:
A1. The new drive mode
A2. High-efficiency: theoretic output = 4.15m/min
A3. Turbine protection system (Option)
A4. Infrared ray safety (Option)
A5. Automatic stop system (Option)
A6. Automatic oil system
A7. Overload protect clutch
Patented invention: Five twist hexagonal wire mesh
The series gabion mesh machines have been designed to make gabion mesh of various widths and mesh sizes. The possible coatings are heavily galvanized and zinc. For high corrosion resistance, zinc and PVC, galfan coated wire is available.
The standard machines of production line: Main netting machine, winding machine, wire tension device, spiral coiling machine. We can also supply the complete production line, you may choose the optional machines according to your demand.

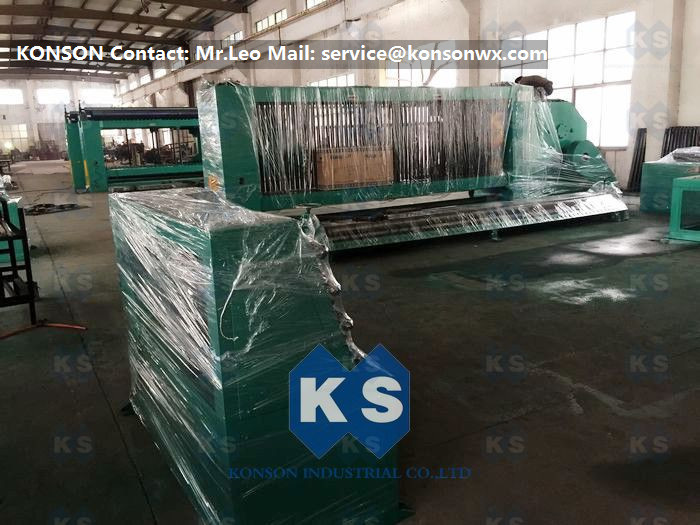

Exported machine to Russia:

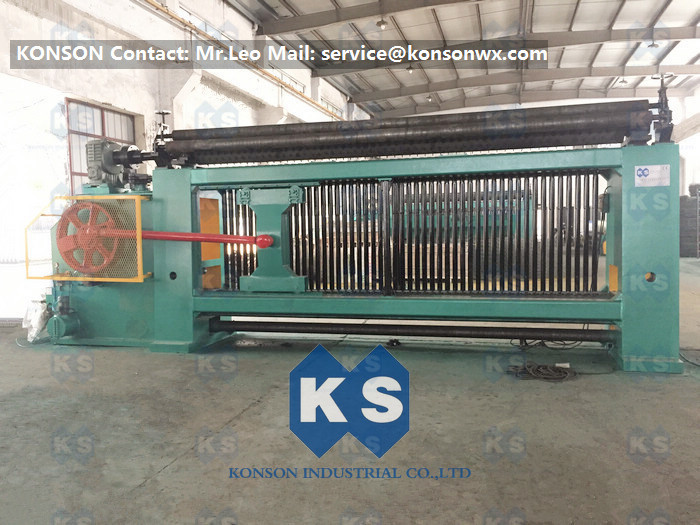

Wrapped Edge Machine 80x100mm

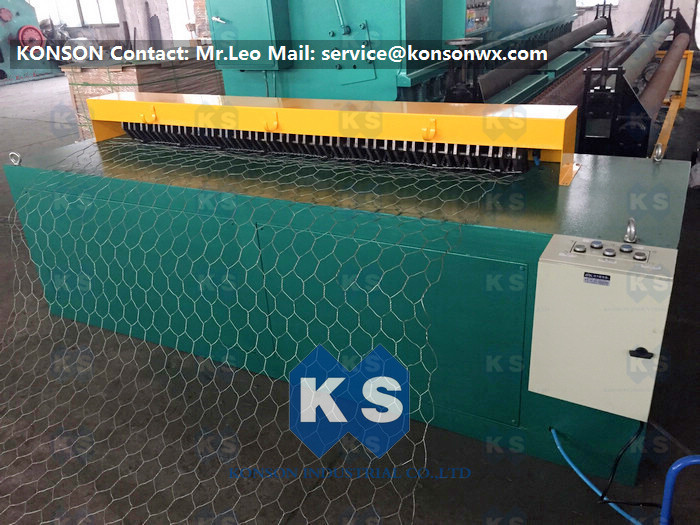

Edge Winding Up Machine
Installation and service:
We can dispatch our engineers to your factory for the installation of the machine and the training. About the detailed information of after-sales service, you can contact with our sales personnel.
Q: 1. How to transport the machine?
A: As usual, we use 40 feet open top container to load the machine and transport it by sea.
We also exported to inland country, so we use 40 feet HQ container to load the machine and transport it by railway.
Q: 2. What is the delivery time of equipment?
A: According to the quantity of your demand, for example, if you need one set machine, we will finish it in 30 days.
|
