Hot Air Furnace Laboratory Spray Dryer For Powder Production

Hot Air Furnace Laboratory Spray Dryer For Powder Production

Hot Air Furnace Laboratory Spray Dryer For Powder Production
Hot Air Furnace Laboratory Spray Dryer For Powder Production
Categories Laboratory Spray Dryer
Brand Name: Melton
Model Number: Customized
Place of Origin: Changzhou，China
Certification: CE/ISO
MOQ: 1.0 Sets
Price: $10,000.00(1 - 4 Sets) $9,000.00(5 - 9 Sets) $8,000.00(>=10 Sets)
Packaging Details: By Shipping Packed in strong export wooden case
Payment Terms: L/C, T/T
Supply Ability: 5 Set/Sets per Month
Size: Customized
Power: Customized
Capacity: 100-1000ml/h
Heating Source: Elecric,Stream+Elecric And Oil Fuel ,Gas Fuel ,Hot Air Furnace
Material: SUS304, SUS316L,Customized
Temperature Control: Digital Display
Product Name: Laboratory Spray Dryer
Voltage: 220V
Contact Now
Company Info.
Changzhou Melton Trading Co., LTD
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Hot Air Furnace Laboratory Spray Dryer For Powder Production

Hot Air Furnace Laboratory Spray Dryer For Powder Production,Easy Use,Good Quality



Products Description

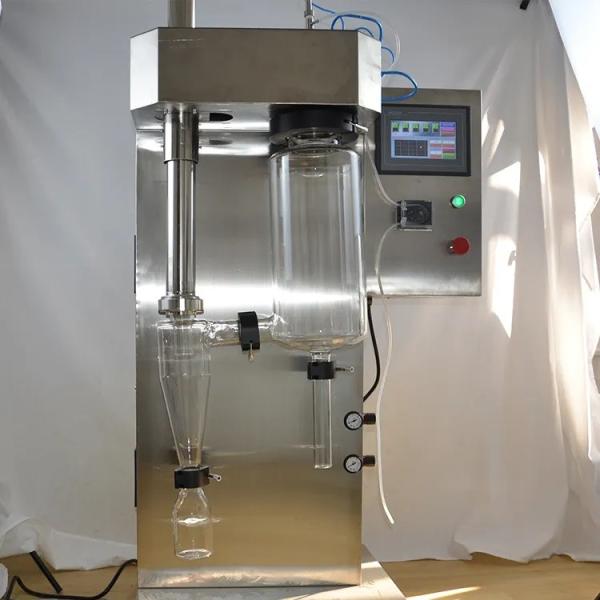

This Lab spray dryer has Stainless steel shell and arc corner design.Equip with imported Schneider electrical components,PLC control system,self-priming peristaltic pump and oil-free air compressor,is suitable for producing solid powder or particle products from liquid materials drying,such as emulsion, suspending liquid, liquor and so on. It is widely used in drying Beverages, Flavours and Colouring, Milk and Egg Products, Plant and Vegetable Extracts, Pharmaceuticals, Heat sensitive Materials, Plastics, Polymers and Resins, Perfumes, Ceramics and Advanced Materials, Soaps and Detergents, Blood, dyestuffs, Food Stuffs, Adhesives, Oxides, Textiles, Bones, Teeth and Tooth Amalgan and many others.


Product Paramenters

ModelOLT-SD8000B
Max capacity1500-2000ml/h
Temperature range of Inlet air30C -280C
Temperature range of outlet air40C -120C
Precision of temperature± 1 C
Dryer time1.0-1.5 S
Speed of squirmy pump30-2000ml/h
Consume of dryer air0-330m3 /h, max pressure: 686Pa
Consume of spray air0-4.2m3 /h, spray pressure: 2-5bar
Spray system
2 liquid nozzles with standard 1.0mm jet
Options of 0.5/0.7/1.5/2.0/2.5mm
Spray directionDownwards co-current
Power3.5KW 108V-240V
Dimensions650*500*1550 ( mm ) L * W* H



Main Features

1. High-tech nozzle,high efficiency. 2. LCD touch-screen display:inlet air temperature/outlet air temperature/pump speed/air volume/needle frequency. 3. Nozzle cleaner(needle)is set in the machine,and nozzle can be cleaned automaticaly by the needle when blocked.Needle frequency can be adjusted. 4. Shutdown protection function:the system will stop when pressing the stop botton,all parts except the fan will stop working.Heating system won’t be damaged in this way. 5. Material won’t get polluted due to the special material of the atomizing.drying and collection system. 6. Two-fluid nozzle,stainless steel,compact stucture,no accessory device. 7. PID constant temperature control,precise temperature control,precision is ±1℃. 8. Feed rate can be adjusted by the peristaltic pump,Min. samples can reach 30ml. 9. Uniform product powder,above 95% powder keep within same size range.


Detailed Images


Application

1. Various fields where the production of a free powder sample is required.

2. SP-1500 has successfully processed samples in the following areas: beverage, flavorous and colorings, milk and egg products, plant and vegetable extracts. pharmaceuticals, synthetics heat sensitive materials, plastics polymers and resins, perfumes, blood, ceramics and superconductors biochemicals, dyestuffs, soaps and detergents, foodstuffs, adhesives, oxides, textiles, bones, teeth and tooth amalgam and many others.
