AZ120 GL Galvalume Steel Coil Aluzinc Roofing Sheets 0.55mm 1250mm

Categories Galvalume Steel Coil
Brand Name: DECHO
Model Number: AZ 120
Certification: ISO 9001:2015 Certificate
Place of Origin: China
MOQ: 16 tons
Price: 650~800 USD
Payment Terms: L/C, T/T
Supply Ability: 1000 tons per day
Delivery Time: 30~45 days
Packaging Details: Horizontal package With Wooden Pallet/ Vertical packeg with Wooden pallet
Width: 1200mm
Thickness: 0.75 mm
Steel Grade: DX51D/S320GD
Coil Weight: 2tons~16tons
Packing: Horizontal package With Wooden Pallet
Coil ID.: 508mm/610mm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

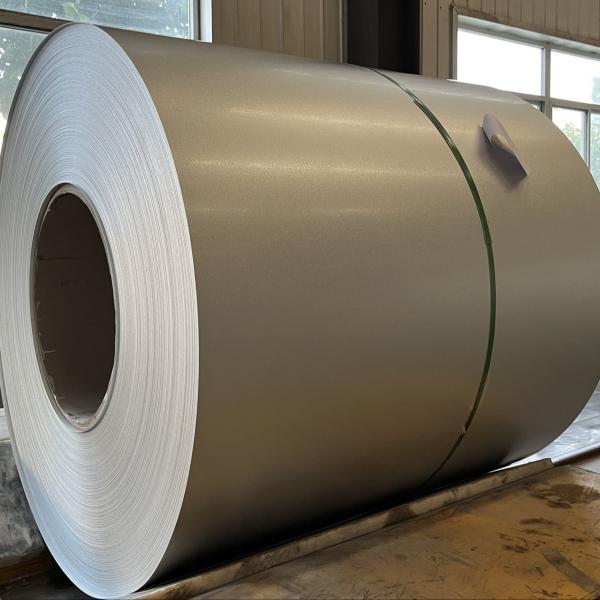

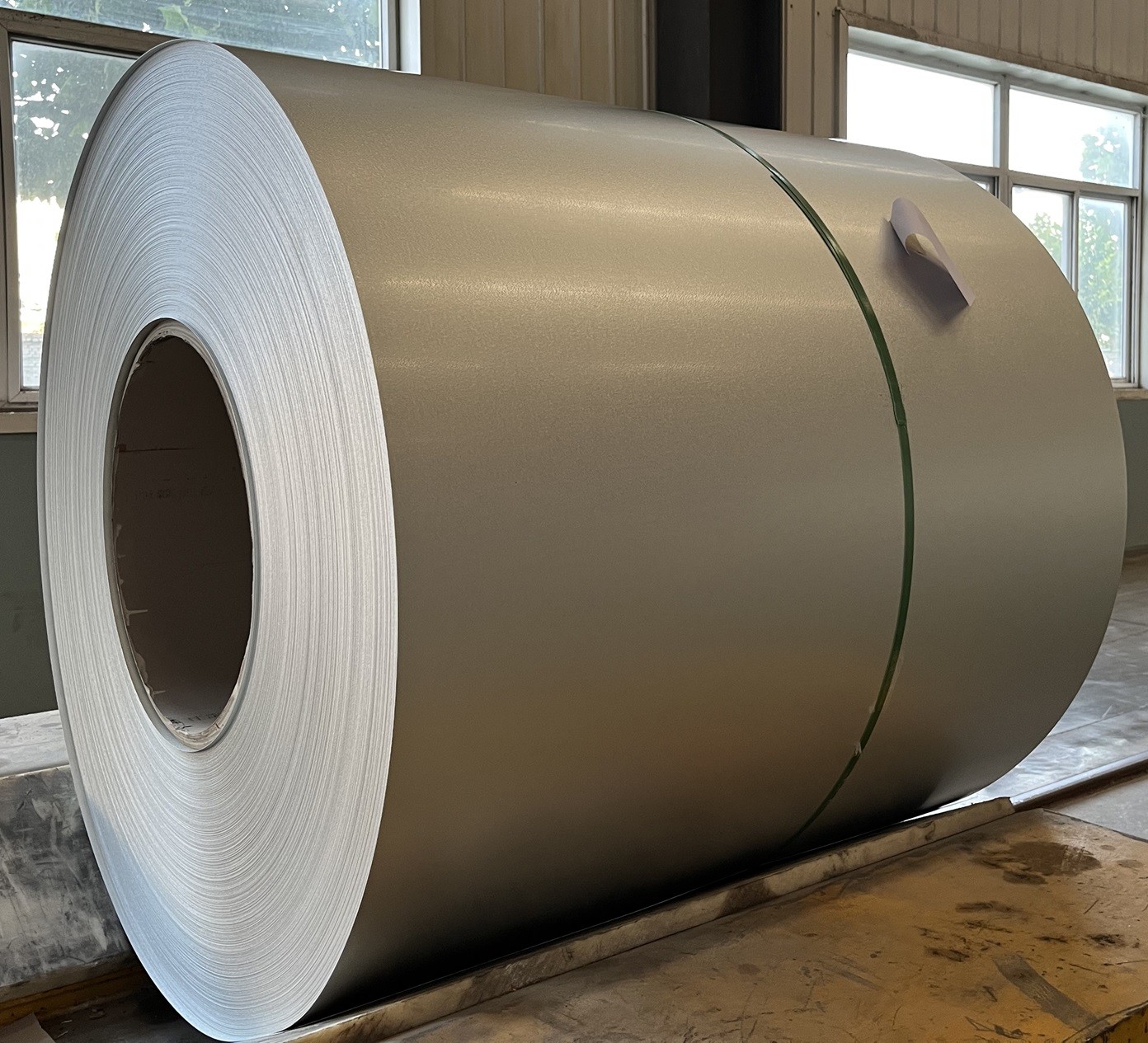

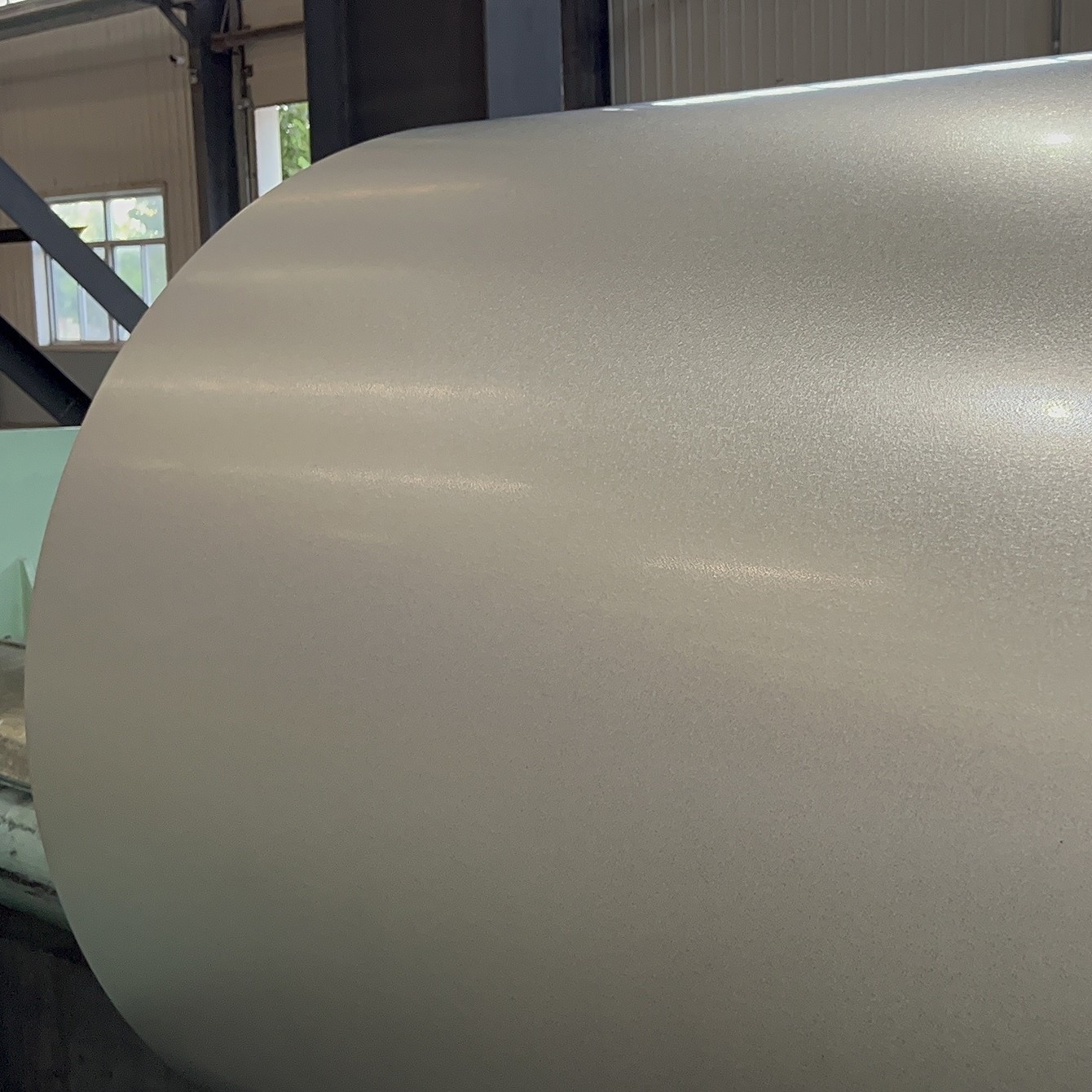

AZ120 GL Galvalume Steel Coil Aluzinc Roofing Sheets 0.55mm 1250mm

0.55mm 1250mm AZ 120 GL Galvalume 55% ALU-ZINC steel coils for metal roof tile


Galvalume Steel Coil(55% Aluminium-Zinc Alloy Coated Steel Coil)

Aluminium-zinc steel is composed of an aluminium-zinc alloy structure, consisting of 55% aluminium, 43.4% zinc and 1.6% silicon solidified at a high temperature of 600 degrees Celsius. Its entire structure consists of aluminium - iron - silicon - zinc, the formation of dense tetrameric crystals of an alloy coated steel.


Properties

1. Thermal reflectivity
Aluminium-zinc-plated steel coils have a high thermal reflectivity, which is twice that of galvanised steel, and are often used as a heat-insulating material.
2.Heat resistance
Aluminium-zinc alloy steel sheet has good heat resistance and can withstand high temperatures of more than 300 degrees Celsius, similar to the resistance to high-temperature oxidation of aluminium-zinc-plated steel coil, often aluminium-zinc-plated steel coil is used in chimney pipes, ovens, lamps and fluorescent lamp shades.
3. Corrosion resistance
The corrosion resistance of aluminium-zinc coils is mainly due to the protective function of aluminium. When the zinc is abraded, the aluminium forms a dense layer of aluminium oxide, which prevents the corrosion-resistant material from further corroding the interior
4. Economy
Since the density of 55% AL-Zn is less than that of Zn, the area of aluminium-zinc plated steel sheet is more than 3% larger than that of zinc-plated steel sheet in the case of the same weight and thickness of the plating layer.
5. Easy to paint
Aluminium-zinc plated steel coils have excellent adhesion to paint and can be painted without pre-treatment or weathering.
The paint adhesion of the gold-plated layer of aluminium-zinc-plated steel coils is excellent, so it can be applied directly to advertising boards and general-purpose boards without pretreatment such as weathering.
6. It has a gorgeous silver-white surface.

Applications

Galvalume steel's superior protective characteristics and economical price make it ideal for :

  • Residential and commercial exterior building materials
  • Decking
  • Cladding
  • Cabinetmaking
Tipps
Storage: The product should be stored in a ventilated and dry place such as indoor, warehouse, etc. It should not be placed in an acidic environment for a long time. Outdoor storage should avoid rain to avoid condensation causing oxidation and discolouration.
Transportation: Avoid external impacts, the means of transport must support the steel coils, reduce stacking, and take effective measures against rain.
Processing: Use the same lubricant for cutting as for aluminium sheets. When drilling or cutting aluminium galvanised steel sheets, loose iron filings should be removed promptly.

European Standards EN 10346:2015

StandardsSteel gradeThickness(mm)Width(mm)Coating Mass
(g/square meter)
EN 10346DX51D,
DX52D,
DX53D,
DX54D,
S220GD,
S250GD,
S280GD,
S320GD,
S350GD
S550GD
0.2 - 1.2800 - 1,250AZ100
AZ150
AZ185

America standards ASTM A792M

StandardsSteel gradeThickness(mm)Width(mm)Coating(g/square meter)
ASTM A792MCS(TYPE A, B, C)
FS(TYPE A, B)
DS
DDS
SS GRADE
33(230)
37(255)
40(275)
50(340) CLASS 1~3
80(550) CLASS 1~3
0.2 - 1.2800 - 1,250AZM100
AZM110
AZM120
AZM150
AZM165
AZM180

Japanese Standard JIS G 3321

StandardsSteel gradeThickness(mm)Width(mm)Coating(g/square meter)
JIS G 3321SGLCC
SGLCD
SGLCDD
SGLC400
SGLC440
SGLC490
SGLC570
0.2 - 1.2800 - 1,250Z06(60)
Z08(80)
Z10(100)
Z12(120)
Z14(140)
Z18(180)
Z20(200)
Z22(220)
Z25(250)
Z27(270)

Australian Standard AS1397

StandardsSteel gradeThickness(mm)Width(mm)Coating
AS1397G1~G3
G250
G300
G350
G450
G500
G550
0.2 - 1.2800 - 1,250AZ150
AZ200


Cheap AZ120 GL Galvalume Steel Coil Aluzinc Roofing Sheets 0.55mm 1250mm for sale
