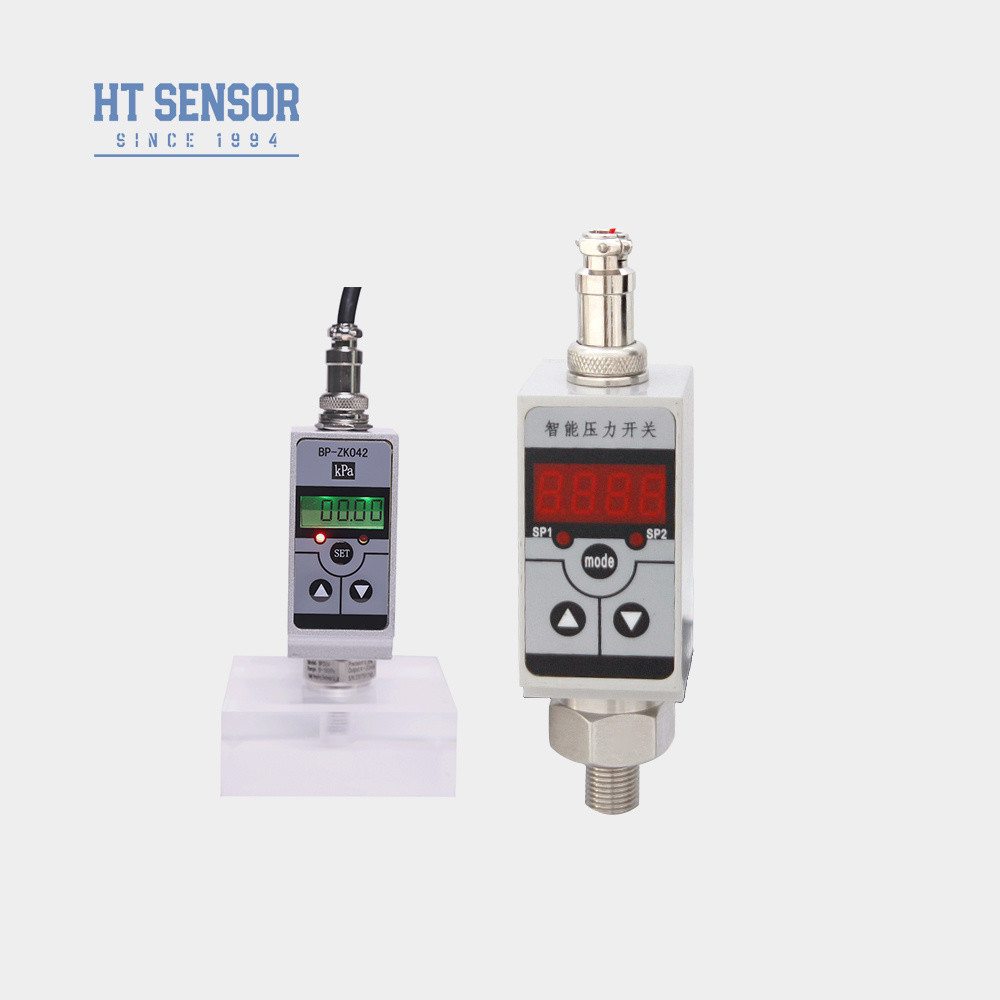

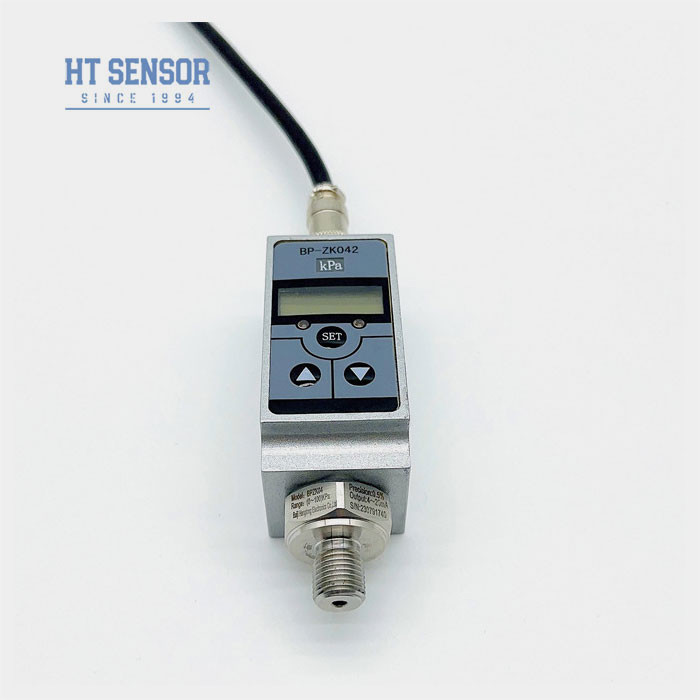

Industrial Electronic Pressure Switch Controller Within Silicon Pressure Sensor

BPZK04 Electronic Pressure Switch Controller Within Silicon Pressure Sensor

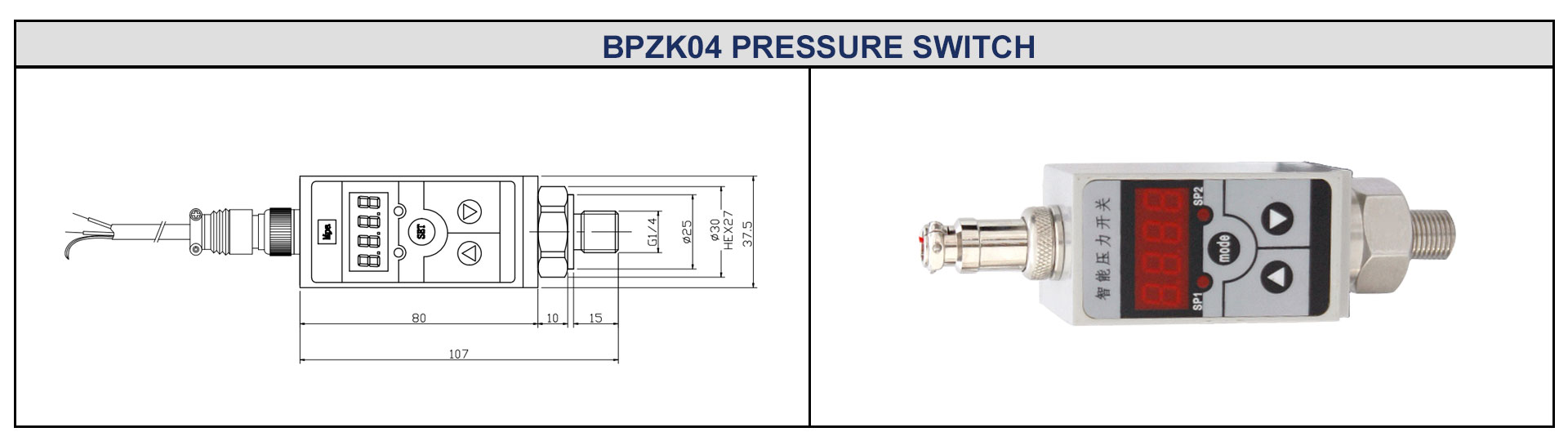

BPZK04 Electronic Pressure Switch
BPZK04 pressure switch controller within silicon pressure sensor
Introduction of Electronic Pressure Switch:
BPK-ZK04 electronic pressure switch is a set of pressure measurement, control, display, transmission in one of the full digital measurement and control products. It can be installed directly at the field pressure measuring point or on the control panel of the test bench.It allows the scene set parameters, such as zero, full scale value, contact pressure value using the buttons to adjust.


Performance Parameters of Electronic Pressure Switch:


Performance Parameters of electronic pressure switch
Measurement Range-100kPa…0kPa ~ 10kPa…100MPa
0-10KPa~2MPa(Differential Pressure)
Pressure TypeGauge Pressure, Absolute Pressure, Sealed Pressure,Differential Pressure
Overload≤ 1.5 times of the rated range
Accuracy @ 25ºC±0.25% (Typical) ±0.5% (Maximum)
Long-Term Stability±0.3%F.S/year
Zero Point Temperature Drift±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Full Scale Temperature Drift±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Compensation Temperature0-50ºC(0-10KPa, 0-20KPa) ,0-70ºC ,-10-70ºC
Operating Temperature-20ºC~80ºC
Storage Temperature-40ºC~120ºC
Housing Material1Cr18Ni9Ti
Diaphragm Material316L
Insulation Resistance100MΩ 100VDC
Relay Control1-2 channels of control or electronic switch quantity control
Contact LifeExceeds 100,000 cycles
Display Range-1999~9999
Installation Methodvertical axis installation
Explosion-proof RatingIntrinsically Safe
Protection RatingIP65
Weight~0.3kg

BPZK04 pressure switch controller within silicon pressure sensor
Product Features of Electronic Pressure Switch:

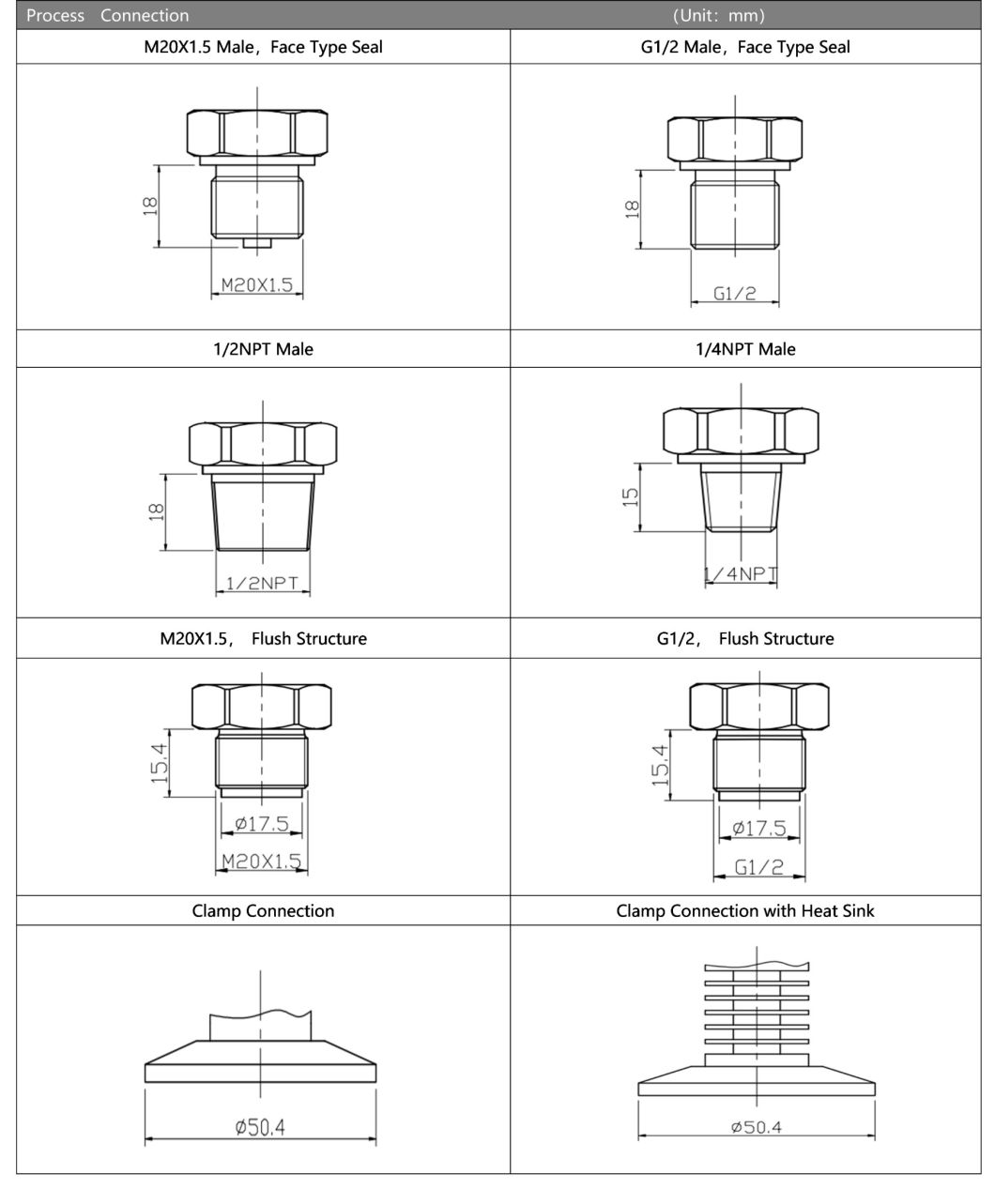

  • Stainless steel structural design with versatile pressure interface options.
  • with high-brightness LED pressure display.
  • Powered 24VDC.
  • Can provide up to two control relay outputs, with the ability to set arbitrary relay values and states for precise and reliable control.
  • High accuracy.


Applications of Electronic Pressure Switch:


Measurement and control of pressure/differential pressure of fluid media in industries such as hydropower, metallurgy, and chemical engineering, for automatic control applications.


Ordering tigs of Electronic Pressure Switch:


1. When selecting the product, please ensure that the measured medium is suitable for the contact part of the product.
2. When ordering, please indicate the power supply, precision level, number of control points, whether with RS485 interface.

3. For users who choose differential pressure measurement, attention should be paid to the relationship between the differential pressure range and the allowed overpressure and maximum pressure of the high and low pressure chamber, and ensure that it meets the requirements of field applications. In order to ensure the safe and reliable operation of the product, it is recommended to install a three-valve manifold between the measuring point and the transmitter.
4. In order to ensure the reliable operation of the product, it is recommended to install the lightning protection device on the site and ensure the reliable grounding of the product and the power supply.In case of strong vibration, instantaneous impact force, strong electromagnetic interference, radio frequency interference and other special requirements, please inform us and indicate in the order.

BPZK04 pressure switch controller within silicon pressure sensorBPZK04 pressure switch controller within silicon pressure sensorBPZK04 pressure switch controller within silicon pressure sensorBPZK04 pressure switch controller within silicon pressure sensorBPZK04 pressure switch controller within silicon pressure sensor
FQA of Electronic Pressure Switch:
1.Q: What are the features of your pressure sensor transmitters?
A: High precision, durability, and excellent performance. Customization available.
2.Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service
3.Q: What is your production capacity?
A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling
.
4.Q: What's the typical delivery period?
A: 5~8 working day for standard models. Customized products may vary.
5.Q: How are the products priced? Any discounts?
A: Competitive pricing with discounts for bulk orders or long-term partners
.
6.Q: What is the warranty of your products? And after-sales service?
A: Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.
