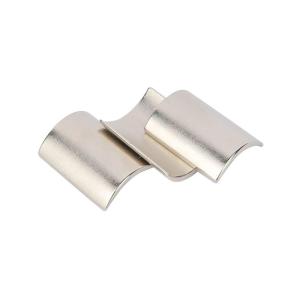

NiCuNi Coated Sintered Rare Earth Magnets Arc Segment Customized

NiCuNi Coated Sintered Rare Earth Magnets Arc Segment Customized

NiCuNi Coated Sintered Rare Earth Magnets Arc Segment Customized
NiCuNi Coated Sintered Rare Earth Magnets Arc Segment Customized
Categories Sintered Neodymium Magnet
Brand Name: UNMAG
Place of Origin: China
Packaging Details: cartons,pallets
Delivery Time: 20-25days
Certification: ISO9001, IATF16949, ISO14001
Product Name: arc segment neodymium magnets,n52 arc magnets,large arc magnets
Application: New Energy Cars,Wind Power Generation,Servo Motors,Traction Motors
Magnetic Orientation: As Customization
Shape: Block,Arc,Ring,Customized Shape Magnet
Working Temperature: 80~220°C
Material: Neodymium Iron Boron
Coating: Nickel,NiCuNi,Zinc,Epoxy Etc
Grade: N35-N52, 35M-50M, 35H-48H, 30SH-45SH...
MOQ: 100pcs
Price: As negotiation
Payment Terms: T/T L/C
Supply Ability: 100 tons per month for NdFeB magnet
Contact Now
Company Info.
Xiamen Un Magnet Co.,Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

NiCuNi Coated Sintered Rare Earth Magnets Arc Segment Customized

NiCuNi Coated Sintered Neodymium Magnet For Traction Motors Customized Magnetic Orientation

Product Description:

Sintered Neodymium Magnet is a kind of Powder Metallurgy Magnet, which is also known as Neodymium Iron Magnet. It is a kind of Sintered Permanent Magnet, with excellent magnetic properties and excellent working temperature from 80 to 220°C. The shape of the magnet could be block, arc, ring and customized shape. The coating could be Nickel, NiCuNi, Zinc, Epoxy etc. The magnet is widely applied in new energy cars, wind power generation, servo motors, traction motors and other fields. The magnetic orientation could be customized according to different application.

Features:

  • Product Name: Sintered Neodymium Magnet
  • Certification: ISO9001, IATF16949, ISO14001
  • Application: New Energy Cars,Wind Power Generation,Servo Motors,Traction Motors
  • Working Temperature: 80~220°C
  • Shape: Block, Arc, Ring, Customized Shape Magnet
  • Material: Neodymium Iron Boron
  • High Performance: Neodymium-Iron-Boride Magnet
  • Manufacture Type: Sintered Permanent Magnet
  • Magnetization Type: Sintered Permanent Magnet

Magnetic Properties of Sintered Neodymium Magnet:

GradeRemanenceCoercivityIntrinsic CoercivityMax Energy ProductWorking Temp
(Br)(HcB)(HcJ)(BH)maxTw
　　KGsTKOeKA/mKOeKA/mMGOeKJ/m³℃
N
Series		N3511.7-12.21.17-1.22≥10.9≥868≥12≥95533-36263-287≤80
N3812.2-12.51.22-1.25≥11.3≥899≥12≥95536-39287-310≤80
N4012.5-12.81.25-1.28≥11.4≥907≥12≥95538-41302-326≤80
N4212.8-13.21.28-1.32≥11.5≥915≥12≥95540-43318-342≤80
N4513.2-13.81.32-1.38≥11.6≥923≥12≥95543-46342-366≤80
N4813.8-14.21.38-1.42≥11.6≥923≥12≥95546-49366-390≤80
N5014.0-14.51.40-1.45≥10.0≥796≥11≥87648-51382-406≤60
N5214.3-14.81.43-1.48≥10.0≥796≥11≥87650-53398-422≤60
M
Series		35M11.7-12.21.17-1.22≥10.9≥868≥14≥111433-36263-287≤100
38M12.2-12.51.22-1.25≥11.3≥899≥14≥111436-39287-310≤100
40M12.5-12.81.25-1.28≥11.6≥923≥14≥111438-40302-326≤100
42M12.8-13.21.28-1.32≥12.0≥955≥14≥111440-43318-342≤100
45M13.2-13.81.32-1.38≥12.5≥955≥14≥111443-46342-366≤100
48M13.6-14.31.36-1.43≥12.9≥1027≥14≥111446-49366-390≤100
50M14.0-14.51.40-1.45≥13.0≥1033≥14≥111448-51382-406≤100
52M14.3-14.81.43-1.48≥13.0≥995≥14≥111450-52398-414≤100
H
Series		33H11.3-11.71.13-1.17≥10.6≥844≥17≥135331-34263-287≤120
35H11.7-12.21.17-1.21≥10.9≥869≥17≥135333-36263-287≤120
38H12.2-12.51.22-1.25≥11.3≥899≥17≥135336-39287-310≤120
40H12.5-12.81.25-1.28≥11.6≥923≥17≥135338-41302-326≤120
42H12.8-13.21.28-1.32≥12.0≥955≥17≥135340-43318-342≤120
45H13.0-13.61.30-1.36≥12.1≥963≥17≥135343-46326-358≤120
48H13.7-14.31.37-1.43≥12.5≥955≥17≥127446-49366-390≤120
SH
Series		30SH10.8-11.31.08-1.13≥10.1≥804≥20≥159228-31233-247≤150
33SH11.3-11.71.13-1.17≥10.6≥844≥20≥159231-34247-271≤150
35SH11.7-12.21.17-1.22≥11.0≥876≥20≥159233-36263-287≤150
38SH12.2-12.51.22-1.25≥11.4≥907≥20≥159236-39287-310≤150
40SH12.5-12.81.25-1.28≥11.8≥939≥20≥159238-41302-326≤150
42SH12.8-13.21.28-1.32≥12.4≥987≥20≥159240-43318-342≤150
45SH13.2-13.81.32-1.38≥12.6≥1003≥20≥159243-46342-366≤150
48SH13.7-14.31.37-1.43≥12.6≥1003≥20≥159246-49366-390≤150
UH
Series		30UH10.8-11.31.08-1.13≥10.2≥812≥25≥199028-31223-247≤180
33UH11.3-11.71.13-1.17≥10.7≥852≥25≥199031-34247-271≤180
35UH11.7-12.21.17-1.22≥10.8≥860≥25≥199033-36263-287≤180
38UH12.2-12.51.22-1.25≥11.0≥876≥25≥199036-39287-310≤180
40UH12.4-12.81.24-1.28≥11.3≥915≥25≥199038-41302-326≤180
42UH12.8-13.21.28-1.32≥11.3≥971≥25≥199040-43318-342≤180
EH
Series		30EH10.8-11.31.08-1.13≥10.2≥812≥30≥238828-31223-247≤200
33EH11.3-11.71.13-1.17≥10.5≥836≥30≥238831-34247-271≤200
35EH11.7-12.21.17-1.22≥11.0≥876≥30≥238833-36263-287≤200
38EH12.2-12.51.22-1.25≥11.3≥899≥30≥238836-39287-310≤200
AH
Series		30AH10.2-10.81.02-1.08≥10.1≥804≥35≥270628-30223-247≤220
33AH11.4-11.71.14-1.17≥10.6≥844≥35≥270631-33247-263≤220
35AH11.7-12.11.17-1.21≥10.9≥876≥35≥270633-36263-279≤220

Technical Parameters:

ParameterDescription
GradeN35-N52, 35M-50M, 35H-48H, 30SH-45SH...
Working Temperature80~220°C
ShapeBlock,Arc,Ring,Customized Shape Magnet
CertificationISO9001, IATF16949, ISO14001
ApplicationNew Energy Cars,Wind Power Generation,Servo Motors,Traction Motors
MaterialNeodymium Iron Boron
CoatingNickel,NiCuNi,Zinc,Epoxy Etc
Magnetic OrientationAs Customization
Permanent MagnetSintered Permanent Magnet, High Performance Permanent Magnet, Neodymium Iron Magnet

Applications:

Sintered Neodymium Magnet, which is also known as Neodymium-Iron-Boron Magnet, is produced by UNMAG with superior quality and excellent performance. It is certified by ISO9001, IATF16949, ISO14001 and it can work within the temperature range of 80~220°C. This type of magnet is available in N35-N52, 35M-50M, 35H-48H, 30SH-45SH grade and with different magnetic orientations according to customization. It is packed in carton box and can be delivered within 20-25days.

Sintered Neodymium Magnet is widely used in new energy cars, wind power generation, servo motors and traction motors. It has strong magnetic field, great corrosion resistance and excellent temperature stability. It is also lightweight and cost effective, making it an ideal choice for all kinds of industrial applications.

Physical Properties & Application to Environment of the Coating

Coating MaterialColourPropertiesEnvironment of ApplicationThickness of
Coating layer
ZincBlue, Black and rainbow etcCompact, Stable and HomogeneousWith reasonalbe capability of anticorrosion6um≤∮≤12
Nickel-Copper-NickelWhite and blackLight and StableSuitable for higher corrosive environment15μm≤∮≤30pm
PhosphorizationColorless or light grayuniform thicknessshort-term anticorrosion-
EpoxyBlack and Graylayer with certain luster, insurabilitySuitable for higher corrosive environment≥15μm
Parylenetransparencyuniform thickness, density pinholes-free and insurabilityExcellent capability of anticorrosion especially for small items0.1μm≤∮≤100pm
Ni+Cu+EpoxyBlackLayer with certain lusterExcellent capability of10-30μm
anticorrosion. Suitable for
hostile environment
salt spray resistance>300hr
Al+EpoxyBlackLayer with certain lusterExcellent capability of15-35μm
anticorrosion. Suitable for
hostile environment
salt spray resistance>650hr Widely used in new energy
auto magnets

Customization:

Sintered Neodymium Magnet Customization Service

UNMAG provides professional sintered neodymium magnet customization services. Our rare earth magnets are made of high quality neodymium-iron-boride, the strongest permanent magnets in the world. All of our sintered permanent magnets are subject to the strictest quality control and delivered with excellent performance.

We offer various shapes, sizes, magnetization orientation and grades of sintered neodymium magnet, such as block, arc, ring and other customized shape magnet, N35-N52, 35M-50M, 35H-48H, 30SH-45SH and so on. Besides, our magnets are available for wide selection of coating, like nickel, NiCuNi, zinc, epoxy etc.

The sintered neodymium magnets are usually packaged in carton box and take 20-25 days for delivery. We guarantee all our permanent magnets are certified to ISO9001, IATF16949, ISO14001 and other international standards.

Packing and Shipping:

The Sintered Neodymium Magnets are packaged and shipped in the following way:

  • Each magnet is packaged in a protective box to ensure that it does not get damaged during shipping.
  • The box is then placed in a larger box, which is filled with bubble wrap to protect the magnets from shock.
  • The box is then sealed with tape and shipped via a reliable shipping carrier.
