330w 1000V Solar Monocrystalline Panels 72 Cells Residential Solar Panels

Categories Mono Solar Panel
Brand Name: Linksun
Model Number: LS-330M
Certification: CE
Place of Origin: China
MOQ: 100PCS
Payment Terms: 30% TT in advance, 70% balance before delivery.
Supply Ability: 1000pieces per week
Delivery Time: 5-8days
Packaging Details: 1pcs/carton
Product name: 330w mono solar panels
Solar Cell: Monocrystalline Silicon solar cell
Application: Homes Camping
Contract Dimension: 1950*992*40
Back Sheet: White
Protection class: IP 65
Front material: 3.2mm High Transmission Tempered Glass
Output cables: 4 mm²,Length:900mm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

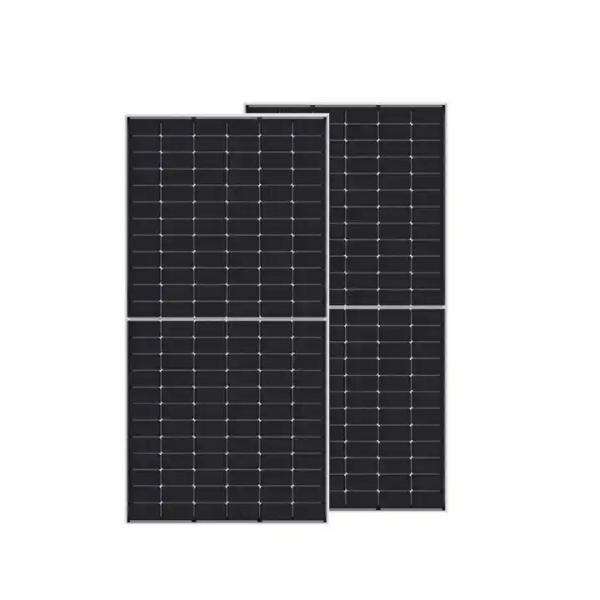

330w 1000V Solar Monocrystalline Panels 72 Cells Residential Solar Panels

330w 1000V Solar Monocrystalline Panels 72 Cells Residential Solar Panels


These 330W monocrystalline solar panels, rated at 1000V, feature 72 cells designed for residential use. They offer high efficiency and reliable performance, making them ideal for home energy solutions. Engineered for durability and optimal energy output, these panels ensure long-term cost savings and a reduced carbon footprint. Perfect for homeowners seeking sustainable and efficient energy sources, these panels provide a robust and eco-friendly solution for residential energy needs.


Product Features:

1) High photoelectric conversion efficiency:

The photoelectric conversion efficiency of monocrystalline silicon solar cells is about 15%, with the highest reaching 24%, which is currently the highest photoelectric conversion efficiency among all types of solar cells.


2)Low production cost:

The production cost of monocrystalline silicon solar cells is relatively low, and the technology is already very mature, so it has been widely used.


3)Long service life:

The service life of monocrystalline silicon solar cells is relatively long, generally reaching around 20 years, with the highest reaching 25 years.


4)Good low light performance:

Monocrystalline silicon solar cells can also perform well under low light conditions, making them suitable for use in solar lamps, solar lawn lamps, etc.


Product Details:

ModelLS-330M
Maximum Power(Pmax)330W
Maximum Power Voltage(Vmp)36.89V
Maximum Power Current(Imp)8.95A
Open Circuit Voltage(Voc)46.12V
Short Circuit Current(Isc)9.64A
Power Tolerance(Positive)3%
Cell TypeMono-crystalline
Contract Dimensions(mm)1950*992*40mm
Weight(KGS)23kg
Protection ClassIP65
Maximum System Voltage1000V
Temperature Range-40℃~85℃
Module Efficiency STC16.86%
Cell number72(6x12)
Front Glass3.2mm High Transmission Tempered Glass
Frame TypeAnodized Aluminum Alloy
Connector TypeMC4
Output Cables4 mm²,Length:900mm

FAQ:


Q1: What's the solar panels warranty?

A: 5 year's warranty.If you have any questions about our quality during use,you can contact us at any time.


Q2: Do you accept OEM/ODM orders?

A:We accept OEM/ODM orders.Welcome your inquiry.


Q3: Can I have samples to test?and what's the lead time for the sample order?

A:Yes,of course.The lead time for samples is 7-10 days.


Q4: Are you manufacturer or a trading company?

A:We are manufacturer and our factory is based in Yuyao,Ningbo.Welcome your visit if you like.


Q5: Where are your goods exported?

A:We can export to all over the world.
