| Categories | Semi Automatic Terminal Crimping Machine |
|---|---|
| Place of Origin: | Guangdong, China |
| Brand Name: | Yihan |
| Model Number: | YH-Y1.8T |
| Usage: | Crimping |
| Product name: | Silent copper belt crimping machine |
| Weight: | 50kg |
| Pressing capicity: | 2.0T |
| Crimping stroke: | 30mm |
| Work efficiency: | 2000 times/hour |
| Dimension: | 370*350*470mm |
| Application copper strip: | 1.0mm,1.5mm,2.0mm,4.0mm,6.0mm |
| Power supply: | 220V/50Hz |
| After-sales service: | On-line Support |
| Keywords: | connector product |
| Packaging Details: | wooden package |
| Price: | $600.00/sets 1-2 sets |
| MOQ: | 1 set |
| Company Info. |
| Yihan (shenzhen) Automation Equipment Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

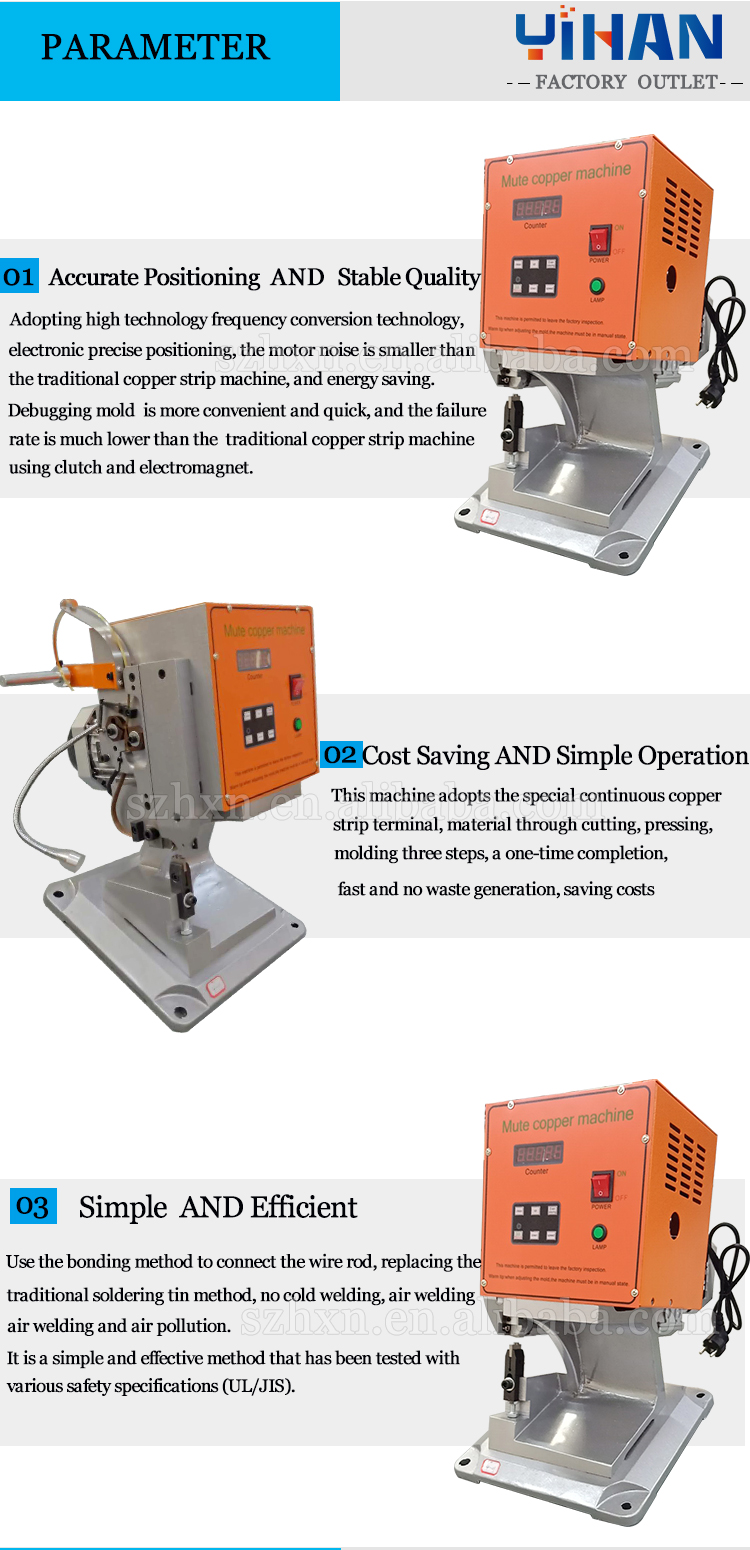

YH-Y1.8T Super mute copper belt strip
and crimp machine/wire splicing machine
Features:
1: This machine is designed for the wire that needs riveting,
pressing the riveting and connecting the wire to replace the traditional welding method.
2: Using special continuous copper strip terminal, the material is
cut, formed, pressed once, quickly and without waste, saving cost.
3: The copper belt is treated by special grain, and the endurance
is very strong after riveting.
4: Scope of application: the connection between the xenon lamp and
the resistor, the connection between the slide switch and the wire, the
connection between the high temperature heating elements, and the connection between the
thermosensitive elements.
| Product Name | Super mute copper belt strip and crimp machine/wire splicing machine |
| Model | YH-Y1.8T |
| Pressing capicity | 2.0T |
| Crimping stroke | 30mm |
| Work efficiency | 2000 times/hour |
| Weight | 50KG |
| Dimension | 370*350*470mm |
| Applicable copper strip | 1.0mm,1.5mm,2.0mm,4.0mm,6.0mm |
|
