| Categories | Wire Cutting And Stripping Machine |
|---|---|
| Place of Origin: | Guangdong, China |
| Brand Name: | Yihan |
| Model Number: | YH-900-02S |
| Usage: | Stripping & Cutting |
| Wire Cross-section: | 0.1-2.5mm2 |
| AWG Size: | AWG14-AWG32 |
| Stripping length: | Head 0-25mm,Tail 0-80mm |
| Warranty: | 12 Months |
| Power: | 220V/110V |
| Driver Mode: | 4 Wheels Driver |
| Weight: | 25 kg |
| Size: | 540*500*380 mm |
| Display method: | Chinese or English |
| Certification: | CE Certificate |
| Packaging Details: | Wooden package |
| Price: | $600.00/sets 1-4 sets |
| MOQ: | 1 set |
| Company Info. |
| Yihan (shenzhen) Automation Equipment Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Mode:YH-900-02S
Automatic Full Computer Wire Stripping Machine adopt the advanced automation technology from Japan,Taiwan.
It is a kind of numerical control equipment.
Widely used in the electronics industry, the city ahs, electrical
appliances, motor, lamps, toys, and othervarious products of wire
processing.
Optimal stripped wire PVC/teflon/silica gel line /. Glass fiber,
etc.
| Available Wire Cross-Section Range: | 0.1-2.5mm2(16AWG-32AWG) |
| Wire outer diameter: | 0.5-3.5mm |
| Cutting Length: | 1-99999mm |
| Cutting Tolerance: | ±(0.002*L)(L=Cutting Length) |
| Stripping Length: | Hend 0-25mm, Tail 0-80mm |

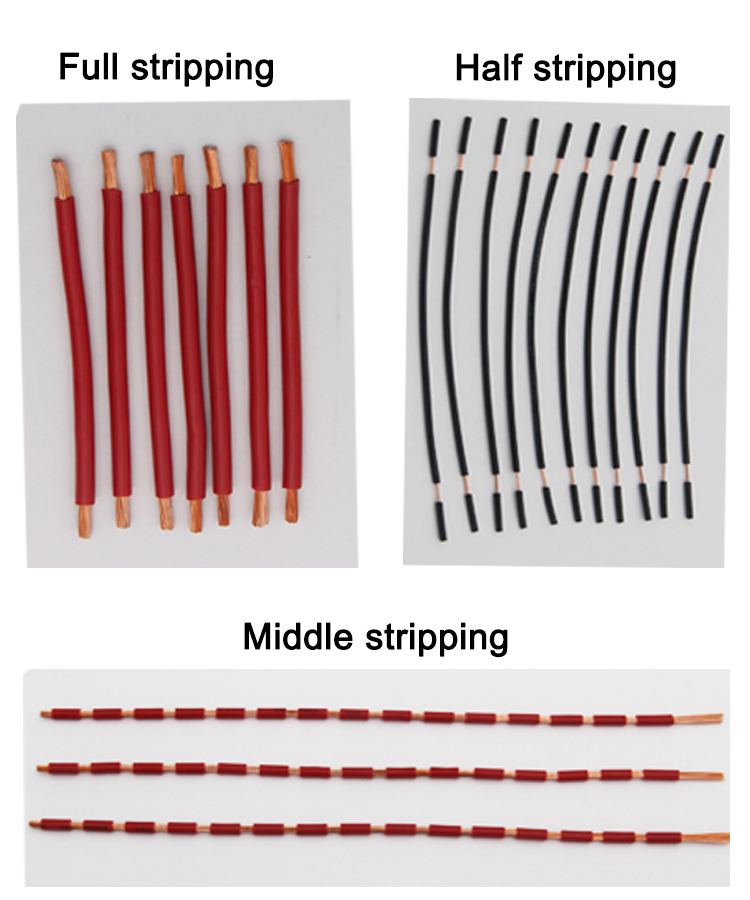

| Middle Stripping Section: | Max 15 |
| Speed: | 3000-8000pcs/h(Depend on wire length) |
| Display Way | English LCD Display |
| Drive Mode | 4 Wheels Drive |
| Blade Material: | High Speed Steel |
| Appropriate Wire | Small electrical wires,PVC tubes,PVC tubes |
| Power Supply: | 220V/50HZ 110V/60HZ(Customized) |
| Power Rating | 200W |
| Size | 560*520*480mm |
| Weight | 29KG |
| Model | YH-900-02 | YH-900-02S | YH-900-04 | YH-900-04S |
| Photo |  |  |  |  |
| Wire Range | 0.1-2.5mm2 | 0.1-1.5mm2 (Double) | 0.1-4.5mm2 | 0.1-2.5mm2 (Double) |
| OD of Feeding | Φ5mm | Φ4mm | Φ6mm | Φ5mm |
| Stripping Length | Head 0-25mm | Head 0-25 mm | Head 0-25 mm | Head 0-25mm |
| Tail 0-80 mm | Tail 0-80 mm | Tail 0-80 mm | Tail 0-80mm | |
| Cutting Length | 1-99999mm | 1-99999mm | 1-99999mm | 1-99999mm |
| Avaible Wire | 0.1-2.5MM2 BVR Wires | 0.1-1.5mm2 BVR Wires | 0.1-4.5mm2 | 0.1-2.5mm2 |
| Model | YH-900-08 | YH-900-08S | YH-900-10 | YH-900-16 |
| Photo | | | | |
| Wire Range | 0.1-6mm2 | 0.1-3mm2 (Double) | 0.1-10mm2 | 0.1-16mm2 |
| OD of Feeding | Φ8mm | Φ5mm | Φ10mm | Φ13mm |
| Stripping Length | Head 0-25mm | Head 0-25 mm | Head 0-25 mm | Head 0-25mm |
| Tail 0-80 mm | Tail 0-80 mm | Tail 0-80 mm | Tail 0-80mm | |
| Cutting Length | 1-99999mm | 1-99999mm | 1-99999mm | 1-99999mm |
| Avaible Wire | 0.1-2.5MM2 BVR Wires | 0.1-3mm2 BVR Wires | 0.1-10mm2 BVR Wires | 0.1-16mm2 BVR Wires |
|
