Brand Name: | Mellanox |
Model Number: | MCX653105A-HDAT-SP |
Place of Origin: | Beijing, China |
Packaging Details: | box |
Supply Ability: | 10000 Set/Sets per Month |
MOQ: | 2 sets |
Price: | $500.00 - $650.00/sets |
Products Status: | Stock |
Application: | Server |
Type: | Wired |
Kind: | External |
Transmission Rate: | 10/100/1000Mbps |
Interface Type: | PCI EXPRESS |

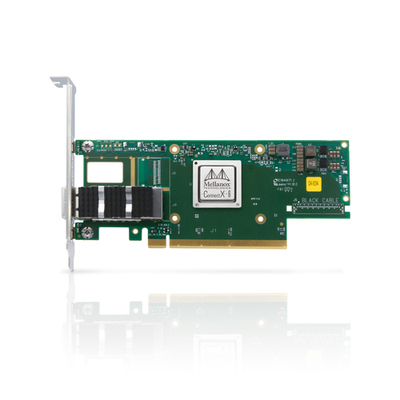

Product Name: | MCX653105A-HDAT-SP For Mellanox ConnectX-6 VPI Adapter Card |
number of network ports: | 1 |
Package:: | Bulk and Retail |
Transmission rate: | 200GbE/100GbE/50GbE/40GbE/25GbE/10GbE/1GbE,HDR |
Port: | Beijing |
Company Info. |
Beijing Jiayetongchuang Technology Co., Ltd. |
Verified Supplier |
View Contact Details |
Product List |
Model | MCX653105A-HDAT-SP | |||
Benefits | * Industry-leading throughput, low CPU utilization and high message
rate * Highest performance and most intelligent fabric for compute and storage infrastructures * Cutting-edge performance in virtualized networks including Network Function Virtualization (NFV) * For Mellanox Host Chaining technology for economical rack design * Smart interconnect for x86, Power, Arm, GPU and FPGA-based compute and storage platforms * Flexible programmable pipeline for new network flows * Cutting-edge performance in virtualized networks, e.g., NFV * Efficient service chaining enablement * Increased I/O consolidation efficiencies, reducing data center costs & complexity | |||
Key Features | * Up to 200Gb/s connectivity per port * Max bandwidth of 200Gb/s * Up to 215 million messages/sec * Sub 0.6usec latency * Block-level XTS-AES mode hardware encryption * FIPS capable * Advanced storage capabilities including block-level encryption and checksum offloads * Supports both 50G SerDes (PAM4) and 25 SerDes (NRZ)-based ports * Best-in-class packing with nsubnanosecond accuracy * PCIe Gen3 and PCIe Gen4 support |
![]() |
