316L Cold Rolled Stainless Steel Sheet 1.4404

Categories Cold Rolled Stainless Steel Sheet
Brand Name: TISCO,BAOSTEEL,POSCO,JISCO,LISCO
Certification: MTC; SGS
Place of Origin: China
MOQ: 1 Ton
Price: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 850 tons per month
Delivery Time: 3-15 working days
Packaging Details: waterproof paper and steel strip reinforcement,one package about 2 tons,Load in 20' or 40' GP
Name: 316 Cold 14 Gauge Metal Sheet
Edge: Slit Edge , Mill Edge
Technique: Cold Rolled
Price term: FOB, CFR, CIF
Packing: Standard Sea-worthy Packing
Application: Cars; Buildings; Bicycle;Machine
Thickness: 1.98 mm
Grade: UNS 31603 BS EN 1.4404
Width: 1000, 1219, 1500 mm
Length: 2000, 3000, 6000 mm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

316L Cold Rolled Stainless Steel Sheet 1.4404

316L Cold Plate Steel 14 Gauge 1.4404 Metal Sheet For Commercial Kitchen


Cold rolled steel is essentially hot rolled steel that has been through further processing. Once hot rolled steel has cooled, it is then re-rolled at room temperature to achieve more exact dimensions and better surface qualities.


Product introduction:


Commodity316L Cold Plate Steel 14 Gauge 1.4404 Metal Sheet For Commercial Kitchen
Grade316L
BrandTISCO ,BAOSTEEL,POSCO,JISCO,LISCO
CertificationSGS,BV,IQI,TUV,ISO,etc
Thickness0.3-3mm
Width1000mm,1219mm,1500mm as per customers’ requirements
Length2000,3000,6000mm or as per customers’ requirements
Surface2B;No.4
StandardJIS,AISI,ASTM,GB,DIN
Delivery timeAbout 15 -30 days or based on the sales contract
MOQ1 Ton
Advantagesoffers higher creep, stress to rupture and tensile strength at elevated temperatures.

Grade 316L:


Grade 316L is the standard molybdenum-bearing grade, second in importance to 304 amongst the austenitic stainless steels. The molybdenum gives 316L better overall corrosion resistant properties than Grade 304, particularly higher resistance to pitting and crevice corrosion in chloride environments.


The austenitic structure also gives these grades excellent toughness, even down to cryogenic temperatures.


Compared to chromium-nickel austenitic stainless steels, 316L stainless steel offers higher creep, stress to rupture and tensile strength at elevated temperatures.


Chemical Composition:


GradeChemical Composition (WT %)
CarbonManganesePhosphorusSulfurSiliconChromiumNickel
316L≤ 0.03≤ 2.00≤ 0.045≤ 0.030≤ 1.0016.0 to 18.012.0 to 15.0

Physical Property:


Physical Property
Tensile Strength(Mpa)Yield Strength(Mpa)Elongation(%)/Hardness(HV/HB)Density
≥480MPa≥175MPa≥40%/≤200HV7.98g/cm3

Brand Cross Reference Table:


GB NEW BRANDJISASTMUNSKSBS ENAS
12Cr17Mn6Ni5NSUS201201S20100STS2011.4372201-2
12Cr18Mn9Ni5NSUS202202S20200STS2021.4373-
12Cr17Ni7SUS301301S30100STS3011.4319301
06Cr19Ni10SUS304304S30400STS3041.4301304
022Cr19Ni10SUS304L304LS30403STS304L1.4306304L
06Cr19Ni10NSUS304N1304NS30451STS304N11.4315304N1
06Cr19Ni9NbNSUS304N2XM21S30452STS304N2-304N2
022Cr19Ni10NSUS304LN304LNS30453STS304LN-304LN
10Cr18Ni12SUS305305S30500STS3051.4303305
06Cr23Ni13SUS309S309SS30908STS309S1.4833309S
06Cr25Ni20SUS310S310SS31008STS310S1.4845310S
06Cr17Ni12Mo2SUS3163016S31600STS3161.4401316
06Cr17Ni12Mo2TiSUS316Ti316TiS31635-1.4571316Ti
022Cr17Ni12Mo2SUS316L316LS31603STS316L1.4404316L
06Cr17Ni12Mo2NSUS316N316NS31651STS316N-316N
022Cr17Ni13Mo2NSUS316LN316LNS31653STS316LN1.4429316LN
06Cr18Ni12Mo2Cu2SUS316J1--STS316J1-316J1
022Cr18Ni14Mo2Cu2SUS316J1L--STS316J1L--
06Cr19Ni13Mo3SUS317317S31700STS317-317
022Cr19Ni13Mo3SUS317L317LS31703STS317L1.4438317L
06Cr18Ni11TjiSUS321321S32100STS3211.4541321
06Cr18Ni11NbSUS347347S34700STS3471.455347
12Cr13SUS410410S41000STS4101.4006410
20Cr13SUS420J1420S42000STS420J11.4021420
10Cr17SUS430430S43000STS4301.4016430

Surface Finish:



Surface FinishDefinitionApplication
2BFinished by heat treatment, pickling after cold rolling. Followed by skin pass line to be more brighter and smooth surfaceGeneral application Medical instruments, Tableware
BABright heat treament after cold rollingKitchen utensil, kitchenware, architectural
8KA mirror-like reflective surface by polishing with finer abrasives over 800meshConstruction, mirrors, plate sets, decoration elevators
HLFinished by continuous linear polishingArchitectural purpose, Escalators, kitchenware, vehicles
NO.1Finished by hot rolling, annealing and picking, characterized by white pickled surfaceChemical industry Equipment, industrail tanks
NO.4Polishing with NO.150 to NO.180 mesh abrasives specified in JISR6001Kitchen utensils, Building Construction, Medical equipment

Packing:


316L Cold Plate Steel 14 Gauge 1.4404 Metal Sheet For Commercial Kitchen 2types:


l Standard packing



l Fine packing



Factory and Machine Equipment:


We had our own factory to do slitting re-rolling and finish treatment machine,PVC and interleaving paper we will using with our machine for you,could protect stainless steel surface from damage or any scratches,


1. CNC Flame Cutting Machine

2. CNC Plasma Cutting Machine

3. CNC Laser Cutting Machine

4. Bending Machine

5. Shearing Machine

6. Punch Machine

7. Driving Machine

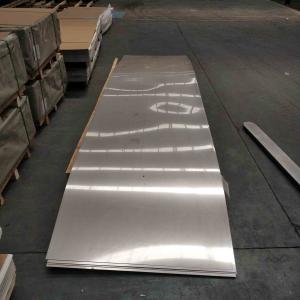

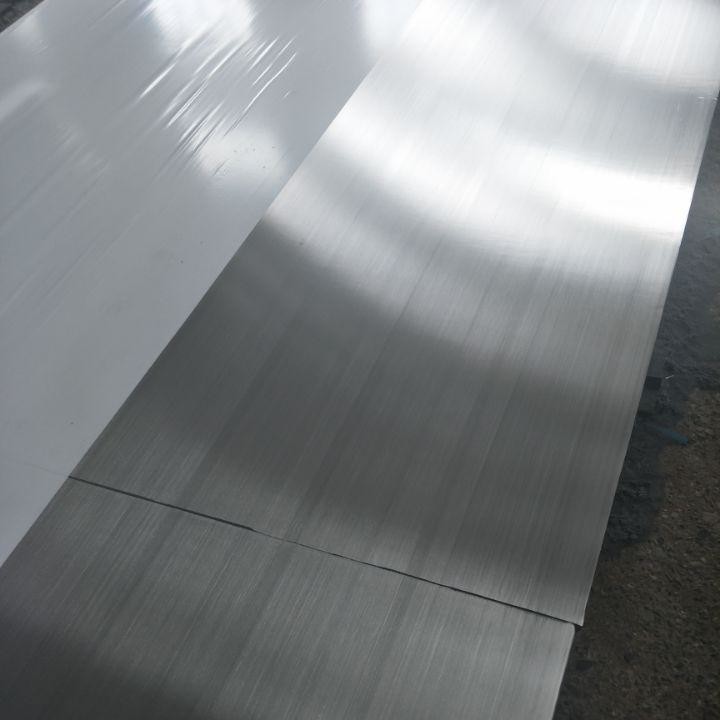

Product Display:



WHY CHOOSE US:


Q1: What is your terms of payment?
A: 30% T/T in advance, the balance 70% before delivery. We will show you the photos of products and package before you pay the balance.

Q2: what is the terms of delivery?
A: FOB, CIF, CFR,

Q3: What is the terms of packing?
A: generally, we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers' requirement.

Q4: What is your delivery time?
A: For stocks, we could transport the goods to loading port within 7 days after we received your deposit.
For production period, it usually takes about 15 days-30 days after receiving the deposit.

Q5: Could you produce according to the samples?
A : Yes, we could customer-made by your samples or technique drawings, we could build the mold and fixtures.

Q6: Could you provide the samples?
A: yes, we could provide the free samples on conditons it is available in stocks, however, the the transportation fee is borne by buyer.
