Galvanized Square Woven Wire Screen Mesh Metal For Window Screen Anti Mosquito

Categories Woven Mesh Screen
Brand Name: Yinghang
Model Number: 18x18
Certification: SGS,ISO
Place of Origin: China
MOQ: 500 rolls
Price: according to the market
Delivery Time: 15 days after deposit
Packaging Details: waterproof paper+plastic film+woven bag
Product name: Galvanized Square Wire Mesh Screen
Technique: Woven
Application: Woven Wire Mesh,Filters,Screen
Weave style: Plain Weave
Material: Stainless Steel Wire,Galvanized Steel Wire
Color: Silver
Type: Weave Wire Mesh,Wire Cloth
Feature: Corrosion Resistance,Anti-corrosion
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Galvanized Square Woven Wire Screen Mesh Metal For Window Screen Anti Mosquito

Galvanized Squre Wire Mesh

Galvanized square wire mesh is a kind of wire mesh woven into a grid shape by galvanized wire. The term "galvanized" refers to the process of coating the wire with a layer of zinc to protect it from corrosion and rusting.


The Application of Galvanized Square Wire Mesh

Galvanized square wire mesh has a wide range of uses and plays an important role in many fields. The followings are some common uses of it:


As safety protection:Galvanized square wire mesh can be used as window screens for windows or skylights, which can effectively prevent insects and pests from entering the private environment, and ensure air circulation.

As feeding tools: Galvanized square wire mesh can usually be used to make bird feeders. It is not only convenient to feed the birds, but also prevents the birds from flying away.

As industrial tools: Galvanized square wire mesh has many different mesh specifications and can be used as a filter such as screening loan and sand.


The catagories of Galvanized Square Wire Mesh

According to the different manufacturing process of the galvanized square wire mesh, it can be divided into the following four categories:


Hot dipped galvanized square wire mesh before weaving

Hot dipped galvanized square wire mesh after weaving

Electro galvanized square wire mesh before weaving

Electro galvanized square wire mesh after weaving


The Specification of Galvanized Square Wire Mesh


Mesh OpeningWire ThicknessWidthLength
MeshMMInchMM
2 x 20.81-1.6512-600.3-1.525; 30
3 x 30.71-1.0712-600.3-1.525; 30
4 x 40.56-0.8912-600.3-1.525; 30
5 x 50.46-0.7112-600.3-1.525; 30
6 x 60.46-0.7112-600.3-1.525; 30
7 x 70.46-0.6312-600.3-1.525; 30
8 x 80.40-0.6312-600.3-1.525; 30
10 x 100.30-0.6312-600.3-1.525; 30
12 x 120.25-0.6312-600.3-1.525; 30
14 x 140.21-0.6312-600.3-1.525; 30
16 x 160.21-0.6312-600.3-1.525; 30
18 x 180.21-0.4012-600.3-1.525; 30
20 x 200.21-0.4012-600.3-1.525; 30
22 x 220.17-0.2512-600.3-1.525; 30
24 x 240.17-0.2512-600.3-1.525; 30
28 x 280.17-0.2312-600.3-1.525; 30
30 x 300.17-0.2312-600.3-1.525; 30
40 x 400.17-0.2312-600.3-1.525; 30
50 x 500.17-0.2112-600.3-1.525; 30
60 x 600.16-0.1712-600.3-1.525; 30

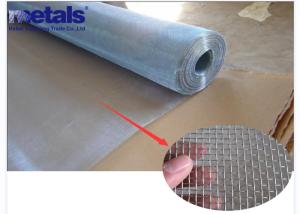

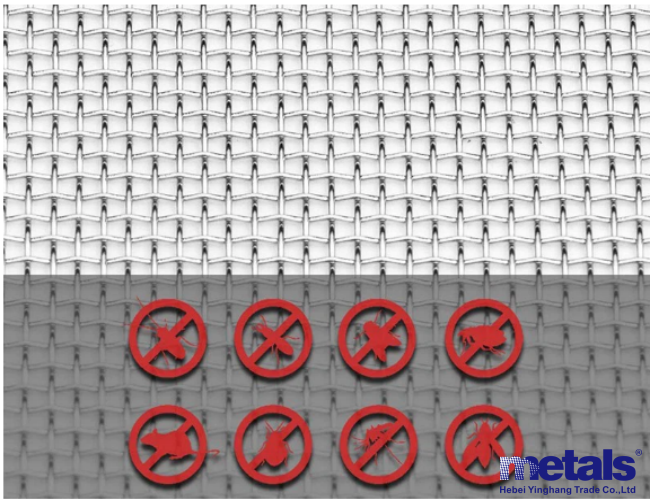

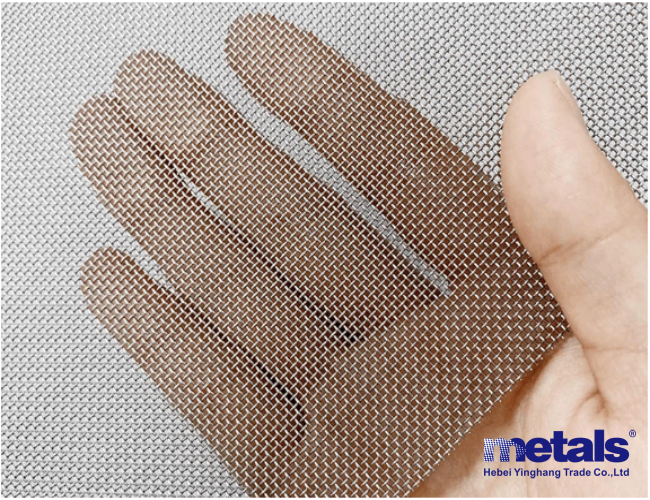

Photos of Galvanized Square Wire Mesh Window Screen to anti-mosquito
