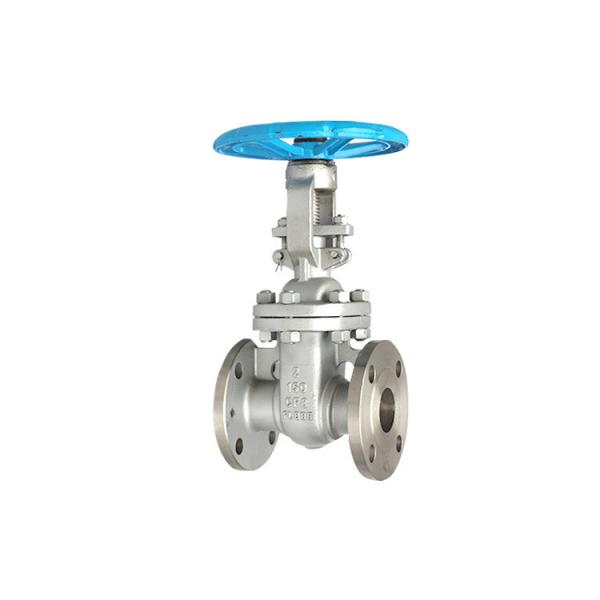

Customized Request Z41W-150/300/600lb ANSI Flanged Gate Valve CF8 in ISO 9001 Standard

Categories Flanged Gate Valve
Model NO.: Z41W
Structure: Dark Stem Gate Valve
Type: Dark Stem Gate Valve
Function: Dark Stem Gate Valve
Temperature: Normal Temperature
Standard: ISO 9001
Application: Industrial Usage, Water Industrial Usage, Household Usage
Price Term: EXW, Fob, CIF, CFR
Customized Support: OEM,Oed
Warranty: 1 Year
Transport Package: Carton
Specification: DN15-DN300
Trademark: FrtnVlve
Origin: China
HS Code: 8481804090
Supply Ability: 100000/year
Media: Water
Material: Stainless Steel
Connection Form: Flange
Driving Mode: Manual
Nominal Pressure: PN1.0-32.0MPa
Channel: Straight Through Type
Samples: US$ 36.6/Piece 1 Piece(Min.Order) | Request Sampl
Customization: Available | Customized Request
MOQ: 1 piece
Price: 0.7-2000 usd
Packaging Details: carton
Delivery Time: 5-8 days
Payment Terms: T/T
Place of Origin: Zhejiang,China
Certification: ISO 9001
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Customized Request Z41W-150/300/600lb ANSI Flanged Gate Valve CF8 in ISO 9001 Standard

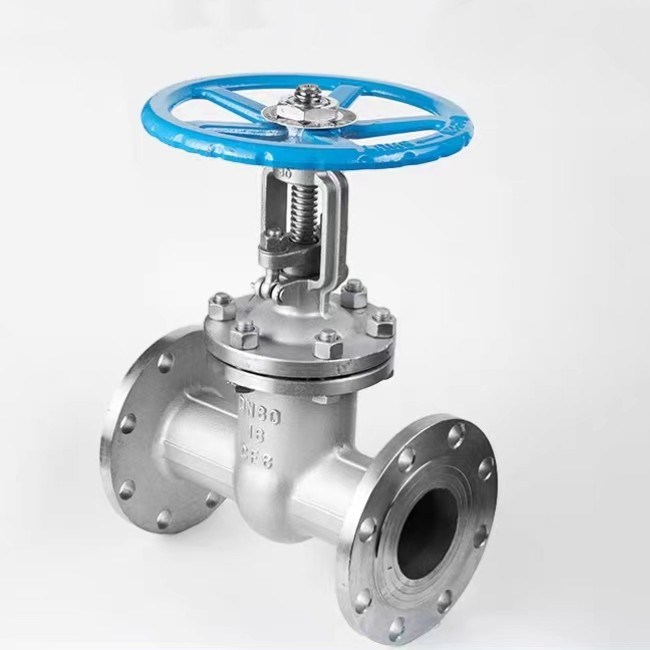

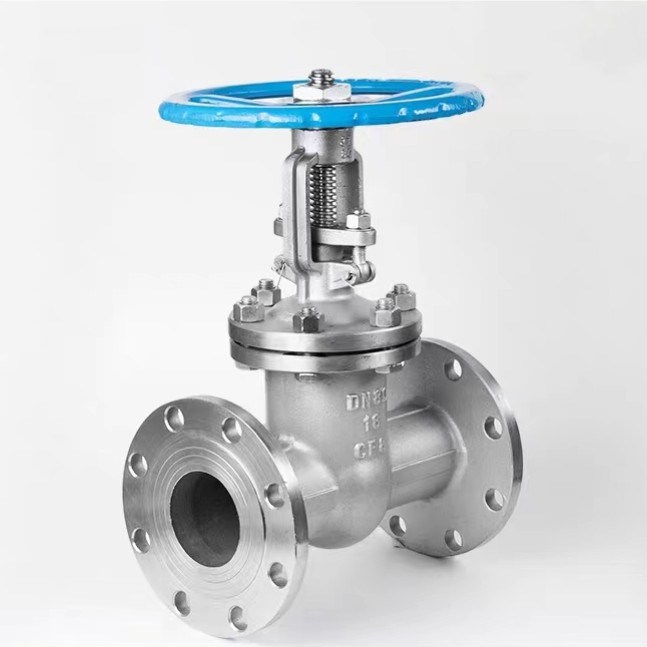

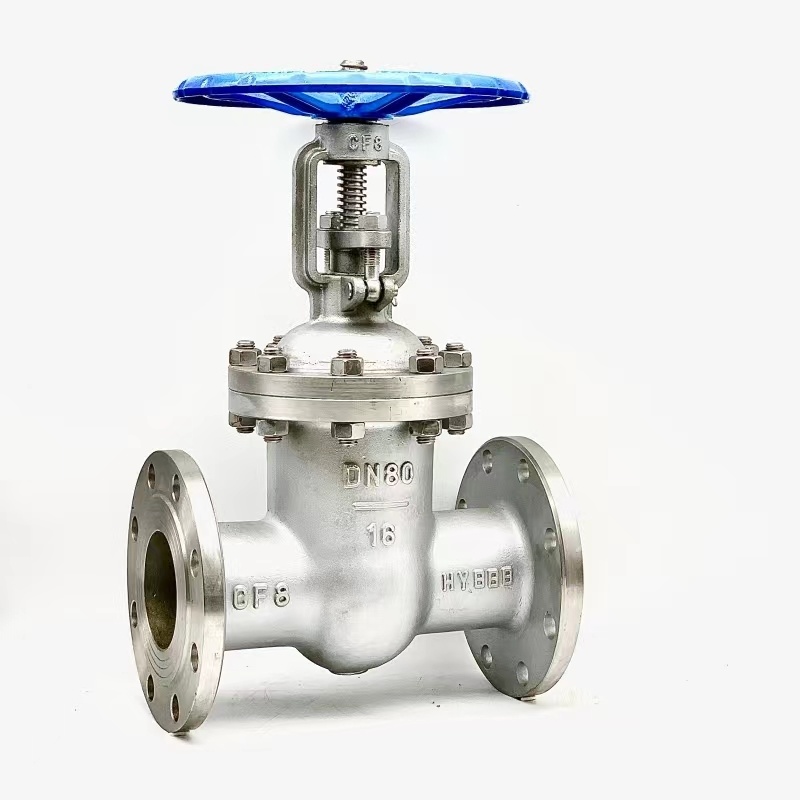

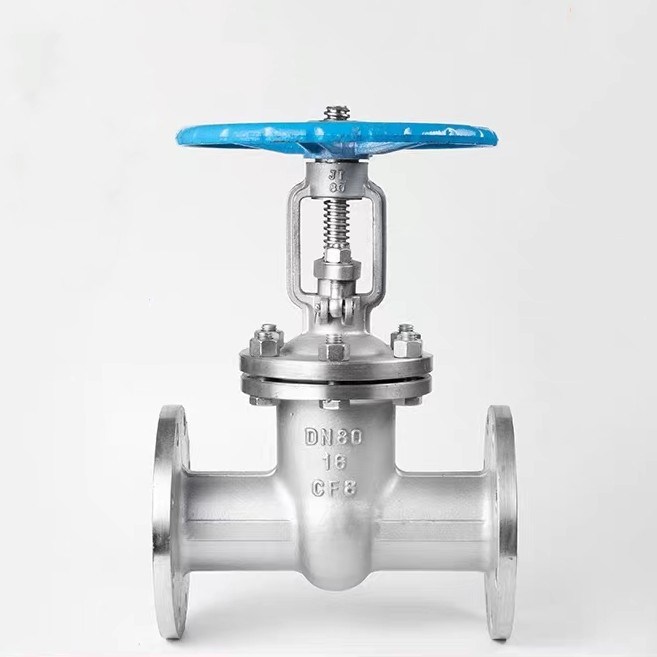

Detailed Photos

Z41W-150/300/600lb ANSI Flanged Gate Valve CF8Z41W-150/300/600lb ANSI Flanged Gate Valve CF8Z41W-150/300/600lb ANSI Flanged Gate Valve CF8Z41W-150/300/600lb ANSI Flanged Gate Valve CF8

Product Parameters

Z41W-150/300/600lb ANSI Flanged Gate Valve CF8MATERIALS OF MAIN CONSTRUCTION

NO.Pare nameMaterial
1BodyA351-CF8M
2DiscA351-CF8M
3StemA276-316
4GasketPTFE/Graphite
5BonnetA351-CF8M
6PackingPTFE/Graphite
7GlandA276-316
8Gland flangeA351-CF8M
9Stem NutA439-D2
10HandwheelQT400-15
11NameplateAluminum
12Handwheel NutAluminum Bronze
13NutA194-2H
14Bonnet BoltA193-B8
15Eyebolt pinSS304
16EyeboltA193-B8
17NutA194-2H

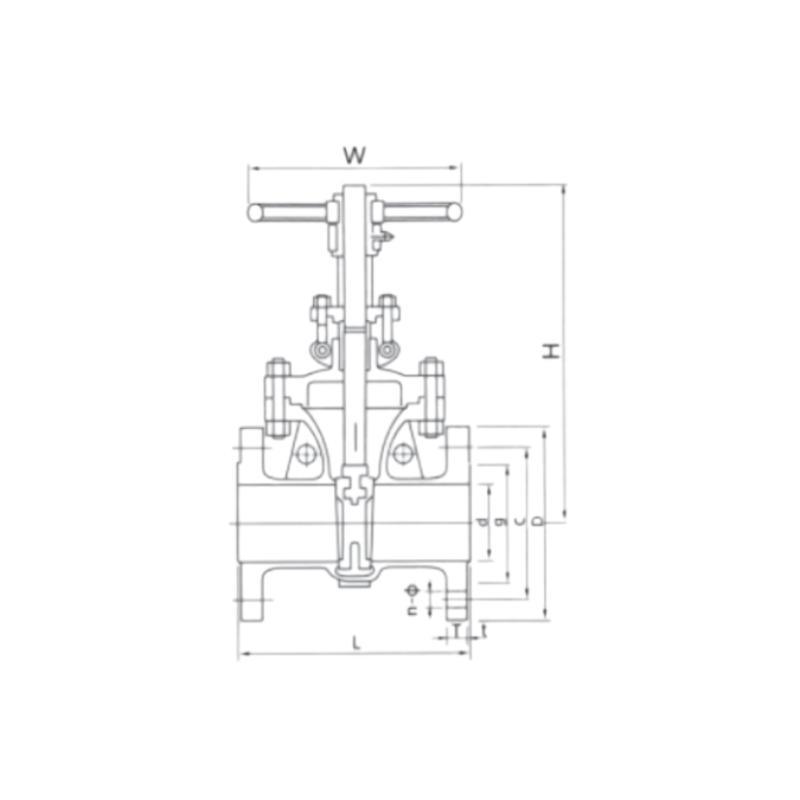

DIMENSIONS OF FLANGED END

Normal pressureSizedLDCgTtHWn-φ
CLASS 1501-1/4''321401178964131.62521004-15
1-1/2''4016512798.573151.62771404-15
2''50178152120.592161.63232004-19
2-1/2''65190178139.5105181.63472504-19
3''80203190152.5127191.63832504-19
4''100229229190.5157241.64573008-19
5''125254254216186241.66323008-22
6''150267279241.5216261.66353508-22
8''200292343298.5270291.67623508-22
10''250330406362324311.689540012-25
12''300356483432381321.6108050012-25
14''350381533476413351.6129560012-29
16''400406597540470371.6143560016-29
18''450432635578533401.6162665016-32
20''500457698635584431.6182965020-32
24''600508813749.5692481.6217570020-35
CLASS 3001-1/4''3217813398.563191.62161604-19
1-1/2''40190156114.573211.62501604-22
2''5021616512792221.63302508-19
2-1/2''65241190149105251.63682508-22
3''80283210168127291.63943008-22
4''100305254200157321.64733008-22
5''125381279235186351.66603508-22
6''150403318270216371.671135012-22
8''200419381330270411.681340012-25
10''250457444387.5324481.6100350016-29
12''300502521451381511.6113760016-32
14''350762584514.5413541.6148960020-32
16''400838648571.5470571.6158165020-35
18''450914711628.5533601.6201783824-35
20''500991775686584641.6222888924-35
24''6001143914813692701.62650109224-41
1-1/4''3222913398.563286.42161604-19
CLASS 6001-1/2''40241156114.573306.42501604-22
2''5029216512792336.45102548-19
2-1/2''65330190149105366.45542548-22
3''80356210168127396.45953058-22
4''100432273216157456.47123568-25
5''125508330266.5186526.48264068-29
6''150559356292216556.499550812-29
8''200660419349270636.4115761012-32
10''250787508432324716.4137368616-35
12''300838559489381746.4160368620-35
14''350889603527413776.4193076220-38
16''400991686603470846.4203288920-41
18''4501092743654533906.4228688920-44
20''5001194813724584966.42591111824-44
24''60013979408386921096.43124111824-52


COMPLIANCE STANDARD

DesignAPI600;API603
Pressure-temperature ratingASME B16.34
Face to faceASME B16.10
Flange diameterASME B16.5
Inspection and testingAPI 598
Body materialA351-CF8;CF8M;WCB;CF3;CF3M;CN7M
Certifications

Z41W-150/300/600lb ANSI Flanged Gate Valve CF8

Packaging & Shipping

Z41W-150/300/600lb ANSI Flanged Gate Valve CF8

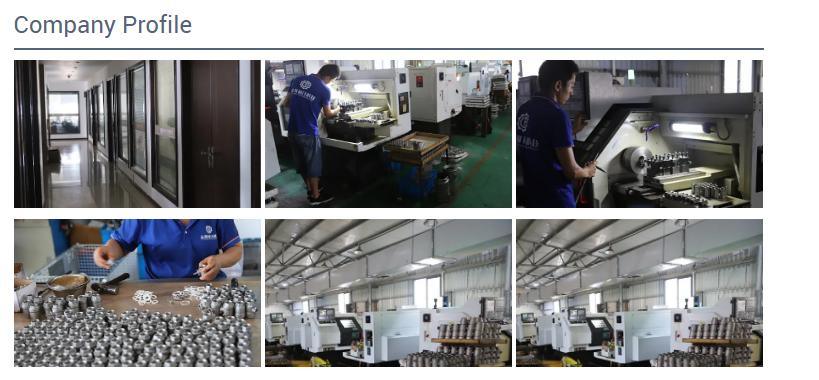

Company Profile

Z41W-150/300/600lb ANSI Flanged Gate Valve CF8

FAQ

1. who are we?
We are based in Zhejiang, China, start from 2013,sell to Southeast Asia(50.00%),South America(20.00%),North America(12.50%),South
Asia(10.00%),Eastern Asia(2.00%),Eastern Europe(1.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
mini ball valve,float valve,check valve,angle valve,stainless steel ball valve
4. why should you buy from us not from other suppliers?
We are a professional stainless steel ball valve manufacturer , we have 7 years of production experience ,with strong technical
strength ,sophisticated CNC machine tools and testing equipment, to lay a solid foundation for a quality .
5. what services can we provide?
Accepted Delivery Terms: FOB,EXW;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
