Categories | Non Captive Linear Stepper Motor |
---|---|
Warranty: | 1year |
Place of Origin: | Chongqing, China |
Brand Name: | Umot |
Model Number: | Nema11 non captive |
Phase: | 2 |
Type: | Hybrid |

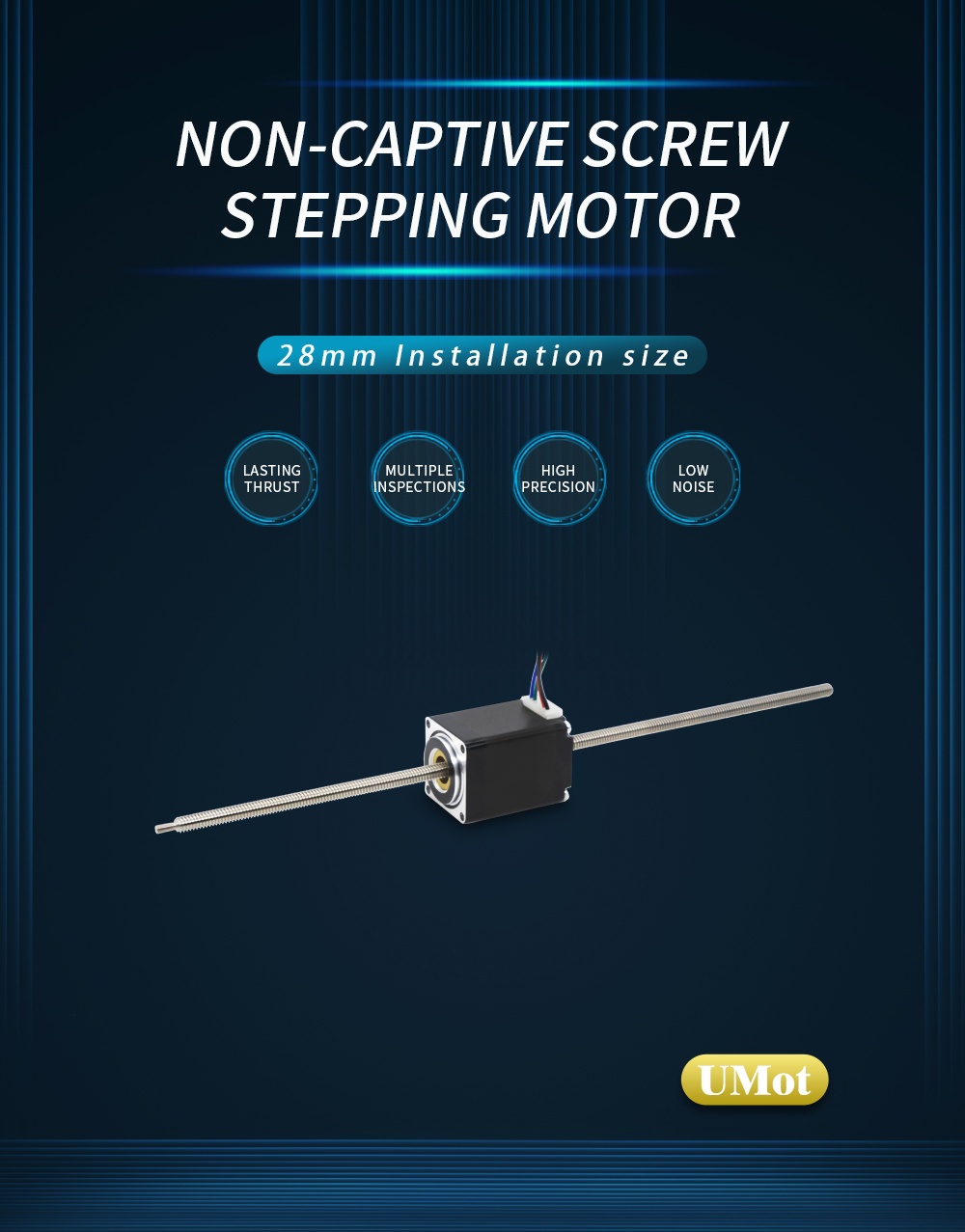

Product name: | Non-captive linear motor |
Step angle: | 1.8degree |
Rated current: | 0.7A |
Size: | 28x40mm |
Screw lead: | 2/4mm |
Screw diameter: | 5mm |
Holding torque: | 90mN.m |
Screw length: | 250mm |
Shape: | Square |
Application field: | 3D printer automated production line |
Port: | any port |
Supply Ability: | 1000000 Set/Sets per Year |
MOQ: | 2 units |
Price: | $39.80/units 2-9 units |
Company Info. |
Chongqing Umot Technology Co., Ltd. |
Verified Supplier |
View Contact Details |
Product List |
Item | Value |
Product name | Non-captive linear motor |
Brand | UMot |
Step angle | 1.8 degree |
Rated current | 0.7A |
Size | 28*40mm |
Screw lead | 2/4mm |
Screw diameter | 5mm |
Holding torque | 90mN.m |
Screw length | 250mm |
Shape | Square |
Weight | 0.16kg |
Application field | 3D printer automated production line |
![]() |
