Investment Casting Stainless Steel Screwed Gate Valves Customization and Currency US

Categories Wedge Gate Valve
Model NO.: Z11F-800WOG
Thread Position of Valve Rod: Inside Gate Valve
Application: Industrial Usage, Water Industrial Usage, Household Usage
Size: Dn15-150
Transport Package: Carton
Specification: CE/SGS/ISO9001
Trademark: Xuteng
Origin: China
HS Code: 8481801090
Supply Ability: 1000PCS/Month
Package Size: 150.00cm * 150.00cm * 150.00cm
Package Gross Weight: 500.000kg
Material: Stainless Steel
Connection Form: Thread
Seal Surface: Wedge Gate Valve
Customization: Available | Customized Request
Shipping Cost : about shipping cost and estimated delivery time.
 : Initial Payment Full Payment
Currency: US$
Return&refunds: You can apply for a refund up to 30 days after receipt of the products.
Place of Origin: Zhejiang China
Certification: CE/SGS/ISO9001
MOQ: 1
Payment Terms: LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Price: negotiate
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Investment Casting Stainless Steel Screwed Gate Valves Customization and Currency US

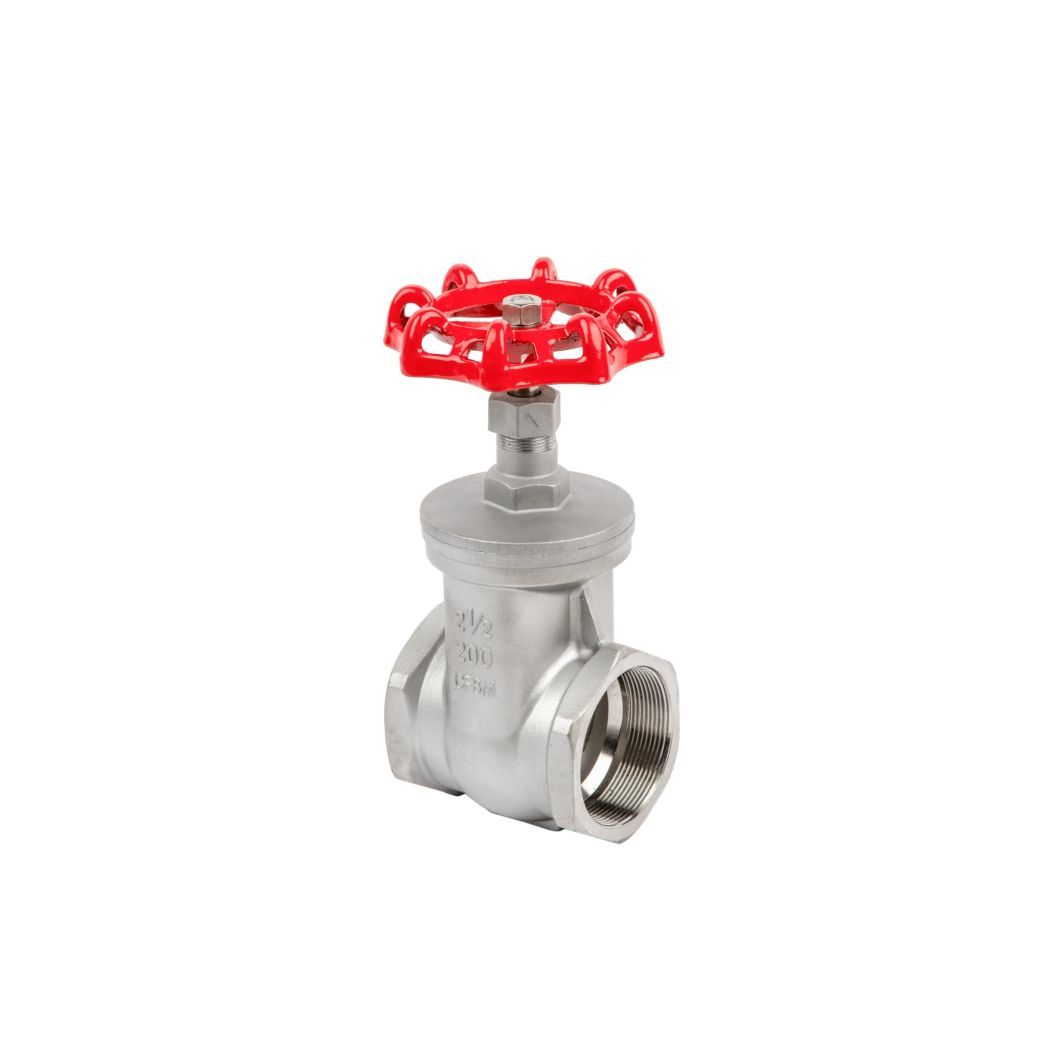

Investment Casting Stainless Steel Screwed Gate Valves
Investment casting body / bonnet
Materials: ASTM A351-CF8M
Pressure temperature rating: 200 PSI (PN16) Pressure temperature rating: 350 deg. F
Inside screw and screwed bonnet, wedge disc, integral seat, non-rising stem and handwheel.
Threaded end: BSPT, NPT, DIN259, DIN2999
Standard materials of parts
ItemPartsMaterial
1BodyCF8M
2BonnetCF8M
3Stop ringSS304
4StemSS316
5PackingRPTFE
6Handwheel nutSS304
7HandwheelAluminum
8Packing nutSS316
9GlandSS304
10Lock nutSS316
11GasketRPTFE
12DiscCF8M

Dimensions (in mm & inch) and weight
SizeDLHD1
1/2"15559270
3/4"20609970
1"256611380
1.1/4"327612880
1.1/2"408614790
2"5096168100
Factory drawing:

warehouse
Investment Casting Stainless Steel Screwed Gate Valves
Investment Casting Stainless Steel Screwed Gate Valves
Investment Casting Stainless Steel Screwed Gate Valves

workshop:
Investment Casting Stainless Steel Screwed Gate Valves
Investment Casting Stainless Steel Screwed Gate Valves
Investment Casting Stainless Steel Screwed Gate Valves


Other products:
Investment Casting Stainless Steel Screwed Gate Valves
Investment Casting Stainless Steel Screwed Gate Valves
Investment Casting Stainless Steel Screwed Gate Valves

Certificate:
Investment Casting Stainless Steel Screwed Gate Valves
Investment Casting Stainless Steel Screwed Gate Valves
Investment Casting Stainless Steel Screwed Gate Valves
Investment Casting Stainless Steel Screwed Gate Valves
Investment Casting Stainless Steel Screwed Gate Valves
Investment Casting Stainless Steel Screwed Gate Valves



FAQ

Q : Are you a factory or a trading company?
A : We are a R & D factory.
Q : Which country do you export to?

A : We can export to any country according to buyer's need.
Q : Do you accept the customized order?

A : YES!


Q : What is your main market?
A : Southeast Asia, Middle East, North America, South America, Europe, etc.


Q : Can you give me a discount?
A: As you know, we are the manufacturer, so please trust us that our prices are competitive.
If the quantity is large, we can consider giving you a discount.


Q : If the product has quality problems, what will you do?
A : We will be responsible for all quality problems.



Q :What is your payment term?
A :1.T/T, 30% down payment, balance paid before shipment.
2. Letter of credit.


Q: If the product has quality problems, what will you do?
A: We will be responsible for all quality problems.
