| Categories | PVC Pipe Machine |
|---|---|
| Condition: | New |
| Plastic Processed: | PVC |
| Application: | PIPE |
| Screw Design: | Double-screw |
| Twin Screw Type: | Counter-rotating conical Twin-screw |
| Screw Material: | 38CrMoALA |
| Screw diameter (mm): | 65/132 +55/110 |
| Screw L/D Ratio: | 22:1 |
| Screw Speed (rpm): | 42 rpm |
| Showroom Location: | None |
| Place of Origin: | Shandong, China |
| Brand Name: | SINO-HOLYSON |
| Voltage: | 380V 50HZ 3Phase(Customized) |
| Dimension(L*W*H): | 25mx2.5mx2.2m |
| Weight: | 4500 KG |
| Warranty: | 1 Year |
| Key Selling Points: | High Productivity |
| Applicable Industries: | Manufacturing Plant |
| Video outgoing-inspection: | Provided |
| Warranty of core components: | 1 Year |
| Core Components: | Bearing |
| Machinery Test Report: | Provided |
| After-sales Service Provided: | Online Support |
| Color: | Customised |
| Machine: | PVC Pipe Making Machine |
| Power: | 80 |
| Automatic Grade: | Automatic |
| Certification: | CE ISO9001 |
| Marketing Type: | New Product 2022 |
| Packaging Details: | Film Packing/Woodcase Packing |
| Port: | Qingdao |
| Supply Ability: | 10 Set/Sets per Month |
| Price: | $65,000.00/sets >=1 sets |
| Company Info. |
| QINGDAO SINO-HOLYSON MACHINERY CO., LTD |
| Verified Supplier |
| View Contact Details |
| Product List |

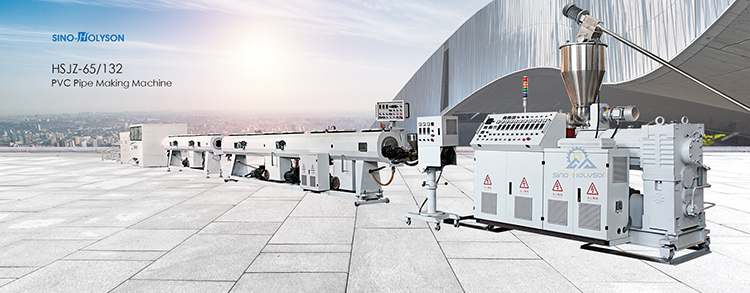

PVC Pipe Making Extruding Machine
A. Description of PVC pipe machine:
PVC water supply pipe plastic production machine is interested by
most customer in recently years.
It is estimated PVC pipe production line will have a potential huge market in plastic machinery.
This PVC pipe used widely.i.e. water supply and drainage,liquid gas
and oil transportation,sewage and builing industry.
B. Process Flow of PVC pipe machine:
Raw material + additive → Mixing → Hopper Loader → Forced Feeding →
Conical Twinn Screw Extruder → Extrusion Mould
→ Calibrator → Spay Vacuum Calibration Tank→ Spray Water Tank → Ink
Printer→ Belt Haul-off → Cutter → Pipe Rack →Finished Product
Inspecting & Packing
Model | Pipe Range (mm) | Extruders | Max. Output (kg/h) | Max. Speed (m/min) | Total Power (kw) | Line Length (m) |
PVC-50x2 | 16-50 | SJSZ51/105 | 150 | 6m | 60w | 20m |
PVC-63 | 16-63 | SJSZ45/90 | 120 | 10m | 45w | 20m |
PVC-110 | 50-110 | SJSZ51/105 | 150 | 6m | 60w | 24m |
PVC-160 | 63-160 | SJSZ65/132 | 300 | 5m | 100w | 24m |
PVC-250 | 110-250 | SJSZ80/156 | 400 | 3.5m | 120w | 28m |
PVC-315 | 160-315 | SJSZ 80/156 | 400 | 3m | 160w | 28m |
PVC-450 | 250-450 | SJSZ 92/188 | 700 | 1.5m | 200w | 36m |
PVC-630 | 315-630 | SJSZ92/188 | 700 | 0.9 | 230kw | 36m |
Main Production Line:
Main PVC Pipe Extruder:
|

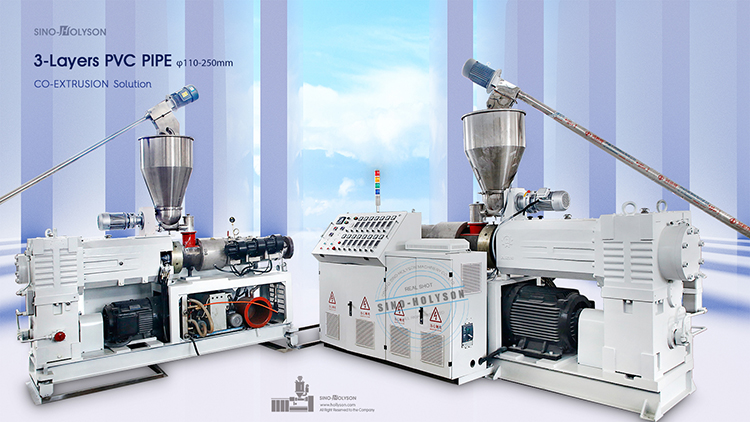

110kW Power Sino-HS 3 Layer PVC Pipe Making Machine / HDPE Pipe Machine / PPR Pipe Machine
