Four Head Type Paper Tube Production Line Circular blade Paper Tube Cutter 30m/min

Categories	Paper Tube Cutting Machine
Brand Name:	AMC MACHINERY
Model Number:	TSJG-500
Certification:	CE
Place of Origin:	CHINA
MOQ:	1 set
Price:	Negotiate
Payment Terms:	T/T
Supply Ability:	5 sets per month
Delivery Time:	60 working days
Packaging Details:	Corrugated box and plastic film
Voltage:	220V or 380V or 415V
Color:	Customized
Paper layers:	3-25 layers
Inner diameter of paper tube:	50-500mm
Production speed:	0-30 m/min
Wrapping head quantity:	4 head

Contact Now

Add to Cart

Company Info.

AMC INDUSTRUAL DEVELOPMENT COMOANY LIMITED

Verified Supplier

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

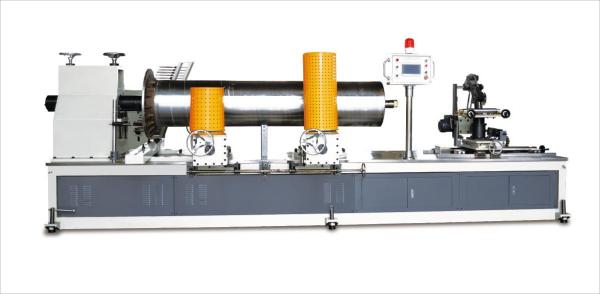

Four head type Paper Tube Production Line

Model: TSJG-500

Characteristics:

Used for making paper tube with inner diameter of 50-500mm and thickness 2-15mm;
According to different paper tube, production speed could be 0-30m/min;
Paper tube cutting length is controlled by sensor, easy operation;
Main motor is 30KW, made in Shanghai. RPM is adjustable;

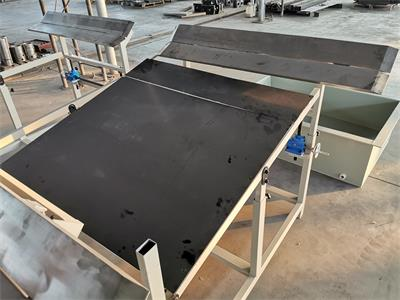

Cross type paper stand, pneumatic glue supply system;
Bottom paper with both gluing tank and lubricating tank;
The cutting table motor is Gear type speed reducer motor, brand is Oute, made in Shanghai;
Pneumatic control cutting table up/down;
Cutter lifting/down speed is controlled by air valve;
Cutting table moving on linear shaft, moving stably;
Frequency converter control the main motor;
PLC control and control through touch screen;
PLC brand is Delta, other electric use Chint brand products, pneumatic parts use Tianao brand product;

Specification:

TSJG-500 four head type paper tube production line
Inner diameter of paper tube	50-500mm
Thickness of paper tube	2-15mm
Paper layers	3-25 layers
Inner paper grammage	420-600gsm
Surface paper grammage	420-600gsm
Production speed	0-30 m/min Use 360-510gsm paper, inner diameter 76, thickness 3-8 mm, 4 to 13 layers of paper, speed can reach to 30 m/min
Main motor power	30KW
Cutting blade driving motor power	0.75KW
Total power	30.75KW, 380V, 50Hz, 3 phase, 81A 33.75KW, 220V, 50Hz, 3 phase, 140A 33.75KW, 440V, 50Hz, 3 phase, 70A
Cutter	Circular blade
Cutting accuracy	±3mm
Minimum cutting length	800mm
Length-control method	Sensor control
Wrapping head quantity	4 head
Glue Unit	Multilayer gluing type

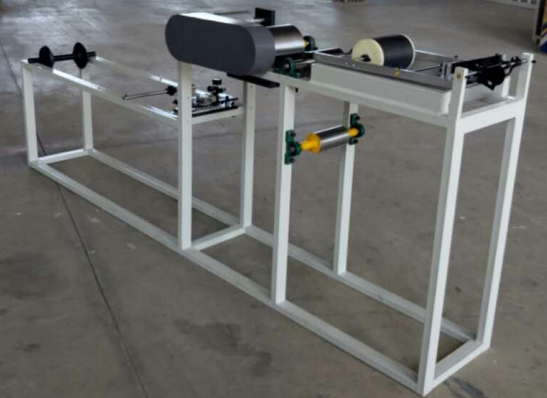

Paper Reel Stand	Cross type
Operator	2-3 persons
Head dimension	Ø294mm, height 360/720mm
Two heads distance	1150-1800mm
Dimension	23000x10000x2100mm
Weight	5800KG
Compressor Air Requirement	0.8MPa/1.2m3 (Customer Provide)

Transmitting system:

Control system:

Frequency converter	An Rui Ji brand
Main electric products	Chint brand
Sensor	Hu Gong brand
Pneumatic product	Tian Ao brand
Synchronous control	Pneumatic control
Cutting length control method	Proximity switch
PLC	Delta
Touch screen	Kun Lun Tong Tai brand

Regular belt width choosing:

Configuration:

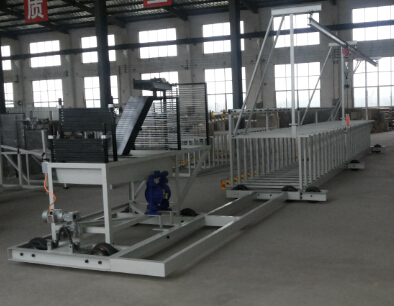

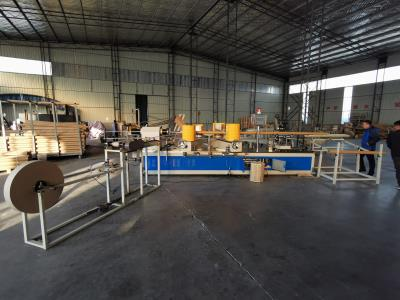

Photos of paper tube production line:
