Robust and Economical 1/2 Ton Manual Block Chain Hoist

Categories Chain Hoist
Brand Name: Jentan
Model Number: JTSK-0.5
Certification: CE;GS;EN;ISI;TUV
Place of Origin: China
MOQ: 1 piece
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500000pcs per year
Delivery Time: 7-60 days
Price: Negotiation
Chain Length: 10 feet
Hook Type: Latch hook
Certifications: CE, GS, TUV
Usage: Indoor and outdoor
Handle Type: Ergonomic
Operating Temperature: -10-50℃
Load Chain Size: 6x18mm
Lifting Height: 10 feet
Model: JTSK
Lifting Speed: Manual
Capacity: 1/2 ton
Original: China
N.W: 10KG
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Robust and Economical 1/2 Ton Manual Block Chain Hoist

JTSK Round Chain Hoist-Elevate Your Material Handling in Economical Way

When it comes to material handling, the JTSK Series Round Chain Hoist stands out as a premier choice for professionals seeking an economical chain hoist with reliability, efficiency, and durability. Designed to meet the rigorous demands of various industries, this chain hoist combines advanced engineering with top-tier materials to deliver exceptional performance.

Hand Chain Block Features

Simple Structure: The design of a hand chain block is usually simple, making it easy to understand and operate.

Easy to Operate: By manually pulling the hand chain, lifting and lowering can be easily controlled without the need for electricity or other energy sources.

Low Cost: Compared to electric hoists or other automated lifting equipment, the cost of a hand chain block is usually lower.

Easy Maintenance: Due to its simple structure, maintenance and repair of a hand chain block are relatively easy.

Application

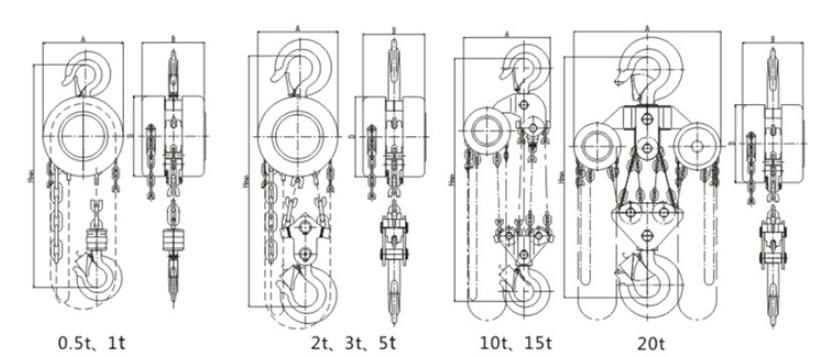

Parameters

ModelCapacity (T)Standard Lift (m)Running test (T)Effort required to lift max load(N)No. of falls of load chainLoad chain diameter (mm)Dimension A (mm)Dimension B (mm)Dimension C (mm)Dimension D (mm)Net weight (kg)
JTSK-0.50.52.50.7522116120108241208
JTSK-112.51.5304161421222814210
JTSK-1.51.52.52.25343181781393417816
JTSK-222.53314261421223414214
JTSK-3334.5343281781393817824
JTSK-5536.253812102101624821036
JTSK-883103923103561626421058
JTSK-1010312.53924103581626421068
JTSK-161632039261040019669210112
JTSK-202032839281058018982210155
Cheap Robust and Economical 1/2 Ton Manual Block Chain Hoist for sale
