Electric Driven TB Corrugated Rotary Cutting Creasing Slotting Machine B Type 1.5 kw

Categories Rotary Slotting Machine
Warranty: 1 Year
Type: Other
Applicable Industries: Manufacturing Plant, Printing Shops, Food & Beverage Shops, Other
Showroom Location: Egypt, Philippines, Pakistan, India, South Korea, South Africa
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Warranty of core components: 1 Year
Core Components: PLC, Engine, Motor, Pump
Condition: New
Application: APPAREL, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles, Corrugated paperboard
Packaging Type: Cartons
Packaging Material: Paper
Automatic Grade: Semi-automatic
Driven Type: Electric
Voltage: 380v
Power: 1.5kw
Place of Origin: Hebei, China
Brand Name: Tongbao
Weight: 2 KG
Key Selling Points: High Productivity
After-sales Service Provided: Engineers available to service machinery overseas
Model: TB480-2200
Wall diameter: 2147mm
Max.paper coverage area: 2000*1450mm
Finish speed: 0-60pieces/min
Power of main motor: 1.5kw
Certification: CE
Marketing Type: Ordinary Product
Packaging Details: Plastic film
Port: Tianjin
Supply Ability: 25 Set/Sets per Month
Price: $11,500.00/sets >=1 sets
MOQ: 1pc
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

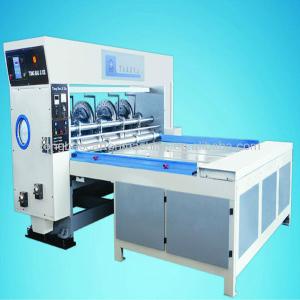

Electric Driven TB Corrugated Rotary Cutting Creasing Slotting Machine B Type 1.5 kw

TB Rotary separately cutting creasing and slotting machine (B type)


Function and characterisitcs:

1.Adopt the chain paper feeding way,stepless speed regulation control.

2.Optical control counter,to plan and design the order and the production quantities in advance.

3.Three groups for slotting,one group for angle cutting,two groups for partition paper,four groups for creasing.

4.Mechanical phase regulation,the scale will say it.

5.The height of slotting can add four-knife linkage regulation.

6.To adjust the axles and rollers,had chromium plating,polishing treatment.

7.The worktable can regulate the clutch,convenient for checking the size.


This machine can equipment with auto feeder.


Main technical parameter:

ModelTB480-2200TB480-2600TB53000TB530-2600
Wall diameter2147mm2547mm2147mm2547mm
Max.paper coverage area2000*1450mm2400*1450mm2000*1600mm2400*1600mm
Finish speed0-60pieces/min0-60pieces/min0-60pieces/min0-60pieces/min
Power of main motor1.5kw1.5kw1.5kw1.5kw
