Categories | Iron Remover Separator |
---|---|
Applicable Industries: | Energy & Mining |
Showroom Location: | Viet Nam |
Condition: | New |
Type: | Magnetic Separator, RCYD-6-20 |
Production Capacity: | 98% |
Place of Origin: | Shandong, China |
Brand Name: | GUOTE |
Voltage: | 220V/380V |
Dimension(L*W*H): | Size |
Weight: | 600 KG |
Warranty: | 1 Year, 3 Months |
Marketing Type: | New Product 2020 |
Machinery Test Report: | Provided |
Video outgoing-inspection: | Provided |
Warranty of core components: | 1 Year |
Core Components: | PLC |
Key Selling Points: | Energy saving |
Width: | 500-2000mm |
Color: | green or customers' requirements |
Power: | 2.2-5.5kw |
Local Service Location: | Viet Nam |
Certification: | ISO9001:2008 |
Packaging Details: | standard export container,20GP,40GP ,40HQ,FR container,in bulk, the spare parts in wooden case or according to the customer's requirements |
Port: | Qingdao |
Supply Ability: | 26000 Set/Sets per Year |
Price: | $1,998.00/sets >=1 sets |
MOQ: | 1 set |
Company Info. |
Weifang Guote Mining Equipment Co., Ltd. |
Verified Supplier |
View Contact Details |
Product List |
Features:
High magnetic field intensity, usually used in occasions with plenty of iron.
The wholly sealed structure makes the separator water-proof, dust-proof and corrosion resisting.
Made of rare earth NdFeB
High gauss
Energy saving
Easy to install and convenient to use.
High efficiency and stable performance.
Good operational reliability and flexibility

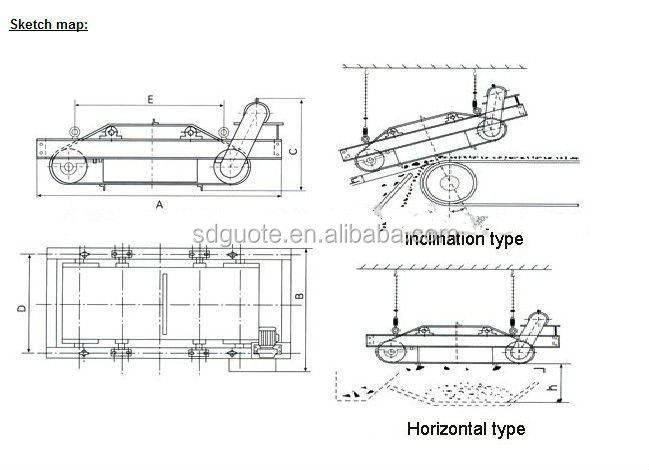

Mode | Usable belt width (mm) | Standard erection height (mm) | Mass (kg) | Overall dimension (mm) | Unload trigger spec. | Driving motor power (kw) | ||||
A | B | C | D | E | ||||||
RCYD-6 | 650 | 200 | 880 | 2100 | 950 | 420 | 888 | 900 | 2.7 | 2.2 |
RCYD-8 | 800 | 250 | 1790 | 2050 | 1105 | 650 | 1038 | 1280 | 2.7 | 2.2 |
RCYD-10 | 1000 | 300 | 3060 | 2240 | 1310 | 785 | 1238 | 1370 | 3.3 | 2.2 |
RCYD-12 | 1200 | 350 | 4680 | 2440 | 1585 | 875 | 1512 | 1350 | 3.3 | 4 |
RCYD-14 | 1400 | 400 | 6600 | 2700 | 1765 | 970 | 1690 | 1550 | 4.1 | 4 |
RCYD-16 | 1600 | 450 | 8060 | 2900 | 1965 | 1050 | 1890 | 1750 | 4.2 | 4 |
RCYD-18 | 1800 | 500 | 10250 | 3150 | 2230 | 1150 | 2150 | 1960 | 6.8 | 5.5 |
RCYD-20 | 2000 | 500 | 12850 | 3380 | 2460 | 1280 | 2380 | 2170 | 16 | 5.5 |

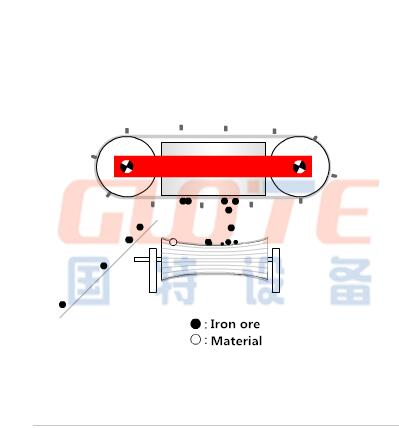

Brief Introduction:
Self-discharge permanent-magnet separator series RCYD is energy
economizing type separator equipment using the latest third generation rare-earth permanent-magnet material NdFeB
to form magnetic system which produces strong magnet field attraction.
This product series links up with transferring equipments to form a complete set to remove the iron magnetic materials
under weight of 0.1-25kg mixed among the non-magnetic materials.
