| Categories | Wound Dressing Machine |
|---|---|
| Place of Origin: | Shandong, China |
| Brand Name: | Ruikang |
| Model Number: | KR-QFT-A |
| Certification: | CE ISO |
| Packaging Details: | Standard exporting wooden cases packing or according to buyer's requirement |
| Supply Ability: | 10 Set/Sets per Month |
| Price: | $10,000.00 - $18,000.00/sets |
| Type: | Other |
| Condition: | New |
| Application: | Medical |
| Packaging Type: | case |
| Packaging Material: | Wood |
| Automatic Grade: | Automatic |
| Driven Type: | Electric |
| Voltage: | 220V/380V |
| Power: | 3.5KW |
| Weight: | 600 kg |
| Dimension(L*W*H): | 2.8X0.8X1.8m |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Company type: | manufacturer factory |
| Plaster size can be made by this machine: | 4x6cm, 10x10cm, 10x15cm, 10x20cm, 20x20cm, 10x30cm ect. |
| Port: | QingDao Port or as buyer's request |
| MOQ: | 1 |
| Company Info. |
| Heze Ruikang Machinery Co., Ltd. |
| View Contact Details |
| Product List |
We are manufactuer which located in heze city,shandong province of China.Welcome to visit our factory at any time.

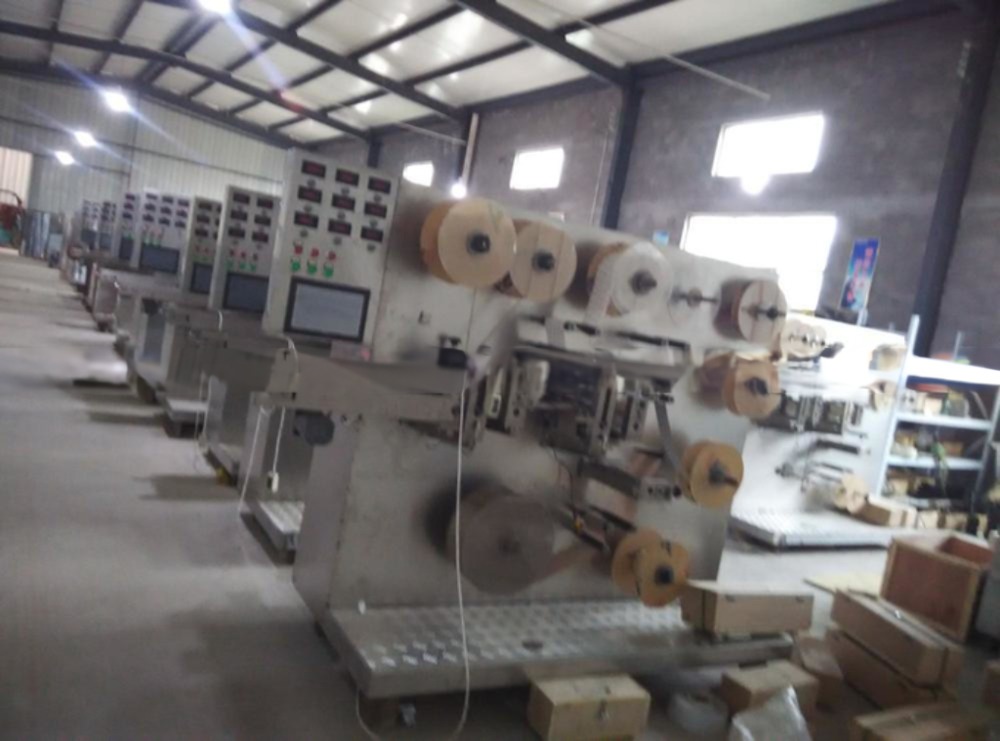

The wound dressing machine is a new computer control system, automatical high speed wound dressing making machine.Using advanced technology at home and abroad.In the operation of the equipment, computer monitor all the way.
Features:
1.High production speed: To replace the present wound dressing equipment low production efficiency and hiring huge volume of employees greatly. Only needs one operator.
2. PLC control system, 12 inch touch screen connection. software programming;Technology uses the overseas advanced technique, and the theory of our long-term practical experience in scheduling software programs.
Combined with automatic phase in the operation of the equipment.Adjust the position of absorbent pad automatically.Powder metallurgy high speed steel hobbing cutter.Stainless outer packing.
3.Change the mould only needs 30minutes, after cutter installed, input the size which needed on computer touch screen, and then continue production as usual.
4. Uses of magnetic powder brake, and magnetic powder clutch automatic constant tension control system, ensure the equipment running at the high speed stability.
Main Technical Parameters:
Machine Weight | 600kg |
Total power | 3.5KW |
Machine Dimension | 2.8MX0.8X1.8M |
Voltage | 220V or customized |
Production speed | 150-200pieces/minute |
|
