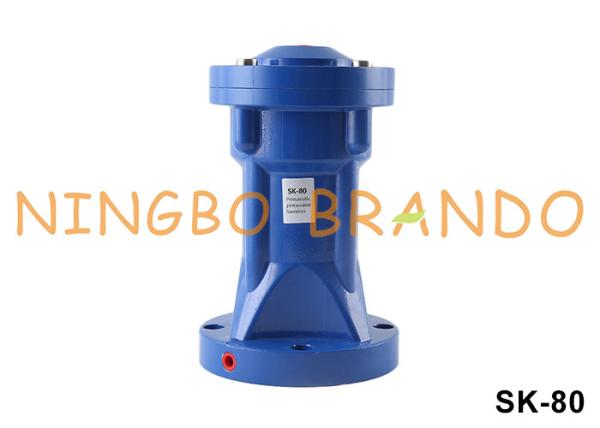

SK-80 SEISHIN Type Pneumatic Percussion Hammer Air Knocker SK80
This is SK-80 air knocker similar to SEISHIN. Pneumatic air knocker keeps on hammering without a break to remove powder clogging and adhesion in hoppers and pipes, which are popularly used for many applications in fields such as manufacturing, food processing and pharmaceuticals.
Technical Data:
| Model No | Working Pressure (bar) | Air Consumption (L/Time) | Impact Force (kgm/sec) |
| SK-30 | 3 to 7 | 0.028 | 1 to 1.5 |
| SK-40 | 3 to 7 | 0.082 | 3.3 to 5.1 |
| SK-60 | 3 to 7 | 0.228 | 7.1 to 10.8 |
| SK-80 | 3 to 7 | 0.455 | 19.3 to 29.5 |
| SK-100 | 3 to 7 | 1.012 | 44.5 to 67.9 |

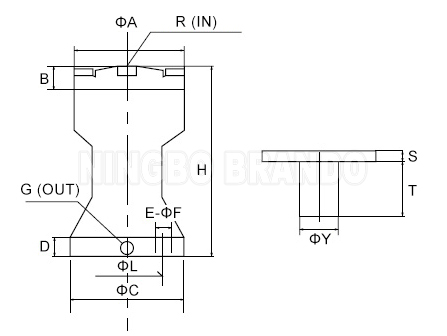

Main Dimension:
| Model No | ΦA | B | ΦC | D | E | ΦF | G | H | ΦL | S | T | ΦY | R |
| SK-30 | 65 | 15 | 70 | 10 | 4 | 9 | 1/8'' | 110 | 55 | 6 | 40 | 27.2 | 1/4'' |
| SK-40 | 90 | 22 | 95 | 16 | 4 | 11 | 1/4'' | 160 | 70 | 12 | 90 | 34 | 1/4'' |
| SK-60 | 120 | 30 | 140 | 16 | 4 | 15 | 1/4'' | 210 | 110 | 12 | 100 | 76.3 | 1/4'' |
| SK-80 | 139 | 40 | 150 | 18 | 4 | 17 | 3/8'' | 250 | 120 | 14 | 110 | 76.3 | 3/8'' |
| SK-100 | 176 | 44 | 210 | 24 | 6 | 21 | 3/8'' | 328 | 170 | 22 | 145 | 114.3 | 3/8'' |

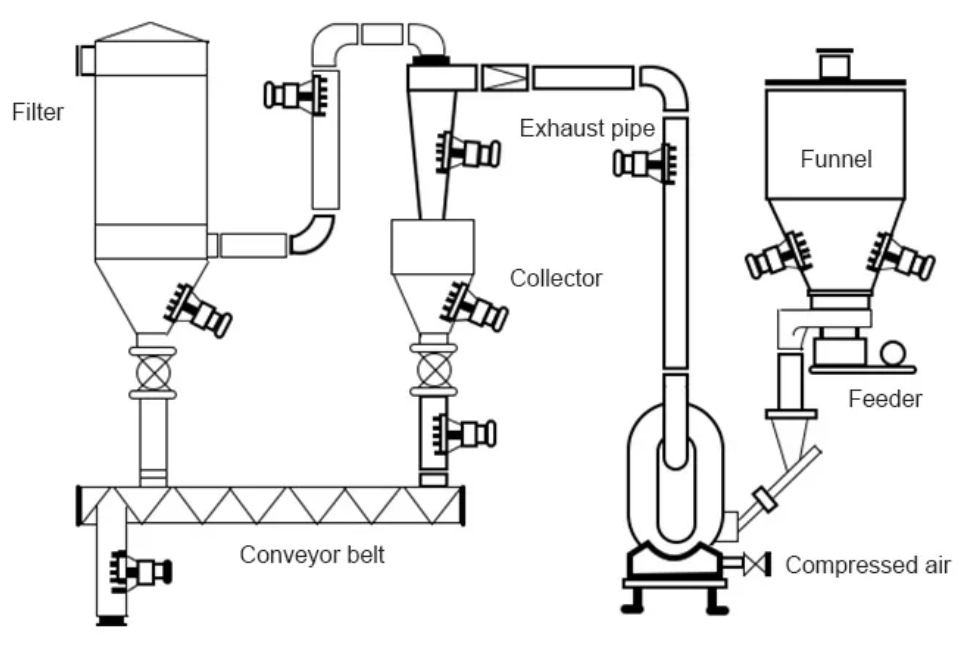

Installation Examples:
Our Production:
Related Products:
 |  |

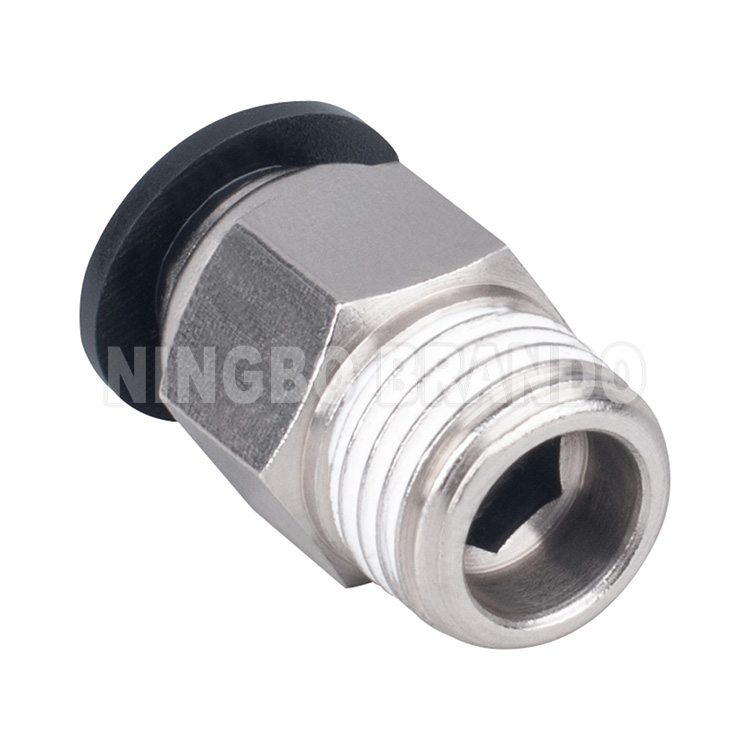

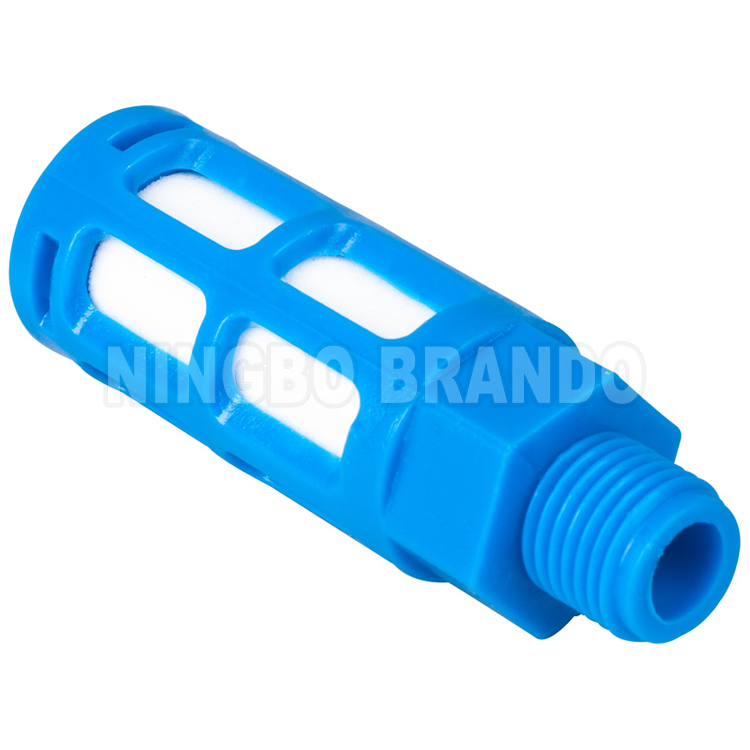

| Pneumatic Fitting | Pneumatic Silencer |
Similar Products:
 |  |  |
| Pneumatic Ball Vibrator | Pneumatic Turbine Vibrator | Pneumatic Roller Vibrator |
