ASTM A403 WP304L Stainless Steel SPECIAL TEE

ASTM A403 WP304L STAINLESS STEEL SPECIAL TEE

Product Information

An ASTM A403 WP304L stainless steel special tee refers to a specialized type of tee fitting made from stainless steel grade 304L and conforming to the ASTM A403 standard.The ASTM A403 specification covers the requirements for wrought austenitic stainless steel fittings for pressure piping applications. This standard ensures that the special tee meets specific quality and performance standards.

Tee Design: The special tee has a T-shaped design with one inlet and two outlets. The inlet is connected to the main pipeline, while the outlets provide branches perpendicular to the main line at a 90-degree angle.

ASTM A182 F304 Mechanical Properties

ASME B16.11 forged tee is a three-way fitting used to make perpendicular connections to the pipe. The three outlets of the forged tee may be furnished with either socket welding (SW) end or threaded (THD) end. The forged tees can be further classified as straight type (all three outlets are the same pipe size) or reducing type (branch outlet is a smaller pipe size). ASME B16.11 SW tees are available in pressure rating Class 3000, 6000, and 9000; ASME B16.11 THD tees are available in pressure rating Class 2000, 3000, and 6000.

Standards & Materials: ASTM A182 F304

ASTM A182 F304 is a forging material specification for 304 grade stainless steel and is used for manufacturing bare forgings or gorged and machined products for applications involving high temperature service.

ASTM A182 F304 Chemical Composition (%)

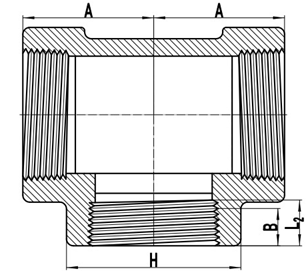

ASME B16.11 Dimensions of Forged Straight Tee with Threaded (THD) Ends

ASME B16.11 forged tee with threaded ends

General Note: all dimensions are in millimeter

Note: A: center-to-end of tee; H: outside diameter of band; G: minimum wall thickness; B: minimum length of perfect thread; L2: effective length of external thread.

Kasugai Shanghai, a subsidiary of Kasugai Group headquartered in Osaka, Japan, was established in 2003 as a representative office in Shanghai, China, and was upgraded to a company in 2008. Kasugai Shanghai serves as an important force of Kasugai Group in Asia, and over the past 20 years, it has become a key player in the industrial pipes, fittings, flanges, and valves market.

Kasugai Shanghai leverages the resources and manufacturing capabilities of local suppliers in China to provide a wide range of products, including stainless steel, carbon steel, duplex/super duplex steel, alloy steel, nickel alloy, and titanium alloy, according to various international standards such as ASTM/ASME/ANSI, JIS, EN, and DIN. The company also has a local support team and an on-site quality inspection team to ensure that products meet the specifications and quality requirements of customers.

With the support of high-quality local suppliers and a strong commitment to customer satisfaction, Kasugai Shanghai strives to provide reliable products and services to customers in Asia and beyond. Kasugai Group's establishment of Kasugai Shanghai and other international operations demonstrates their proactive approach to globalization and their commitment to meeting the needs of customers in a rapidly changing global market.
