Plasma Linear Paper Carton Surface Treatment Machine For Double-Wall Carton

Plasma Linear Paper Carton Surface Treatment Machine For Double-Wall Carton

Plasma Linear Paper Carton Surface Treatment Machine For Double-Wall Carton
Plasma Linear Paper Carton Surface Treatment Machine For Double-Wall Carton
Categories Paper Processing Machinery
Brand Name: PRINTYOUNG
Model Number: PRY-MP10A , PRY-HP20A , PRY-HP30A
Certification: CE
Place of Origin: Zhejiang, China
MOQ: 1 Set
Price: US 2000 - 5000 Set
Payment Terms: T/T
Supply Ability: 30 Set/Sets per Month
Delivery Time: 30 days
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Warranty: 1 Year
Weight: 20 kg , 55 kg , 60 kg
Applicable Industries: Manufacturing Plant
Showroom Location: Egypt, Italy, Morocco, Algeria, South Africa
Condition: New
Application Range: Linear Carton
Nozzle Quantity: 1 , 2 , 3
Handling Width: 6 - 10 mm , 6 - 10 mm x 2 , 6 - 10 mm x 2
Input Power: AC 220V (±20%)
Input Air: 0.1 - 0.2 Mba , 0.3 - 0.4 Mba , 0.4 - 0.6 Mba
Total Power: 800 VA , 800 VA x 2 , 800 VA x 3
Overall Dimension: 230 * 580 * 380 mm , 600 * 400 * 1000 mm , 600 * 400 * 1000 mm
Contact Now
Company Info.
Shanghai Printyoung International Industry Co.,Ltd
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Plasma Linear Paper Carton Surface Treatment Machine For Double-Wall Carton

Plasma Surface Treatment Machine
Features
1.Prevent Adhesive & Bonding Break
Improve surface tension,prevent adhesive & banding break,it used to lamination / UV Coating etc.By using cold glue or common adhesives,it can reduce glue consumption and cost.
2.Flexible Installation
Equipped with folder gluer machine / ink jet printer / assembly machine and making boxes machine,in processing online.
3.Safe Protections
Multiple protection switches,fault alarm,has obtained the CE certification standard.
4.Best Tension
To ensure a firm bond,the surface of the product requires excellent adhesion to achieve the desired results. Plasma surface treatment in KQ can help the surface of material gain 40mn/m surface energy, so as to increase the standard cold glue sticking ability.
5.Kinds of Nozzle
Different sizes and types of nozzles can be selected according to different products.The installation is simple and convenient.Even at the speed of 200m/min,the surface treatment of the product can still be synchronized.
6.Direct Injection Nozzle
Handling width is 6-10mm,it used to lamination/UV coating etc.,prevent adhesive &bonding break.
Technical Parameters

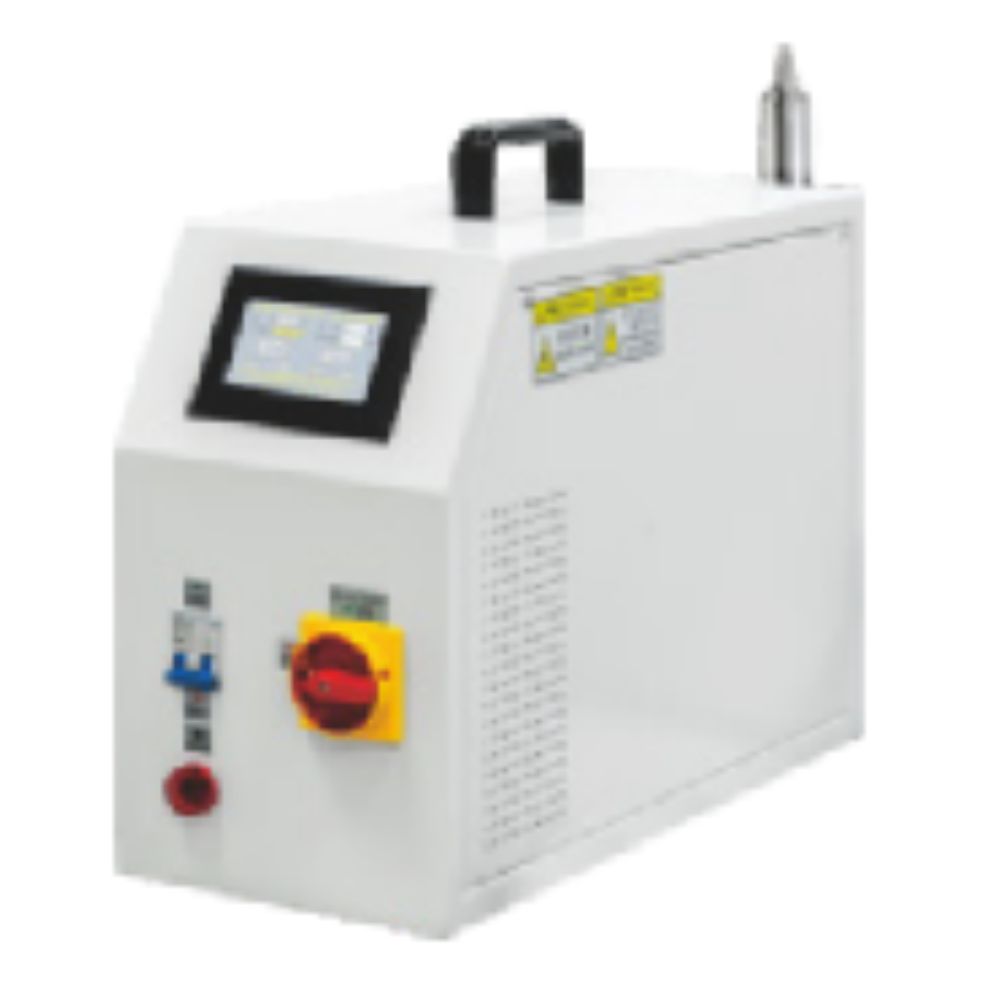

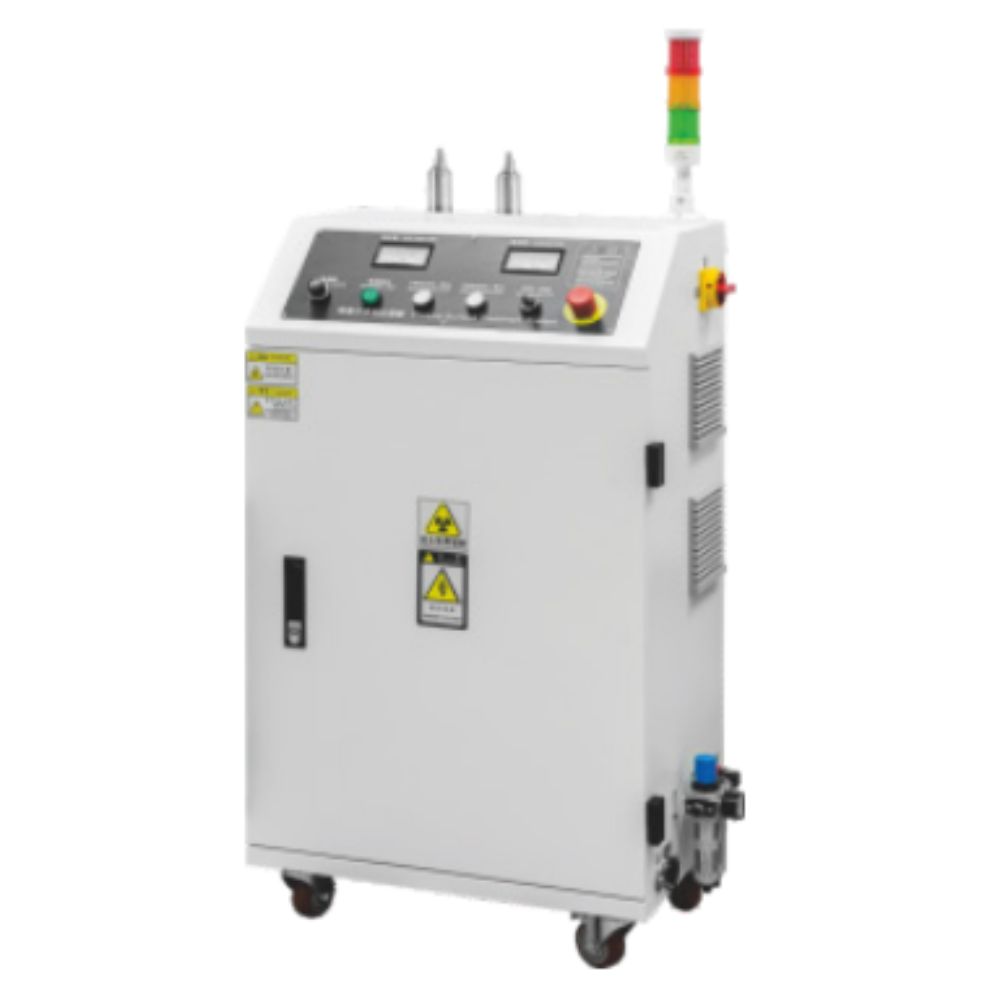

Plasma Surface Treatment Machine
Model
PRY-MP10A
PRY-HP20APRY-HP30A
Application Range
Linear Carton
Linear Carton , Double-Wall Carton , Large Size Gluing FlapLinear Carton , Double-Wall Carton , Large Size Gluing Flap , Automatic Lock Bottom Carton
Nozzle Quantity
1
23
Handling Width
6 - 10 mm
6 - 10 mm * 26 - 10 mm * 3
Input Power
AC 220V (±20%)
AC 220V (±20%)AC 220V (±20%)
Input Air
0.1 - 0.2 Mba
0.3 - 0.4 Mba0.4 - 0.6 Mba
Total Power
800 VA
800 VA * 2800 VA * 3
Weight
20 KG
55 KG60 KG
Overall Dimension
230 * 580 * 380 mm
600 * 400 * 1000 mm600 * 400 * 1000 mm
Applications
For folding cartons which are metalized,with UV coating,or with lamination,apply plasma surface treatment system with standard cold glue instead of expensive special glue,we can achieve perfect gluing quality and also reduce production cost.
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training.You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.
And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.
If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
