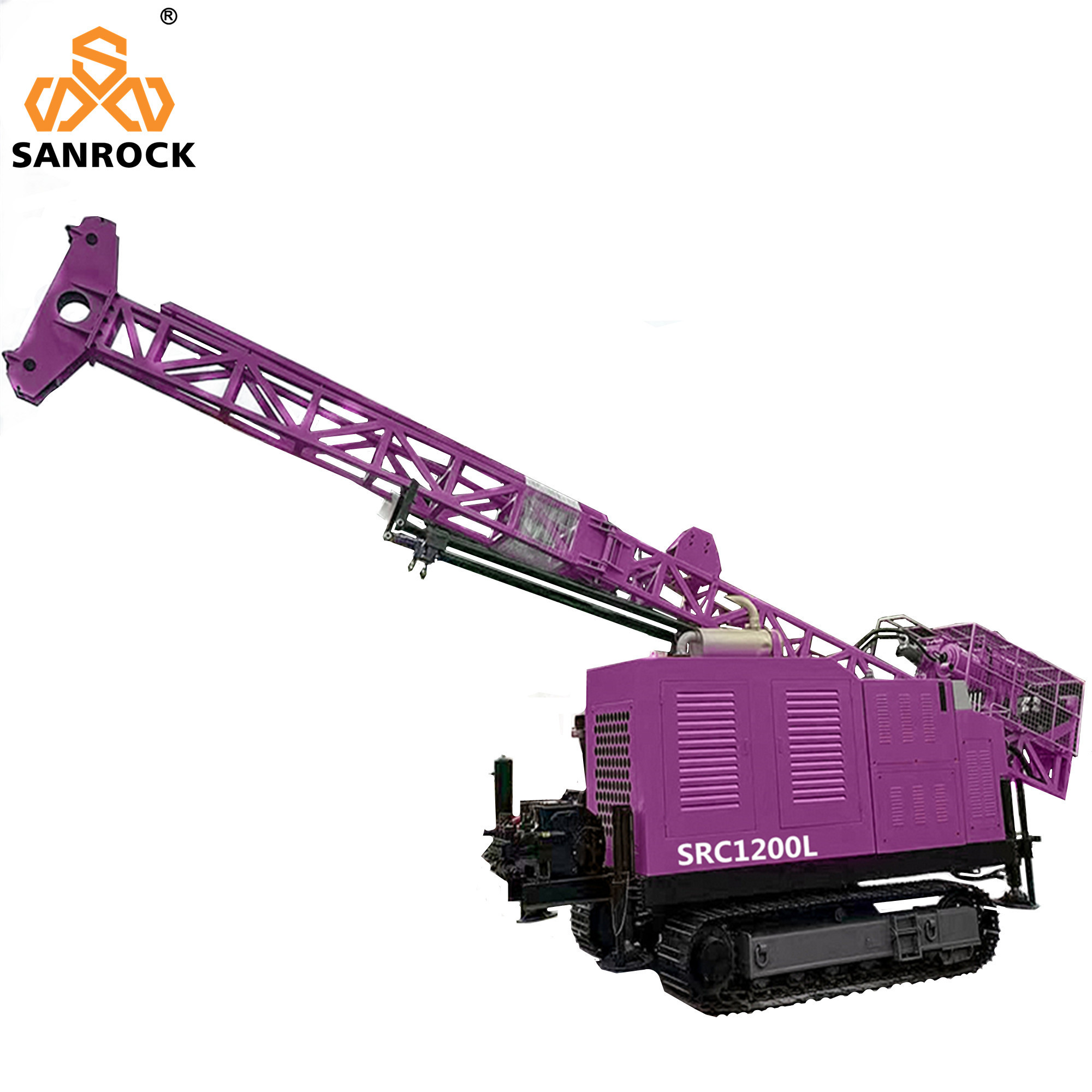

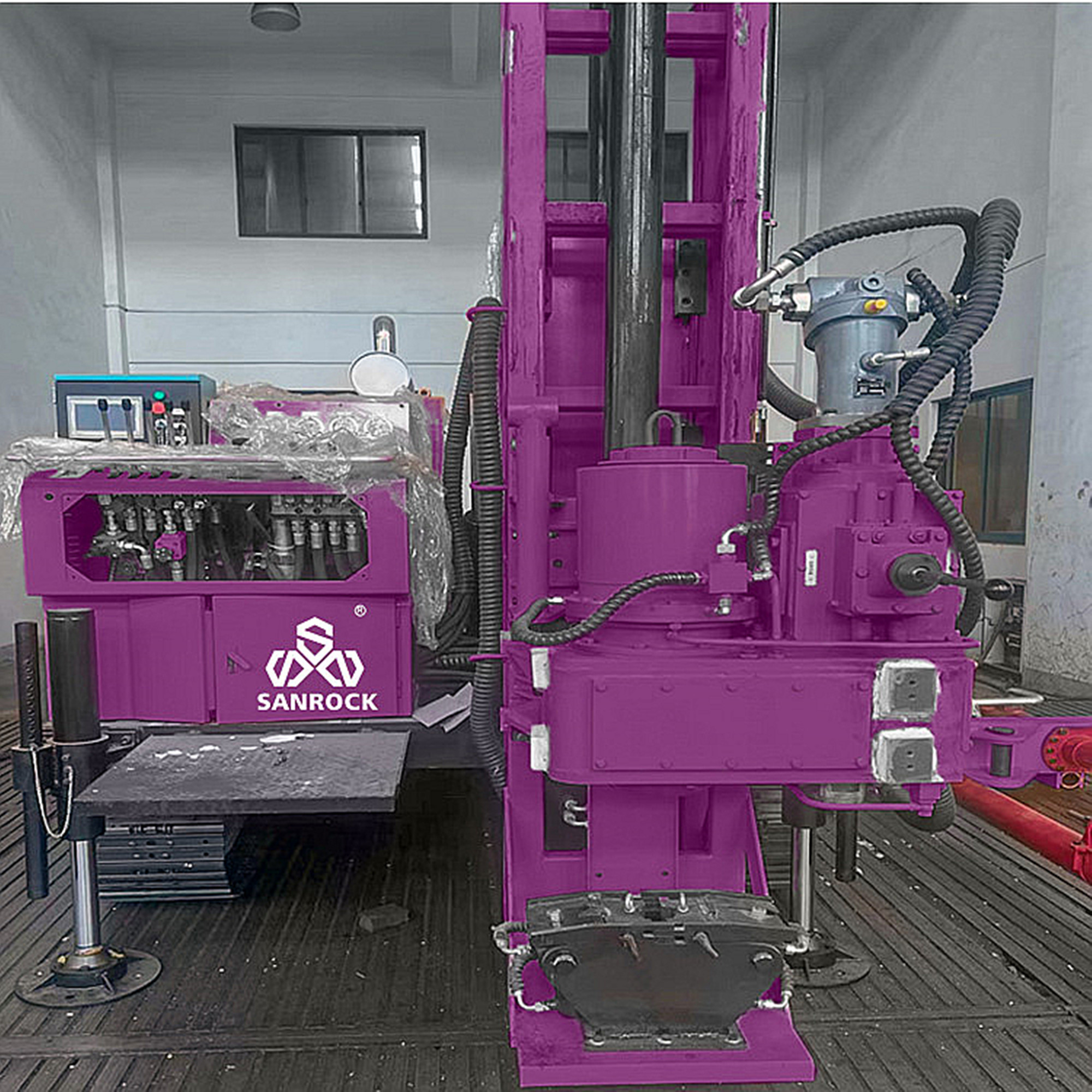

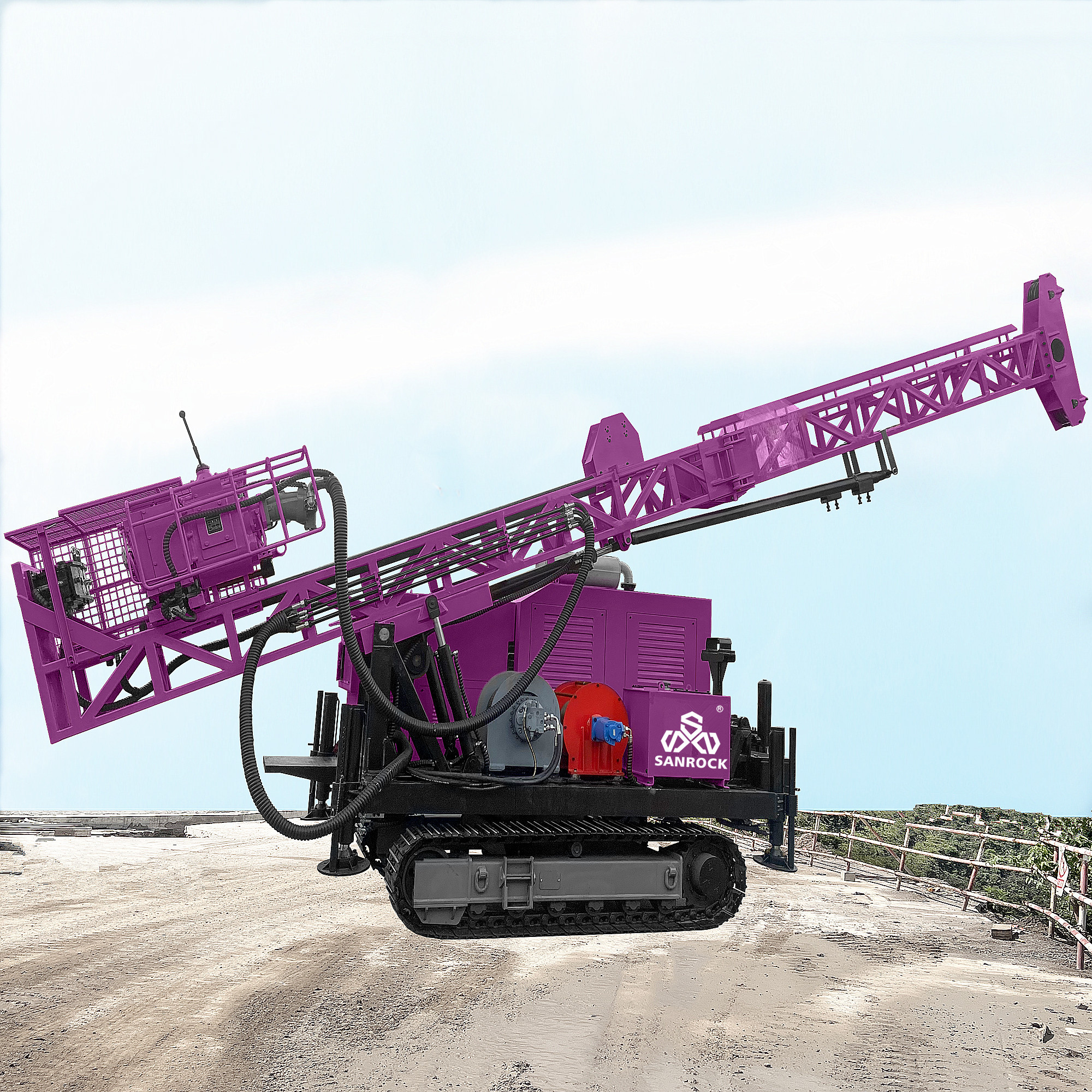

Geotechnical Core Drilling Rig Hydraulic Exploration Equipment Core Drill Rig For Sale

Geotechnical Core Drilling Rig Hydraulic Exploration Equipment Core Drill Rig For Sale

Geotechnical Core Drilling Rig Hydraulic Exploration Equipment Core Drill Rig For Sale

It can be widely used in many fields such as resource exploration of hydrology wells, coalbed methane, shallow layer of shale gas, terrestrial heat, etc,
Drilling rig is multifunctional, it can be used with mud pump.The drilling rigs are not only designed for water drilling. They can be used in all conditions based on pore-forming purpose.

Features
1.It has long stroke which is helpful to reduce the rod reversion frequency, avoid coring
block, and improve productivity.
2.It has a simple structure, a light weight and is convenient to remove, so as to make the
3.replacement process easily.
4.Its operation is concentrated, simple, convenient, flexible and reliable, so as to reduce
the labor intensity a lot.
5.It needn’t be provided with a special inclined tower when drilling inclined holes. It can
also realize raising two rods at one time.
6.It is convenient and fast to mount and install the rig. No specialized drill tower is needed
to allocate which has cut the preparation time largely.
7.It has several choices of the chassis, such as skid / trailer / crawler mounted(as the
customers’ requests).

Products Description

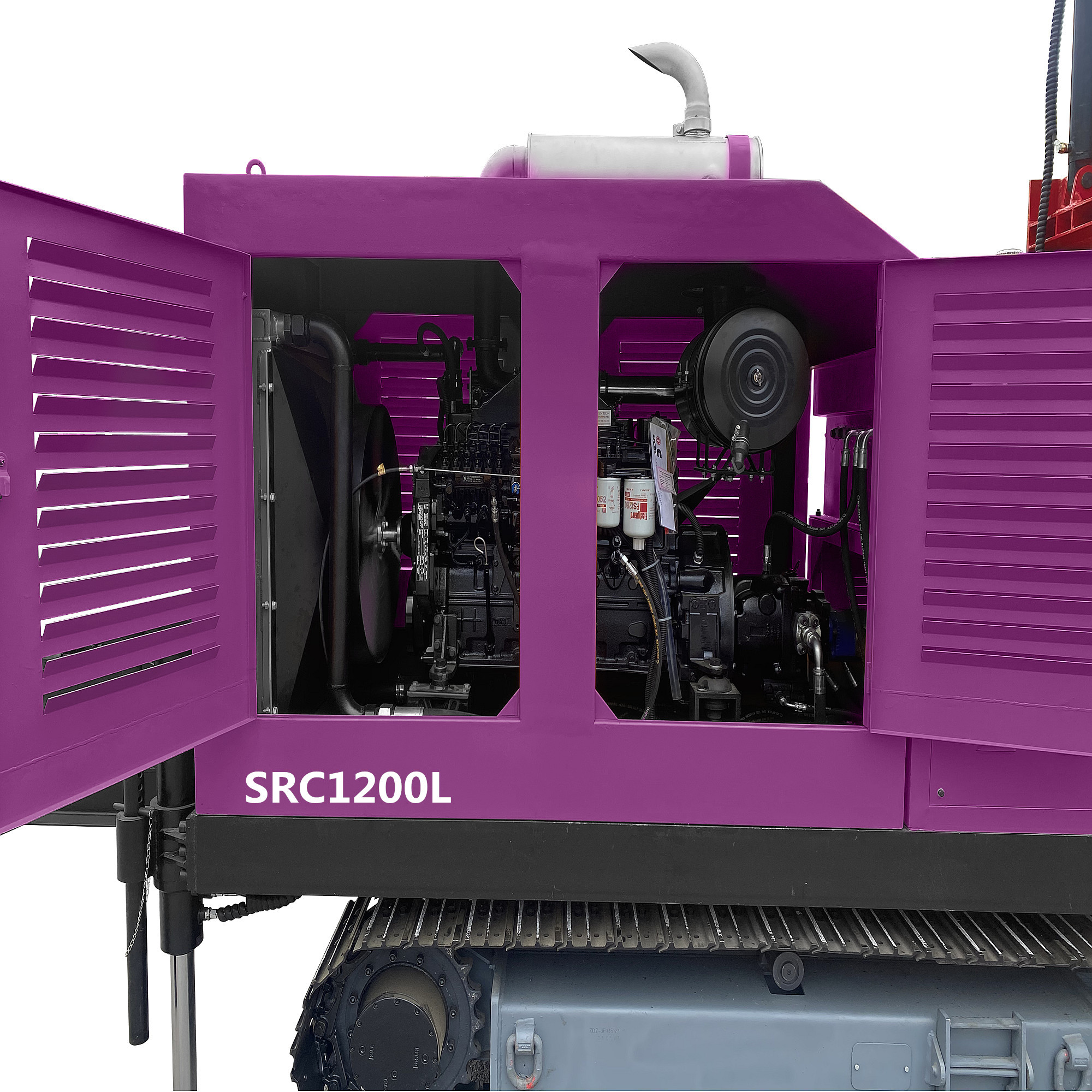

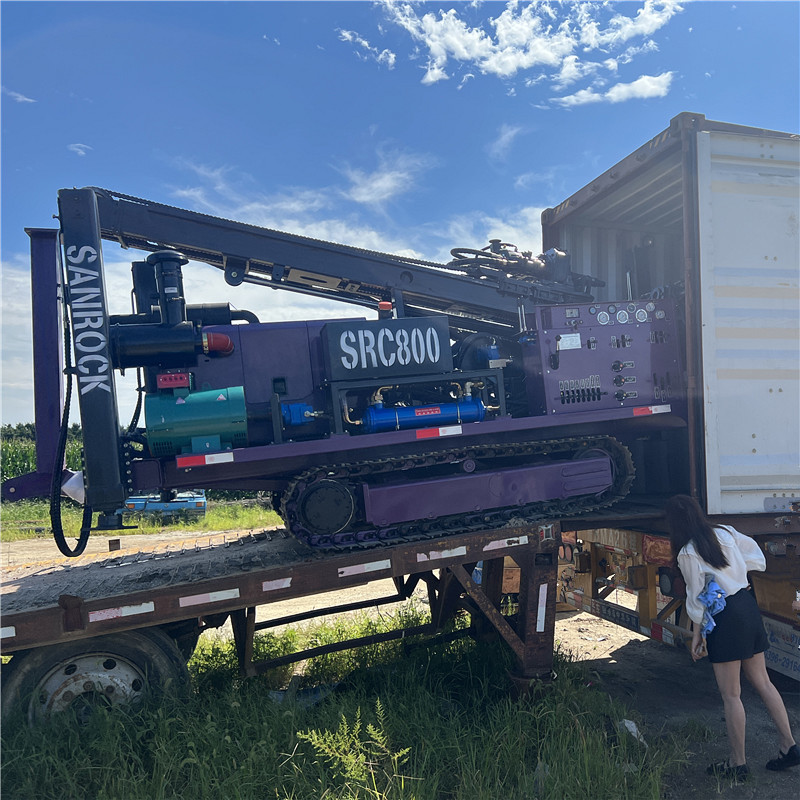

Model SRC800L SRC1200L Mud pump model BW-160 BW-160 Diesel engine Cummins132kw Cummins142kw Borehole diameter/depth NQ:900 m /HQ:700m /PQ:450m NQ:1200 m /HQ:850m /PQ:600m Drilling angle 0--90° 0--90° Drill head feeding stroke 3500mm 3500mm Grade I 120- 160RPM 100-140RPM File II 230-310RPM 210-300 RPM Grade III 480-650RPM 437-636 RPM Grade IV 900- 1150RPM 750-1100RPM Max torque 4000Nm 5200Nm Drill head Max. Thrust force 108KN 108KN Drill head Max. Lifting capacity 55KN 55KN Main hoist Max. Lifting capacity 71KN 71KN Main hoist Lifting speed 40m/min 40m/min Assist hoist Max. Lifting capacity 12KN 12KN Assist hoist Lifting speed 120m/min 120m/min Dimension 4200*2100*2400mm 4200*2100*2400mm Weight 10000kg 11500kg

Company Profile

1.What can you buy from us?
DTH drilling rig,core drilling rig,reverse circulation drilling rig ,highway pile driver,solar pile driver ,
anchor pile driver,rotary drill rig ,Top Hammer drill rig,underground jumbo drill rig ,DTH hammer,drill rod,
screw air compressor,water well drilling rig,truck mounted water well drilling rig,screw air compressor,
piston air compressor,pneumatic rock drill ,drill bit,tricone bit ,spare parts.

2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.

3.How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping.
Shipping efficiency depends on country and city you want to ship to.
For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.

4.How is your quality control?
A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.

Quzhou Sanrock Heavy Industry Machinery Co., Ltd.
