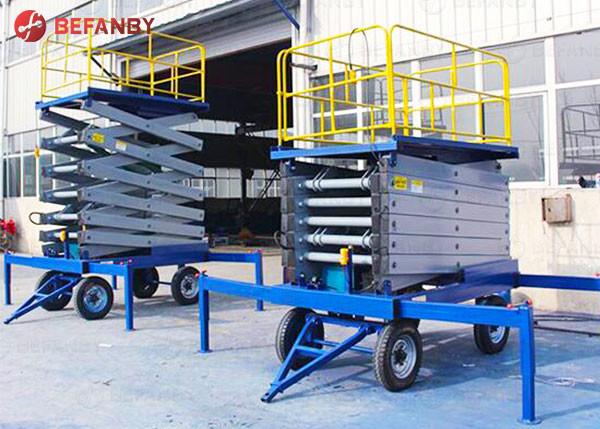

Steerable Hand Operated Scissor Lifting Table

Product Description

The traction lifting platform is mainly composed of a bracket, a lifting mechanism and an electrical control system. Among them, the bracket is the supporting force of the traction lifting platform, ensuring the stability and safety of the entire equipment.
The traction lifting platform has various functions and can realize operations such as vertical rise, horizontal movement and multi-point parallel control. Traction lifting platforms also have many advantages.
First of all, it can be customized according to actual needs and adapted to the needs of different work scenarios. Secondly, the traction lifting platform has the characteristics of stable operation, low noise, and easy operation, providing convenience and comfort to workers.

Product Details

Product Parameter

Load Capacity	500kg
Capacity-Extension Deck	110kg
Max Number of Workers	4
Max Working Height	8m
Max Platform Height	6m
Extension Deck Size	0.9m
Min Ground Clearance(Stowed)	0.1m
Min Ground Clearance(Elevated)	0.015m
Wheelbase	1.87m
Min Turning Radius(Inside)	0m
Min Turning Radius(Outside)	2.4m
Lifting Motor/Driving Motor	24v/4.5kw
Battery	4×6V/200Ah
Charger	24v/30A
Max Grade Ability	25%
Self Weight	2250kg

Product Feature
