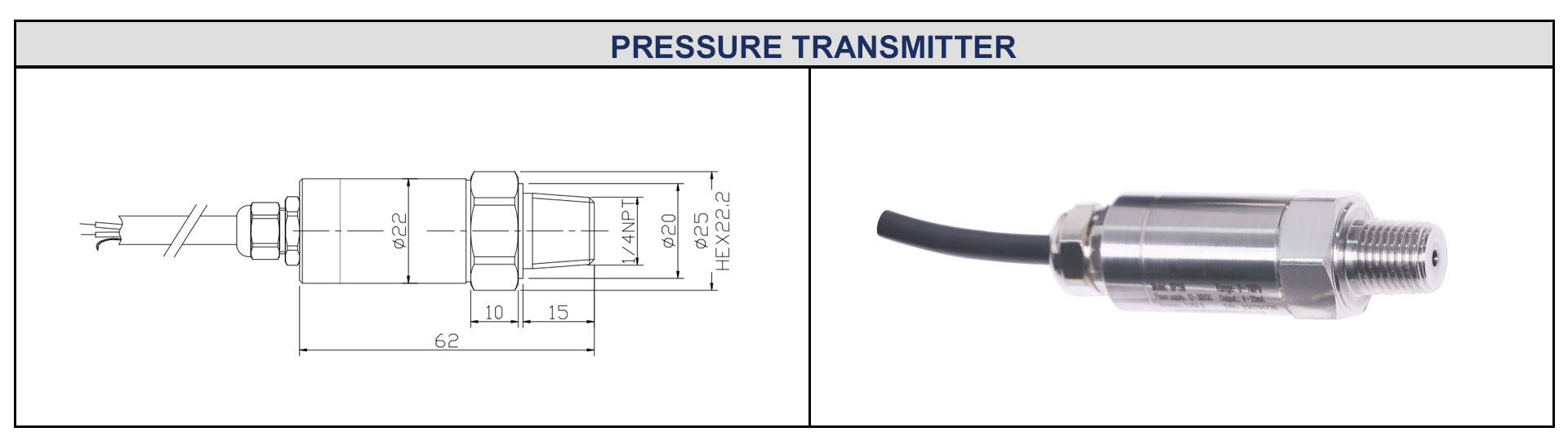

BP156 Pressure Transmitter
Introduction of pressure transmitter sensor:
BP156 pressure transmitter sensor is a cost-effective product
specially developed for air compressors and refrigeration
equipment. It integrates the latest technology and is equipped with
high-performance PCB circuits developed by our company.Each product
has undergone rigorous aging and testing, and has independent
inspection reports, and has been widely used in other fields.
Product Features of pressure transmitter sensor:
1. Wide measuring range, stainless steel structure, diverse
pressure interface forms
2. Compact and lightweight design
Applications of pressure transmitter sensor:
1. Pressure measurement of non-corrosive gases and liquids with
316L stainless steel.
2. Applied in the marine and aviation industries.
3. Used in industrial on-site processes such as petroleum,
chemical, metallurgy, power generation, and hydrology.
4. Utilized in hydraulic and pneumatic control systems.
| Performance Parameters of pressure transmitter sensor: | |
| Measurement Range | 0kPa ~ 10kPa…20MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability& Hysteresis | 0.02%F.S(Typ.) 0.05%F.S(Max.) |
| Long-Term Stability | ±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.) |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Compensation Temperature | 0-70ºC(≤10mpa,customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex ia IIC T6 Ga |
| Protection Rating | IP65 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.25kg |
| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V | ||
| 0/1~10V | ||
| 0.5~4.5V | 5VDC |

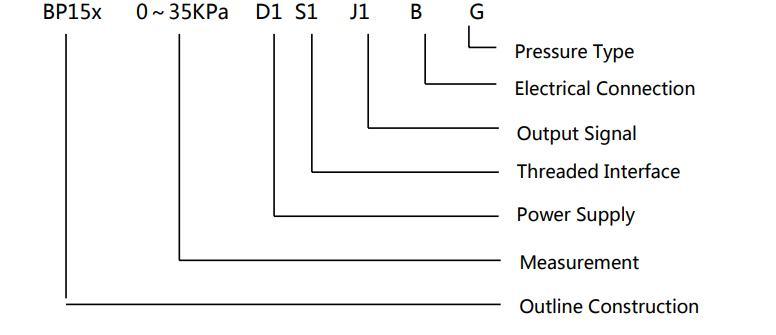

| Selection Examples |
| Ordering tips |
1. When selecting the product, please ensure that the tested medium
is compatible with the contact part of the product.
2. When placing an order, please note that explosion-proof products
do not include digital display heads.
3. To ensure the reliable operation of the product, you are advised
to install lightning protection devices on site and ensure that the
product and power supply are grounded reliably.
4. The pressure transmitter cable is polyvinyl chloride, the
default length of the liquid level cable is 1.5m, and there are
three materials to choose from. If there are no special
instructions, polyethylene cable materials can be used. If you need
a different cable material, please specify it in the order form.
5. In case of special requirements such as strong vibration,
instantaneous impact force, strong electromagnetic or RF
interference, please inform us and indicate in the order.
| Order Guide of pressure transmitter sensor | |||||||||
| BP15X | Analog Pressure Transmitter | ||||||||

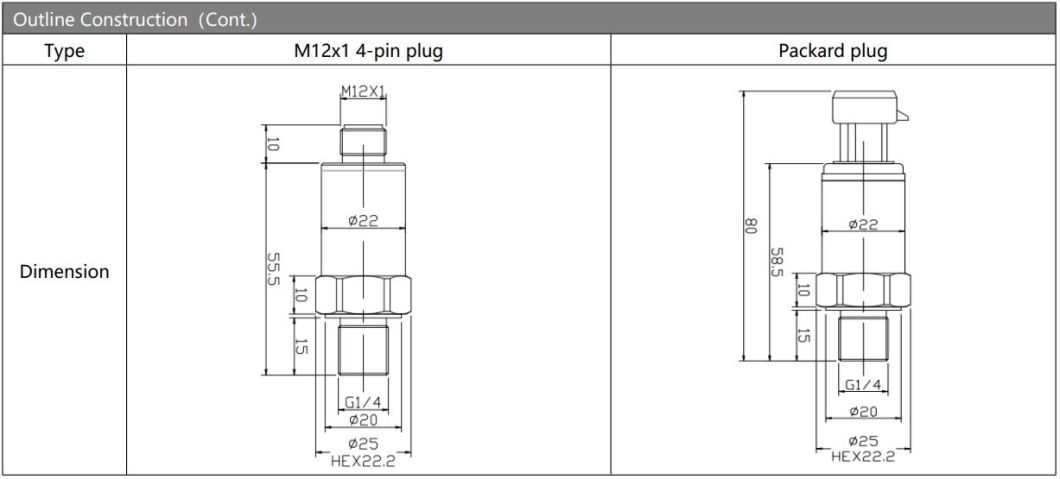

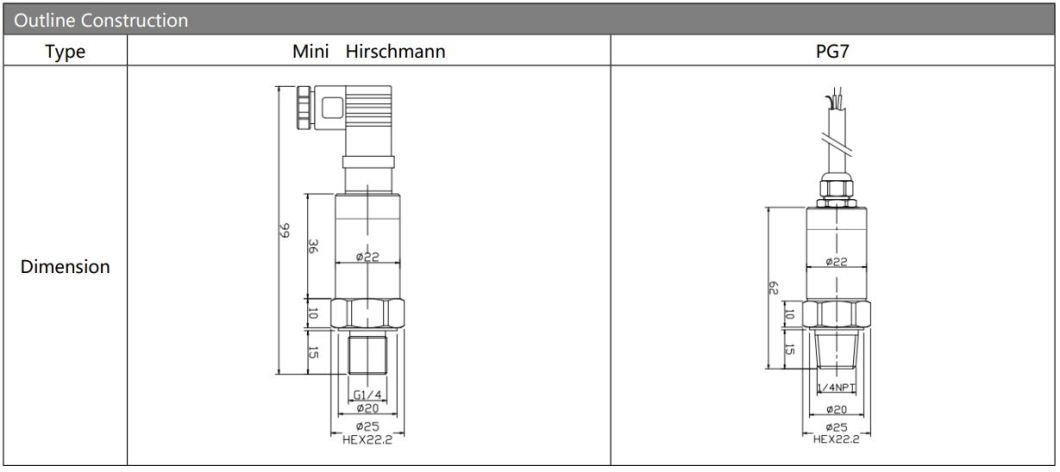

| Code | Outline Construction | ||||||||
| 5 | Packard plug | 6 | Sealed Direct Output Cable 1.5 meters | ||||||
| 7 | Mini Hirschmann Connector | 8 | Large Hirschmann Connector | ||||||
| Measurement Range | 0kPa ~ 10kPa…5MPa | ||||||||
| (0-X)Kpa or MPa | X: Indicates the Actual Measuring Range | ||||||||
| Code | Power Supply | ||||||||
| D1 | 24VDC | ||||||||
| D2 | 5VDC | ||||||||
| D3 | Other | ||||||||
| Code | Output Signal | ||||||||
| S1 | 4~20mADC | S5 | 0~20mADC | ||||||
| S2 | 1~5VDC | S6 | 0~10VDC | ||||||
| S3 | 0~5VDC | S7 | 0.5~4.5VDC | ||||||
| S4 | 0~10mADC | ||||||||
| Code | Pressure Connection | ||||||||
| J1 | M20×1.5 | ||||||||
| J2 | G1/2 | ||||||||
| J3 | G1/4 | ||||||||
| J4 | 7/16-20UNF | ||||||||
| J5 | Others(¢50.4 Flange) | ||||||||

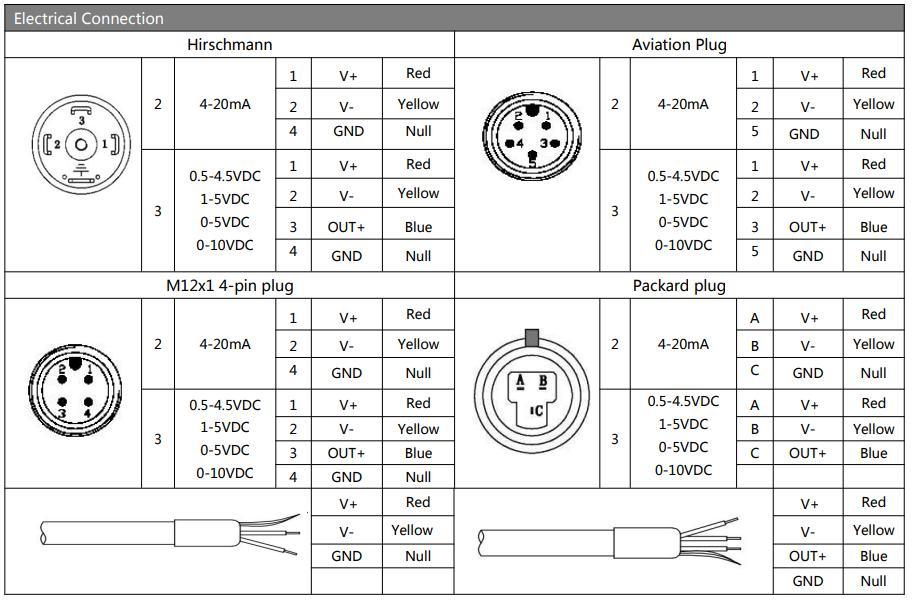

| Code | Electrical Connection | ||||||||
| B1 | Hirschmann | ||||||||
| B2 | PG7 | ||||||||
| B3 | Cable Sealed Outlet 1.5 meters | ||||||||
| B4 | Other | ||||||||
| Code | Pressure Type | ||||||||
| G | Gauge Pressure | ||||||||
| A | Absolute Pressure | ||||||||
| S | Sealed Reference Pressure | ||||||||
