280m Depth Truck Mounted Water Well Drilling Rig 210HP Load Vehicle Engine

Product Description

Unique in the field of groundwater resource exploration, the RCF280T truck mounted water well drilling rig is designed to provide exceptional performance and flexibility. Its superior power allows it to easily reach drilling depths of 280m and can handle a variety of drilling tasks with diameters between 140 and 350 mm. The most striking thing is that the machine not only has mud pump and air compressor drilling functions, but also provides personalized solutions for different types of rock formations. The mud pump drilling method is suitable for softer rock formations, while the air compressor drilling method is more suitable for harder rock formations. This unique design allows the truck mounted water well drilling rig to better cope with various rock formation challenges and ensure the successful completion of drilling tasks. .

product Specifications

Product Features

The RCF280T is a truck - mounted drilling machine designed for drilling tasks in the diameter range of 140 - 350 mm. It can drill to a maximum depth of 280m, has a feed stroke of up to 6,600 mm, and has good 30° slope climbing capabilities. The driving speed can reach 80 km / h, the wind pressure range is 1.7 - 3.0 MPa, and the air consumption is between 17 - 35 cubic m / min. The diameter of the drill pipe is 89 / 102 mm, the length is optional 3 or 6m, it has a lifting force of 18 tons, a rotation speed of 40 - 70 rpm, and a rotation torque of 4500 - 6000 Newton meters. BW250 mud pump is optional. Equipped with a Dongfeng truck, the engine power is 210 horsepower, the drive mode is 6X4, and the right - hand steering wheel is optional. Equipped with 30 / 24, 30 cubic m / min, 24 bar air compressor and 295 kW Yuchai engine to ensure efficient operation.

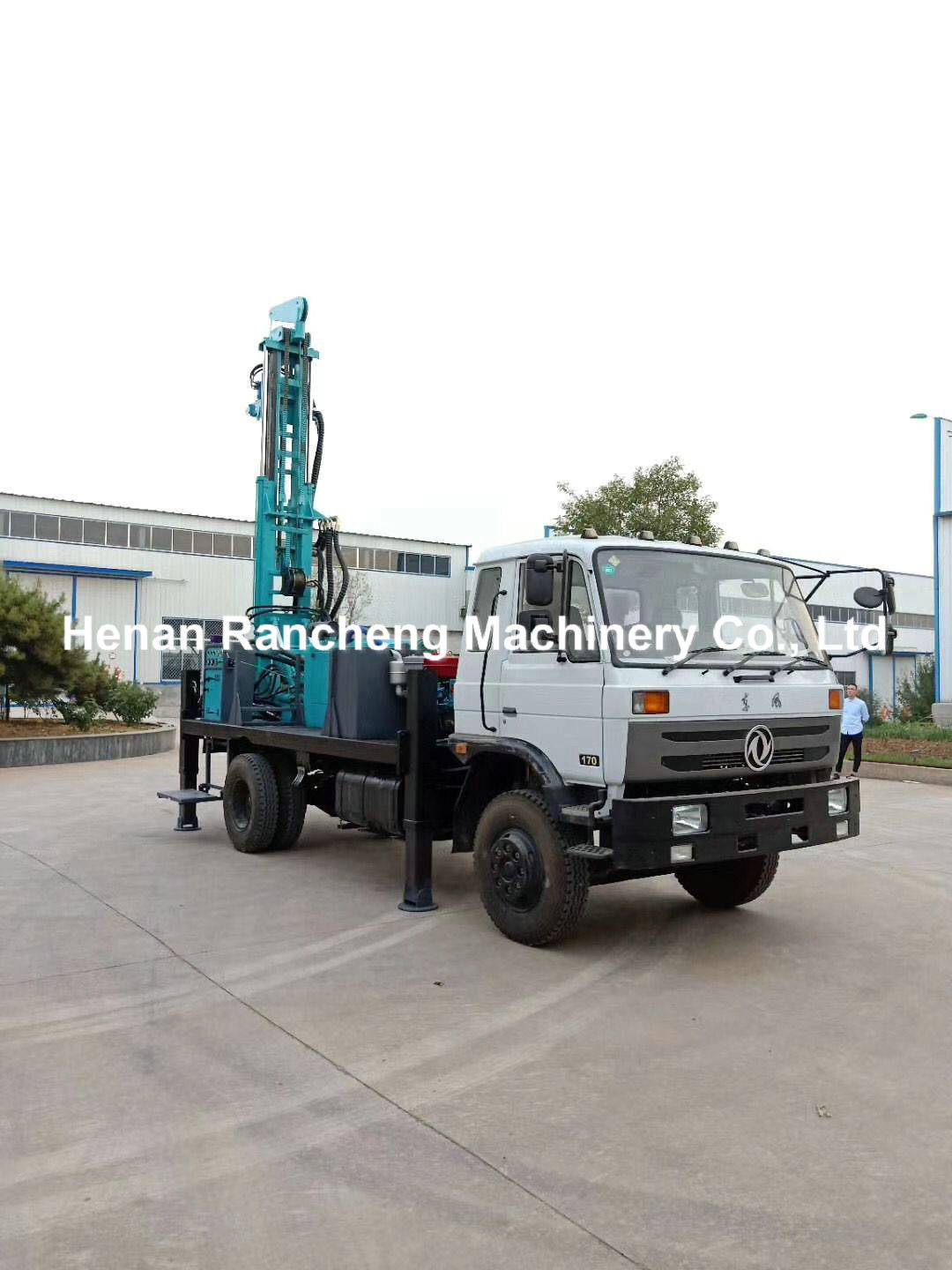

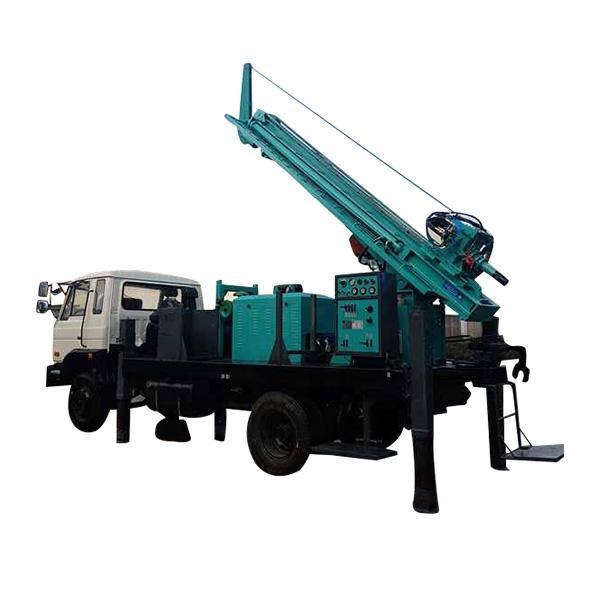

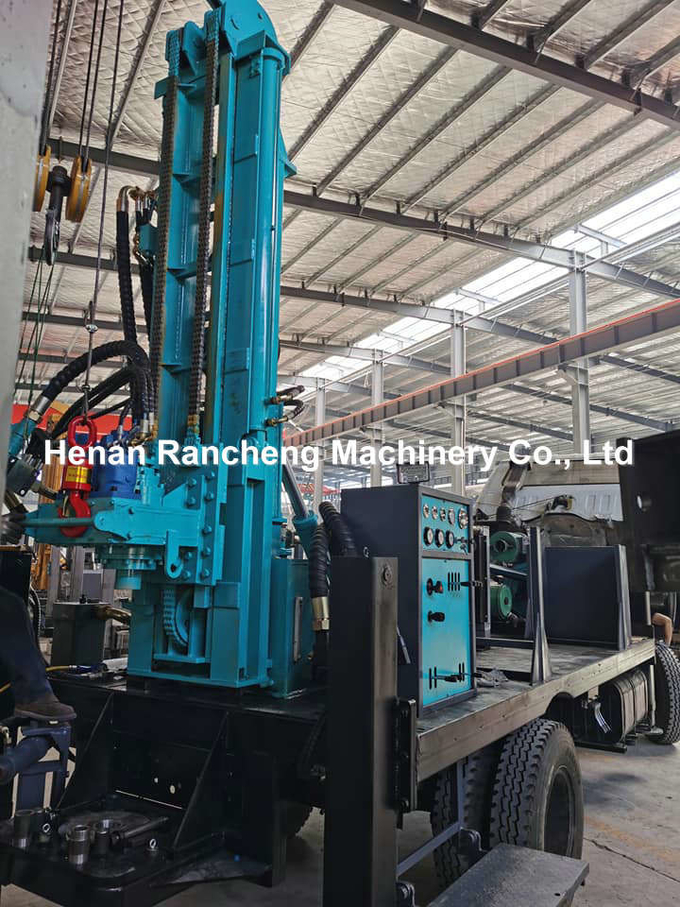

Product Image

Henan Rancheng Machinery Co., Ltd., located in the historically renowned city of Zhengzhou, Henan Province, China, has been dedicated to the design and manufacturing of drilling rigs, mud pumps, air compressors, and drilling tools since its establishment in 2010. With deep industry experience and continuous innovative exploration, the company has gradually established a good reputation and influence in the industry.

Over the years, we have always adhered to the principle of quality first, committed to providing customers with high-quality, high-performance drilling equipment. Our series of drilling rigs not only have powerful drilling capabilities but also are easy to operate, adapting to various complex geological environments. As essential auxiliary equipment for drilling operations, mud pumps and air compressors have also received a great deal of attention to ensure their stable and efficient operation.

Our Agent In Foreign

We already have professional agents in Bulgaria, Russia, Romania, and Serbia. These experienced representatives not only offer accurate recommendations for equipment selection but also provide comprehensive technical support, including equipment installation and commissioning, routine maintenance, and troubleshooting.

With the support of local agents, you can enjoy timely, efficient communication and reliable after-sales service, ensuring a smooth and worry-free purchasing and usage experience.

We warmly welcome new partners from more countries to join us in delivering high-quality drilling equipment and professional services to customers worldwide.
