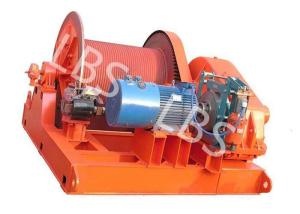

10 Ton Electric Winch Machine With LBS Groove Drum / Electric Crane Winch

Specific and parameter details:

1.Product name:electric winch machine

2.application:marine ,mining,oil drilling ,truck ,crane

3.Drum design :LBS grooving

5. Loading capacity:0.5~200 ton or customized design

6. Wire rope capacity:20~3600m or customzied design

7.Working speed:5~20 m/min or customized design

8. Power supply:220~690V,50/60HZ,three phase or customized design.

9. Single drum wire rope electric winch.

10.Parameter:can be designed as application and requirement

LBS design you choose best tips:

The LBS spooling system is designed for any hoisting and pulling application that uses multiple layers of wire rope on a drum. The geometry of LBS grooving, coupled with LBS know-how, ensures that your wire rope spools smoothly onto and off the rope drum under total control on each layer.

Main types of the electric winch

(1) Slow speed wire rope electric winch.

(2) High speed wire rope electric winch.

(3) Hand controlled wire rope electric winch.

(4) Double drum wire rope electric winch.

Working principle

electric winch for widely use transforms electric energy into mechanical energy through the motor, winch is rotor of the motor moves, outputs. Through the brake and the reducer, it reduces speed to rotate the reel. The reel winds the wire rope and passes through pulley block to make the hook lift the load, and transforms mechanical energy into mechanical work finishing transportation, load and unload of heavy weights.

Remark:Above parameter just for your reference,

this winch can be customized according to your demands

Our services:

1. Engineers available to service machinery overseas.

2. Our products have one year warranty.

Shijiazhuang Jun Zhong Machinery Manufacturing Co., Ltd, located in shijiazhuang city, hebei province, china, covers an area of more than 80 square meters, the geographical position is superior, transportation is convenient. Factory existing staff more than 3000, more than 600 professional and technical personnel, We have skilled workers, advanced processing equipment.

Our factory has casting, forging, gear machining, sheet metal stamping, welding, heat treatment, machining and other advanced equipment more than 2000 sets. In recent years, we has introductioned Germany CW1000 processing center, CNC four axis, five-axis linkage machining center, CNC punching machine, large CNC gear hobbing gear grinding machine, large CNC floor-type boring and milling machine, vacuum electron beam welding, CNC welding robots and 80 machine and other advanced processing equipment.

Our factory adopts advanced and reliable technology, specializing in the production of various types of winches, LBS wire rope groove drum, automatic rope arrangement, petroleum drilling rig winch, trailer mounted pumping unit,fifth wheel,Herringbone Gear,etc., products widely used in aviation, shipbuilding, metallurgy, petroleum, coal, port, wind power, hydropower and other heavy machinery field. in addition to the domestic market, products as been successfully exported to Singapore, America, Britain and other parts of Asia pcific and the west.

In the process of production and management we always adhere to market-oriented, based on the science and technology, relying on scientific and technological innovation, in accordance with the domestic and foreign latest relevant standards and specifications, constantly absorbing new technology improved product of research and development, so that the overall quality of products continue to increase. our factory always adhere to the "integrity, customer first " business purposes, with high reputation, high quality products and service system, and a competitive price policy, to provide customers with satisfactory service, we sincerely look forward to working with customers from home and abroad to establish long-term stable business cooperation!
