| Categories | Integrated Circuit Chip |
|---|---|
| Brand Name: | Original |
| Model Number: | IXTY08N100D2 |
| Certification: | Original |
| Place of Origin: | Original |
| MOQ: | 1 |
| Price: | Negotiation |
| Payment Terms: | TT |
| Supply Ability: | 100 |
| Delivery Time: | 3-4days |
| Packaging Details: | carton box |
| FET Type: | N-Channel |
| Drain to Source Voltage (Vdss): | 1000 V |
| Current - Continuous Drain (Id) @ 25°C: | 800mA (Tc) |
| Rds On (Max) @ Id, Vgs: | 21Ohm @ 400mA, 0V |
| Gate Charge (Qg) (Max) @ Vgs: | 14.6 nC @ 5 V |
| Vgs (Max): | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds: | 325 pF @ 25 V |
| FET Feature: | Depletion Mode |
| Company Info. |
| Shenzhen Swift Automation Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
| Type | Description |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| Single FETs, MOSFETs | |
| Mfr | IXYS |
| Series | Depletion |
| Package | Tube |
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 1000 V |
| Current - Continuous Drain (Id) @ 25°C | 800mA (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | - |
| Rds On (Max) @ Id, Vgs | 21Ohm @ 400mA, 0V |
| Vgs(th) (Max) @ Id | - |
| Gate Charge (Qg) (Max) @ Vgs | 14.6 nC @ 5 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 325 pF @ 25 V |
| FET Feature | Depletion Mode |
| Power Dissipation (Max) | 60W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |

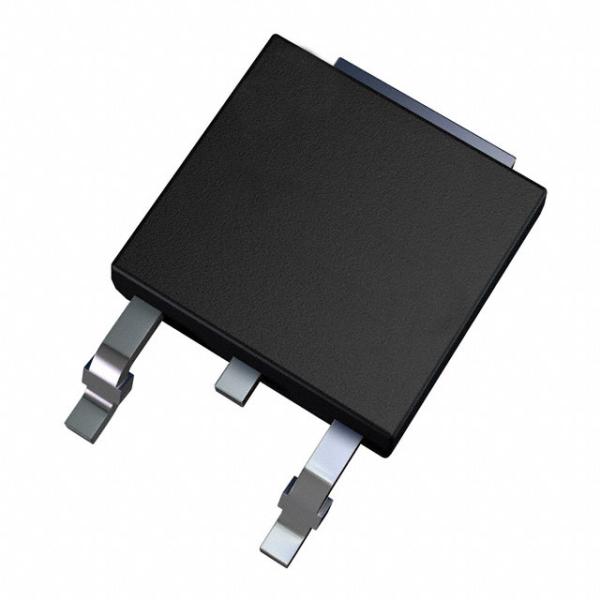

| Supplier Device Package | TO-252AA |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Base Product Number | IXTY08 |

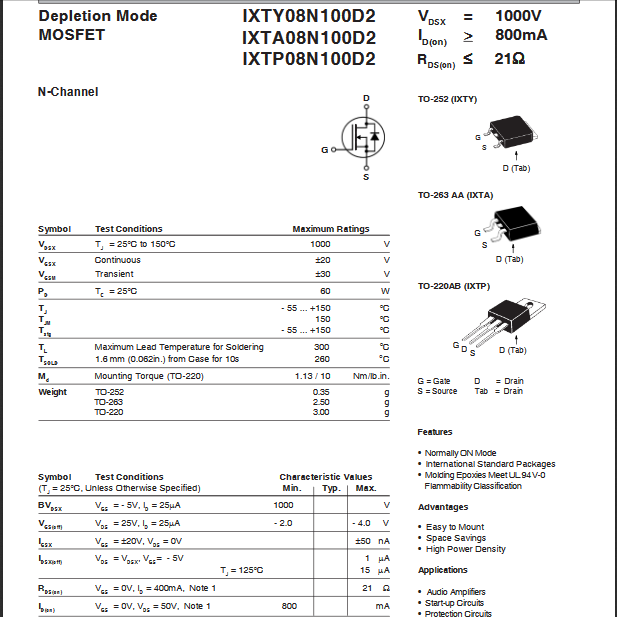

Features of IXTY08N100D2
• Normally ON Mode
• International Standard Packages
• Molding Epoxies Meet UL94V-0Flammability Classification
Applications of IXTY08N100D2
• Audio Amplifiers
• Start-up Circuits
• Protection Circuits
• Ramp Generators
• Current Regulators
• Active Loads
Addvantages of IXTY08N100D2
• Easy to Mount
• Space Savings
• High Power Density
Environmental & Export Classifications of IXTY08N100D2
| Attribute | Description |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.29.0095 |
|
