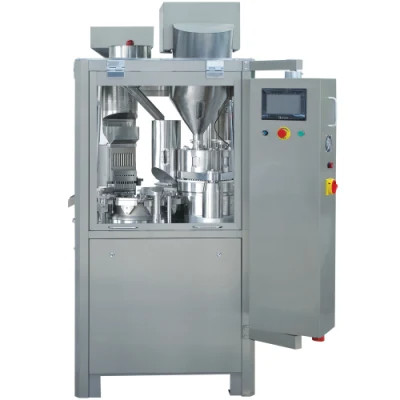

Pharmaceutical Powder Hard Gelatin Small Automatic Capsule Filling
Machine
Product Description
This model is an intermittent motion and hole plate type filling
full automatic capsule filling equipment. It adopt optimization
design for meeting the characteristics of Chinese medicine and the
requirement of GMP, it has the characteristics of compact
mechanism, small volume, lower noise, precision filling dosage,
multi-function, stable running etc. It can finish the following
motion at same time: capsule feeding, capsule separating, powder
filling, capsule rejecting, capsule locking, finished capsule
discharge and die hole cleaning etc. It is the most ideal hard
capsule filling equipment for pharmaceutical and health food
industry.
Product Prameters:
| Model | XY-200 | XY-400 | XY-600 |
| Max.output(capsules/min) | 200 | 400 | 600 |
| Filling dosage | Powder, Pellets, Tablet | Powder, Pellets, Tablet | Powder, Pellets, Tablet |
| Capsule size | Capsule 00# -5#/Safety capsule A-E | Capsule 00# -5#/Safety capsule A-E | Capsule 00# -5#/Safety capsule A-E |
| Total power | 220V/380V 3.7Kw | 220V/380V 3.7Kw | 220V/380V 4.9Kw |
| Water supply | 500L/h,0.2-0.10Mpa | 500L/h,0.2-0.10Mpa | 500L/h,0.2-0.10Mpa |
| Dust collector | 160m3/h | 160m3/h | 160m3/h |
| Overall dimension (mm) | 720*680*1700 | 720*680*1700 | 930*790*1930 |
| Weight (kg) | 700 | 700 | 800 |
| Model | XY-800 | XY-1000 | XY-1200 |
| Max.output(capsules/min) | 800 | 1000 | 1200 |
| Filling dosage | Powder, Pellets, Tablet | Powder, Pellets, Tablet | Powder, Pellets, Tablet |
| Capsule size | Capsule 00# -5#/Safety capsule A-E | Capsule 00# -5#/Safety capsule A-E | Capsule 00# -5#/Safety capsule A-E |
| Total power | 220V/380V 4.9Kw | 220V/380V 5.75Kw | 220V/380V 5.75Kw |
| Water supply | 500L/h,0.2-0.10Mpa | 500L/h,0.2-0.10Mpa | 500L/h,0.2-0.10Mpa |
| Dust collector | 160m3/h | 160m3/h | 160m3/h |
| Overall dimension (mm) | 930*790*1930 | 1020*860*1970 | 1020*860*1970 |
| Weight (kg) | 800 | 900 | 900 |
| Model | XY-1500 | XY-2000 | XY-2500 |
| Max.output(capsules/min) | 1500 | 2000 | 2500 |
| Filling dosage | Powder, Pellets, Tablet | Powder, Pellets, Tablet | Powder, Pellets, Tablet |
| Capsule size | Capsule 00# -5#/Safety capsule A-E | Capsule 00# -5#/Safety capsule A-E | Capsule 00# -5#/Safety capsule A-E |
| Total power | 220V/380V 6.45Kw | 220V/380V 6.45Kw | 220V/380V 6.45Kw |
| Water supply | 500L/h,0.2-0.10Mpa | 500L/h,0.2-0.10Mpa | 500L/h,0.2-0.10Mpa |
| Dust collector | 160m3/h | 160m3/h | 160m3/h |
| Overall dimension (mm) | 1020*1050*1970 | 1020*1050*1970 | 1150*1050*1970 |
| Weight (kg) | 900 | 1500 | 1500 |
| Model | XY-3200 | XY-3800 | XY-7500 |
| Max.output(capsules/min) | 3200 | 3800 | 7500 |
| Filling dosage | Powder, Pellets, Tablet | Powder, Pellets, Tablet | Powder, Pellets, Tablet |
| Capsule size | Capsule 00# -5#/Safety capsule A-E | Capsule 00# -5#/Safety capsule A-E | Capsule 00# -5#/Safety capsule A-E |
| Total power | 220V/380V 9.55Kw | 220V/380V 9.55Kw | 220V/380V 13.5Kw |
| Water supply | 500L/h,0.2-0.10Mpa | 500L/h,0.2-0.10Mpa | 500L/h,0.2-0.10Mpa |
| Dust collector | 160m3/h | 160m3/h | 160m3/h |
| Overall dimension (mm) | 1150*1280*2060 | 1150*1280*2060 | 1700*1280*2150 |
| Weight (kg) | 2400 | 2400 | 3800 |
