2 x COM232/485 i3/i5/i7 12th/13th gen 2x 2.5Gbe LAN Fanless IPC BOX PC 16GB DDR5 512GB SSD

Categories Industrial Mini PC
Brand Name: OEM
Model Number: KC12-F
Certification: ROHS, CE, FCC
Place of Origin: SHENZHEN,CHINA
MOQ: 50pcs
Price: $120/pc
Payment Terms: TT/LC/Paypal
Supply Ability: 20k per month
Delivery Time: sample 5 days, production 30days
Packaging Details: Gift Box/Carton
CPU: Intel® 12th/13th Gen i3/i5/i7 CPU
Products status: Stock
Type: Desktop, Barebone System
Graphics card type: Integrated Card
Wifi: Wifi AX/AC
Warranty: One year
Case: Metal
Cooling solution: Fanless
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

2 x COM232/485 i3/i5/i7 12th/13th gen 2x 2.5Gbe LAN Fanless IPC BOX PC 16GB DDR5 512GB SSD

About this item


TypeDescriptions
PROCESSORIntel® Core™ Alder Lake-P/U
i3-1215U (6 core(2+4) 8 Threads, 3.3GHz~4.4GHz), TDP 15W
i5-1240P (12 Core(4+8) 16 Threads, 3.3GHz~4.4GHz), TDP 28W
i7-1260P (12 Core(4+8) 16 Threads, 3.4GHz~4.7GHz), TDP 28W
Intel® Core™ Raptor Lake
i5-1340P(12 Core(4+8) 16 Threads, 3.4GHz~4.6GHz), TDP 28 W
i7-1360P(12 Core(4+8) 16 Threads, 3.7GHz~5.0GHz), TDP 28W
GPUIntel® Iris® Xe Graphics
Graphics max 1.4Ghz
MEMORY2 x SODIMM DDR4 2666/4800Slots Max 64GB2x SO-DIMM DDR5-2666/5200MHz
max support 64GB
WirelessWiFi: m.2 PCIe port
LAN2 x RJ45: 2.5Gigabit LAN
STORAGE1 x M.2 2280 SATA/NVME SSD
1 x M.2 2280 NVME SSD
DISPLAY PORT2 * HDMI2.0 (max support 4K@60Hz)
1* DP1.4(max supprot 4K 4096x2304@60Hz)
1* Thunderbolt 4 Type-C

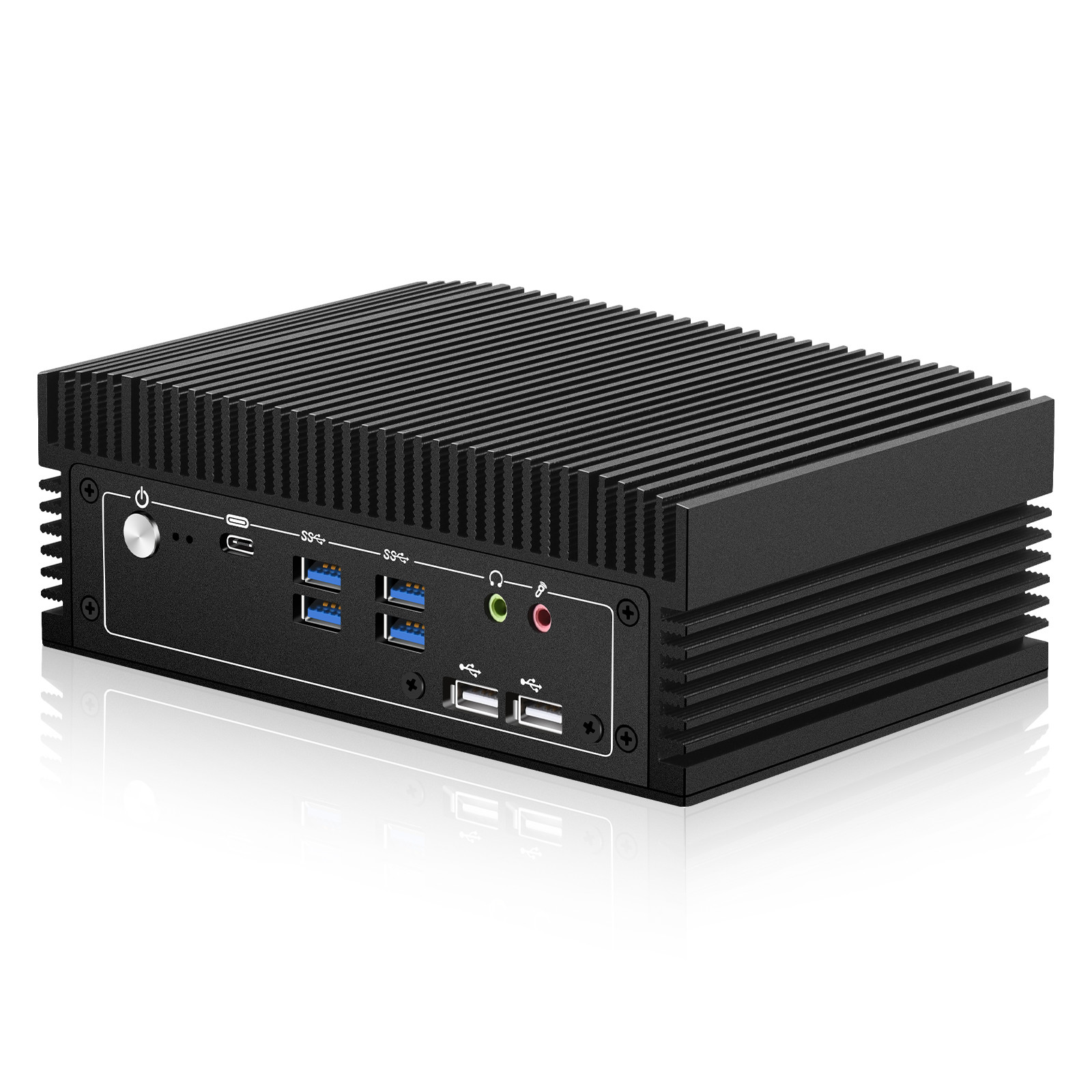

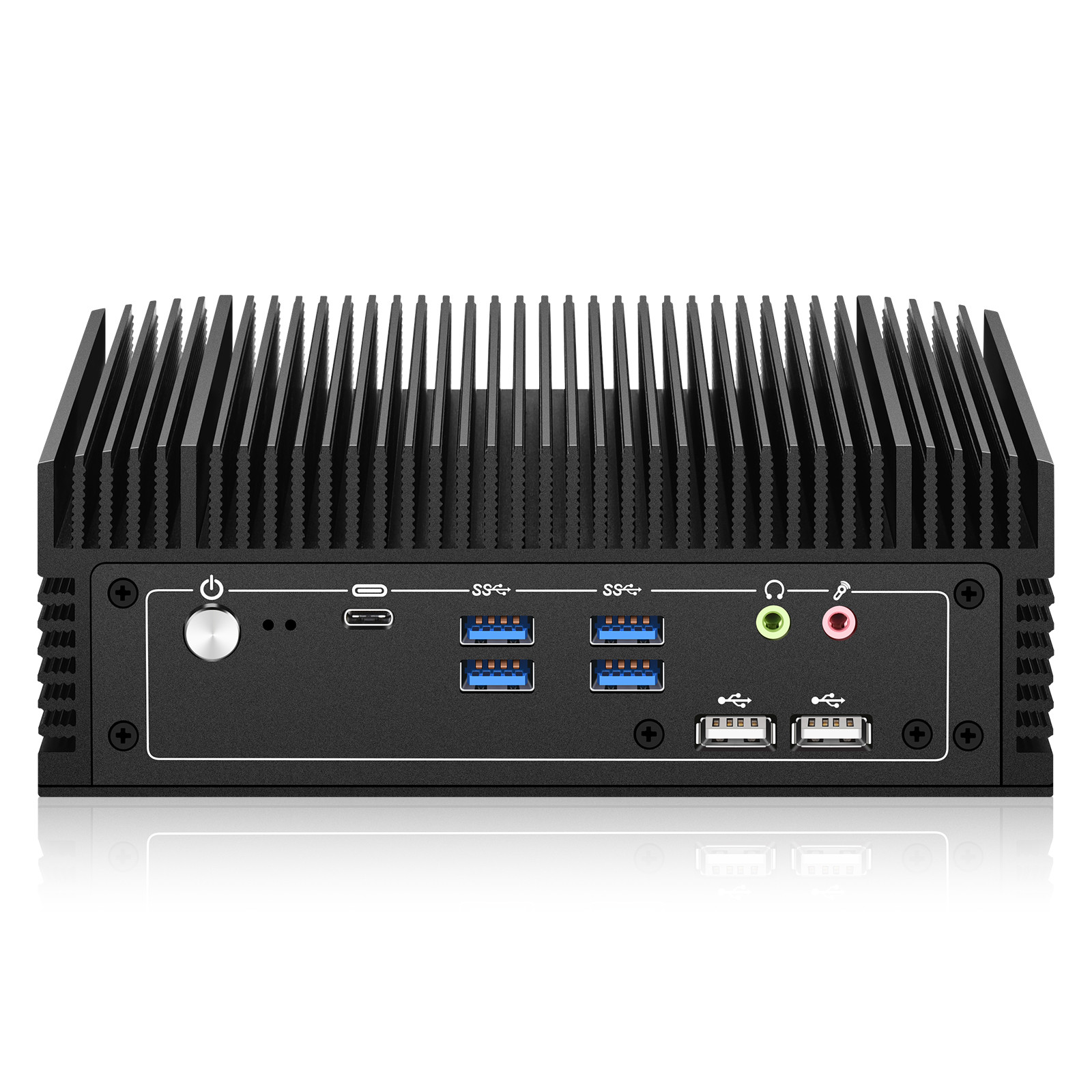

FRONT PANEL1 x Power Button
4 x USB3.0
2 x USB2.0
1 x Thunder bolt 4 type-C
1 x MIC IN
1 x Line out

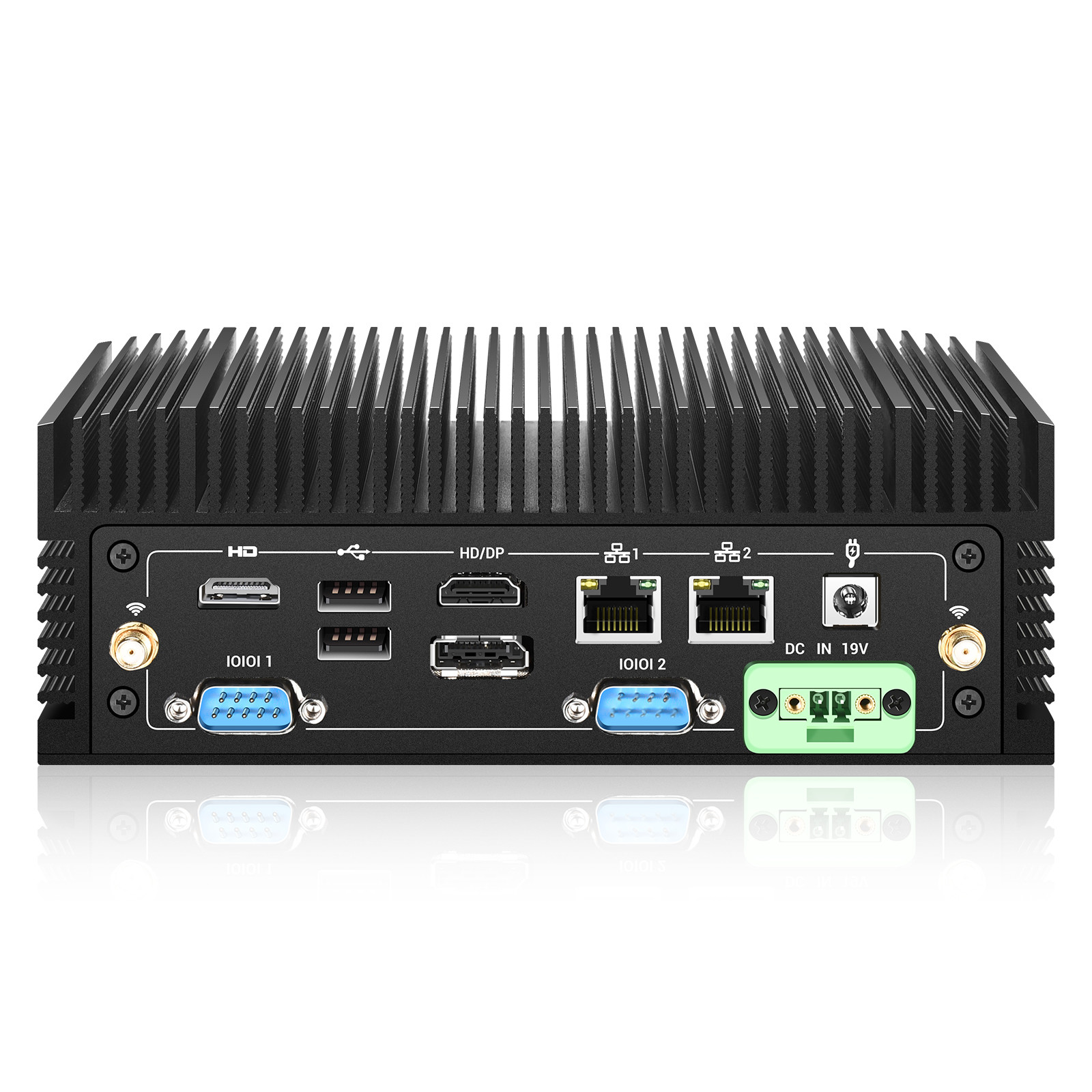

BACK PANEL2 x RJ45 Gigabit LAN port
1 x COM232, 1 x COM485
2 x HDMI 2.0
1 x DP1.4
2 x USB3.0
1 x DC IN/Phoenix Connector
POWERInput:100- 240V AC
Output: 19V4.74A DC / 19V3.42A DC
DC voltage input range: 12-19V
ACCESSORIESAdapter
HDMI cable
VESA mount
VESASupport 70x70/100x100mm
BIOSWake On Lan, UEFI,Auto power on when power failure, PXE
SIZEChassis: 185*127.5*67mm
CHASSISAlluminum
OS SUPPORTWIN11/WIN10/Linux
