Industrial Unmanaged POE Switch 4 Port 100Mbps SFP Fiber Network 15.4W/30W Standard

Categories Industrial Unmanaged POE Switch
Brand Name: OLYCOM
Model Number: IM-FP244FE
Certification: CE, FCC, RoHS
Place of Origin: Shenzhen, China
MOQ: 1pc
Price: Negotiable
Payment Terms: T/T, Paypal
Supply Ability: 2000 units per month
Delivery Time: 3-5 days
Packaging Details: One unit device and one user manual are inside one box , sealed and well protected.
Product Name: 4 Port Fast Ethernet Industrial PoE Switch
Optical: 2*100M SFP Slots
Copper: 4*10/100Mbps RJ45/PoE
PoE Output: 15.4W/30W
PoE Budget: 120W
Customization: Support
Chip: Realtek
PoE Distance: 100-meter
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Industrial Unmanaged POE Switch 4 Port 100Mbps SFP Fiber Network 15.4W/30W Standard

10/100Mbps 4 Port Outdoor PoE Switch


Specification of Industrial Fiber Switch


Product Name10/100Mbps Industrial PoE Fiber Switch(2F+4TP)
Model No.IM-FP244FE
Port

2x100M SFP Fiber

SM: 1310nm/1550nm, 20Km; 1490nm/1550nm, 40~120Km

MM: 1310nm, 2Km; 850nm, 500-meter

4x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)

1x6-PIN Power Terminal Block

Protocol

IEEE 802.3(10Base-T)

IEEE 802.3u(100Base-TX)

IEEE 802.3af 15.4W(PoE)

IEEE 802.3at 30W(PoE+)

Switching Features

Transmission mode: storage and forward

Forwarding delay: <10us

System bandwidth: 1.2Gbps (non-traffic jam)

MAC: 4K

Packet buffer size: 1.75Mb

Network Media

10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)

100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)

LEDs

Power, Fiber, Network, PoE

PWR: Power


Fiber: FX1, FX2

On: transmission is normal

Off: transmission is NOT normal(faulty optical module or disconnected)


Copper orange: PoE indicator

On: PoE is working

Off: PoE is not working or this is Non-PoE device


Copper green: Speed indicator

On: transmission speed is 1000Mbps

Blinking: in transmission

Off: Disconnected or working speed is 10/100Mbps

Power ConsumptionFull loading without PoE≤5W
Power Supply

PoE power supply input voltage: 48V (max 52V)

Single PoE power supply output power: 30W (port 1~4)
Total budget: 120W

PoE output voltage: 48V

Reverse connection: support

PoE Wiring1/2 (V+), 3/6 (V-)
Environment

Working temperature: -40°C~75°C

Storage temperature: -40°C~85°C

Working humidity: 10%~90%, non-condensing

Storage humidity: 10%~95%, non-condensing

Industry Standards

ESD: IEC61000-4-2, ±15KV air, ±6KV contact

EFT: IEC61000-4-4, General ±6KV

Surge: IEC61000-4-5, Differential ±2KV, Common±6KV

Certification

CE-EMC: EN 55032:2015+AC: 2016+A1:2020+A11: 2020

EN 55035:2017+A11: 2020/EN IEC 61000-3-2:2019/A1: 2021

EN 61000-3-3: 2013/A2: 2021/AC:2022

CE-LVD: EN IEC 62368-1: 2020+A11:2020

FCC: 47 CFR FCC Part 15 Subpart B(Class B) ANSI C63.4: 2014

Mechanical information

Shell: Corrugated metal shell, IP40 grade level

Dimension: 114*93*35mm

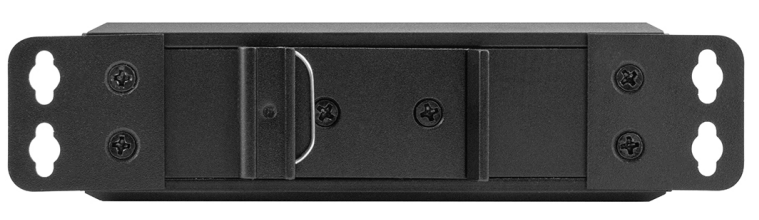

Mounting method: Din-rail/Wall mounting

Weight: 0.35Kg/0.45Kg(Net/Gross)

Warranty3 years, lifetime technical support


  • Supply active PoE(DC48V) to PoE IP cameras, WAPs etc. through Cat5 or above copper cable
  • 2x100Mbps Auto-sensing SFP fiber ports
  • 4x10/100/1000Mbps Auto-sensing RJ45, IEEE 802.3af/at power on to 1~ 4 ports
  • Detect the PoE modes(Non-PoE, 802.3af/at compliant) of connected electrical equipment
  • 6KV Ethernet surge protection, adapt to a harsh outdoor environment
  • Support Auto MDI/MDIX
  • Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
  • IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
  • DIN rail or Wall installation
  • Power range up to 100 meters
  • Comply with FCC and CE standards
  • A store-and-forward switching mechanism
  • Operating environment temperature: -40°C~75°C

With above features, it is an ideal solution for IP Surveillance, wind, electricity, subway PIS, assembly automation, power SCADA, sewage treatment, metallurgy, intelligent transportation, rail transportation, military and other industries



FAQ

1, What chip is it based?

Olycom: Realtek

2, Can I customize it?

Olycom: Yes

We support OEM services like logo, model name, label, PVC mask and product parts(mounting kit, power terminal block etc.)

3, Is it managed?

Olycom: No

Its just simple plug-and-play, but we have a managed model(IM-FP244GM)


Accessories


Industrial Optical Module
OSPL1E06D-85100BASE-FX(850nm)
OSPL1E06D100BASE-FX
OSPL1E20D100BASE-LX
OSPL1E40D100BASE-EX
OSBL1E20D-35100BASE-BX-U(TX 1310 RX1550)
OSBL1E20D-53100BASE-BX-D(TX 1550 RX1310)
OSPL1G05D1000BASE-SX
OSPL1G06D1000BASE-SX(1310nm)
OSPL1G20D1000BASE-LX
OSPL1G40D1000BASE-EX
OSBL1G20D-351000BASE-BX-U(TX 1310 RX1550)
OSBL1G20D-531000BASE-BX-D(TX 1550 RX1310)
Industrial DIN Power Supply
IM-DAC220/DC48V2.5AAC220V to DC48V2.5A, -40℃~70℃
IM-DAC220/DC48V5AAC220V to DC48V5A, -40℃~70℃
IM-DAC220/DC48V10AAC220V to DC48V10A, -40℃~70℃

Packing List


  • 1pc switch
  • 1pc user manual

Remark

Accessories(optical module, power supply, patchcord, network cable etc.)are NOT included in the packing box

Please prepare it by yourself or purchase a whole set from us


Shipping box information

Product size: 11.4*9.3*3.5cm

Inner box size: 23*16.5*5.8cm

Product weight: 0.35Kg

Packing weight: 0.45Kg


Master box size: 67*33*47cm

Packing quantity: 40Pcs

Packing weight: 20Kg


Warranty & Guarantee


At Shenzhen Olycom Technology Co., Ltd., we pride ourselves on using only new materials that meet the highest standards.

In fact, we never use old or refurbished materials.

We stand behind our products with a 5-year manufacturer's warranty (excluding contrived damage or misusage).

Every product undergoes rigorous functional and aging testing before delivery to ensure top-notch quality.

In the rare event of any compatibility or quality issues, we offer easy returns and repairs or replacements.

Please note that the buyer is responsible for all return and second shipping charges.

With our commitment to quality and customer satisfaction, you can trust Olink for all your technology needs.
