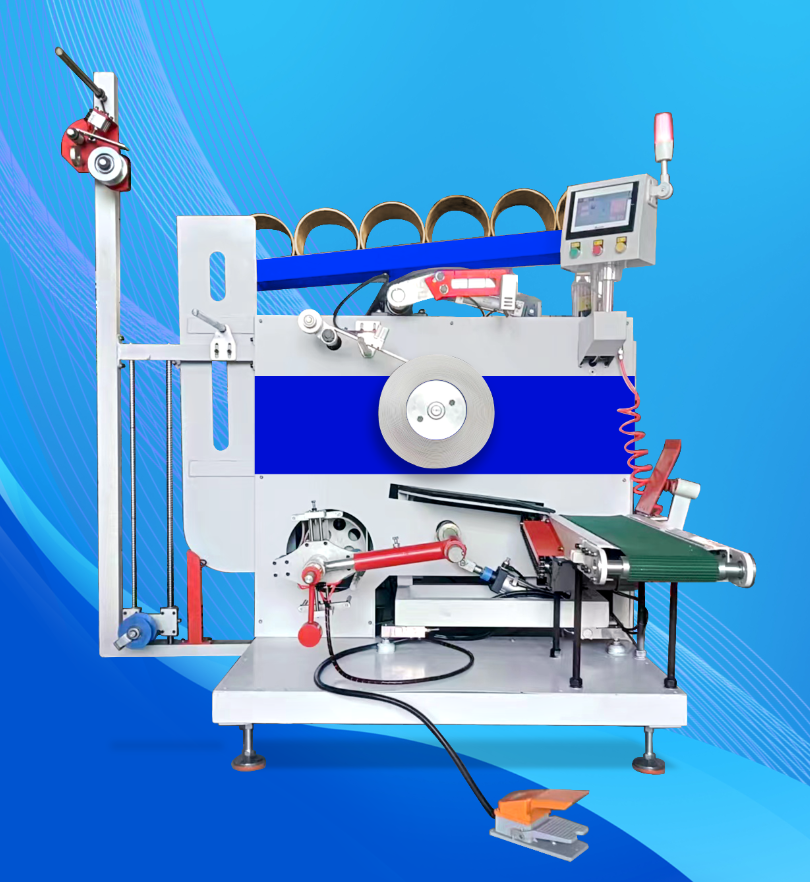

1.8KW PP Strap Winder Dual-Servo Motor Automatic Paper Tube Change Support

►The Automatic Winding Machine is a servo motor line automatic winding machine that offers hassle-free winding and can automatically stop the winder. It is equipped with a touch screen control panel and does not need to change gears, making it easier to operate. The Automatic Winding Machine also features an automatic wrap PE film function, making it an efficient and user-friendly machine. With a power requirement of 220V/380V/440V, the Automatic Winding Machine is perfect for various industrial uses.
►Using condition: power single-phase 220V, air pressure 4-7kgf, plug the air pipe(Φ8)in according to the marks on the equipment,connect the electronic line(2.5 m2 +).Ventilate first, then electrify(When turning off the machine in reverse order-first turn off the electricity, then turn off the air pressure).
►use the servo motor to lay the cable, and wind up the PP STRAP with the width of 7-19mm. Select the corresponding bandwidth through the touch screen to wind up, and there is no need to manually replace the transmission gear.
►After the winding is completed, the machine will stop automatically, replace the paper tube, cut off the PP STRAP and clamp the pieces to fix the STRAP head, and the winding operation will be carried out automatically, and the whole process will be completed automatically.
►The winding shaft uses the torque mode of servo motor, and the torque during winding can be set through the touch screen, so that the PP STRAP with different gram weight or width can be wound with appropriate torque, so be best to minimize the bending deformation of the PP STRAP after winding.
►After the winding is completed, the exiting packing belt will automatically move to the storage belt conveyor. About 3 rolls can be placed on the conveyor, and it can also be lengthened according to the needs of customers.
►Paper tube: 203mm * 165~195mm paper tube, 10mm thick, recycling old paper tube is not available.

Features of Automatic packing tape winding machine:

• Product Name: Strapping Band Winding Machine
• Automatic paper tube change: YES
• Use the servo motor to lay the cable: YES
• Tension Range: 80-300kg
• Application: Packaging Industry
• Automatic winder: YES
• PP strap full-automatic winder: YES
• Automatically stop the winder: YES
• Automatic packing tape winding machine
• Automatic packing and winding machine
• Pack and tape equipment

Technical Parameters of Automatic packing tape winding machine:

Applications of Automatic packing tape winding machine:

The Automatic PP packing and winding machine by Automatic is named Strapping Band Winding Machine. This machine is designed to make the winding of PP strapping bands easier and faster. It has a model number of JTPP/PET and is made in CHINA. This machine has a tension range of 80-300kg, and is equipped with a dual-servo motor for automatic winding. It does not require manual volume change, and can be customized in size according to the needs of the customer. Additionally, it is designed to automatically stop the winder as soon as the tension reaches the set parameters. This makes it a highly efficient and reliable machine for winding PP strapping bands.

Customization of Automatic packing tape winding machine:

We provide customized Strapping Band Winding Machine with the following properties:

• Brand Name: Automatic PP packing and winding machine
• Model Number: JTPP/PET
• Place of Origin: CHINA
• Tension Range: 80-300kg
• Auto wrap PE film: YES
• No manual volume change is required: YES
• Adjustable tightness: YES
• Feature: Full-automatic Winder, Servo motor line automatic winding machine, Servo winding machine, PP STRAP WINDER DUAL-SERVO MOTOR

Support and Services of Automatic packing tape winding machine:

We provide technical support and service for Strapping Band Winding Machines. Our team of experts are available to help with installation, troubleshooting, maintenance, and repair. We can also provide spare parts and accessories to keep your machine running at peak performance.
We provide 24/7 customer service and technical support. If you have any questions or need assistance with your Strapping Band Winding Machine, please contact our team directly.
Our customer service and technical support team are dedicated to providing you with the best experience with your Strapping Band Winding Machine.

Packing and Shipping of Automatic packing tape winding machine:

FAQ:

Q: What is the Brand Name of this product?

A: The Brand Name of this product is Automatic PP packing and winding machine.

Q: What is the Model Number of this product?

A: The Model Number of this product is JTPP/PET.

Q: Where is this product made?

A: This product is made in CHINA.

Q: What is the material used in this product?

A: This product is made of PP and PET.

Q: What is the purpose of this product?

A: This product is a Strapping Band Winding Machine, which is mainly used for automatic packing and winding of straps.
