High Resolution Tilt Sensor Inclinometer With Temperature Sensor Built-in For Wind Power

Categories Tilt Sensor Inclinometer
Brand Name: RION
Model Number: PCA826-485
Certification: CE, ISO
Place of Origin: Guangdong, China
MOQ: 1
Price: US$398.00
Payment Terms: T/T, Paypal
Supply Ability: 500/month
Delivery Time: 7 days for samples
Packaging Details: 1pcs/box ,100pcs/ctn
Measure range: +/-60deg
Interface: RS422,RS485 , CAN2.0
Power supply: DC9-36V
Zero temp coefficient: 0.0002deg/℃
Resolution: 0.0005deg
Mtbf: ≥50000 hours/times
Weight: 50g
Shockproof: >2000 gravity
Working Temperature: -40℃~ +85℃
Wide Temperature Working: -40~+85℃
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

High Resolution Tilt Sensor Inclinometer With Temperature Sensor Built-in For Wind Power

High Resolution Tilt Sensor Inclinometer With Temperature sensor built-in For Wind power


▶ INTRODUCTION


It Output interface RS485, RS422, RS232 optional. The non-contact installation makes PCA826T easy to install or integrate. Strong resistance to external electromagnetic interference, strong anti-shock and vibration ability, widely used in satellite communication system processing vehicles, radar antenna vehicles, etc.


▶ MAIN FEATURES

★ Biaxial tilt angle measurement

★ Range ±1~±60° optional

★ Horizontal/vertical optional

★ DC 9~36V wide voltage input

★ Wide temperature operation -40~+85℃

★ Resolution 0.0005°

★ Size: L82×W70×H42mm

★ Output mode CAN2.0A


▶ Usage for

★ Wind power monitoring

★ Bridge and Dam monitoring

★ Ancient building monitoring

★ High-speed rail track monitoring

★ Ground satellite communication vehicles

★ Railway gauge ruler and gauge leveling

★ Geological equipment tilt monitoring

★ Engineering vehicle leveling


Specification
PCA826T CONDITIONPARAMETERSUNIT
Measure range±5±10±30±60°
Measure axisXYXYXYXY
Resolution0.00050.00050.00050.0005°
Measure accuracy@25℃0.0010.0020.0030.005°
Long-term stability0.020.020.030.04°
Zero temp coefficient-40~85℃0.00020.00020.00020.0002°/℃
Sensitivity temp coefficient-40~85℃≤50≤50≤50≤50ppm/℃
Power on time<0.4<0.4<0.4<0.4S
Response frequency0.040.040.040.04S
Output rate5Hz,10Hz,25Hz,35Hz,50Hz,100Hz. Can be set
Ouput signalRS485/RS422 optional
EMCAccording to EN61000 and GBT17626
MTBF≥50000 hour/time
Insulation Resistance≥100 MΩ
Shockproof100g@11ms,3 Axial Direction (Half Sinusoid)
Anti-vibration10grms,10~1000Hz
Protection gradeIP67
CablesStandard configuration 1 meter, wear-resistant, wide temperature, shielded cable, mm aviation connector
Weight385g (exclude cable)
▶ ELECTRICAL CONNECTIONS

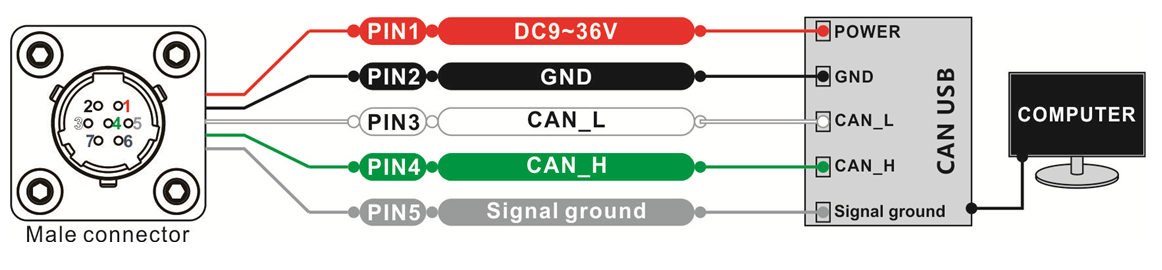

CAN wiring definition (7-core wiring definition)

Line color functionPIN1PIN2PIN3PIN4PIN5PIN6PIN7
DC9~36VGNDCAN_LCAN_HSignal groundFactory useFactory use
