Stud Track Steel Wall Framing C U Drywall Roll Forming Machine For Gypsum Board Ceiling

Stud & Track Steel Wall Framing C U Drywall Roll Forming Machine For Gypsum Board Ceiling

The light steel stud track drywall roll forming machine C and U with varies sizes.

Light steel keel used good quality hot galvanized strip as raw materials, It is widely used for paperfaced gypsum board, decorative gypsum board to finish the non-bearing walls and roof of the building decoration.

1. Technical Parameter

2. Machine Components

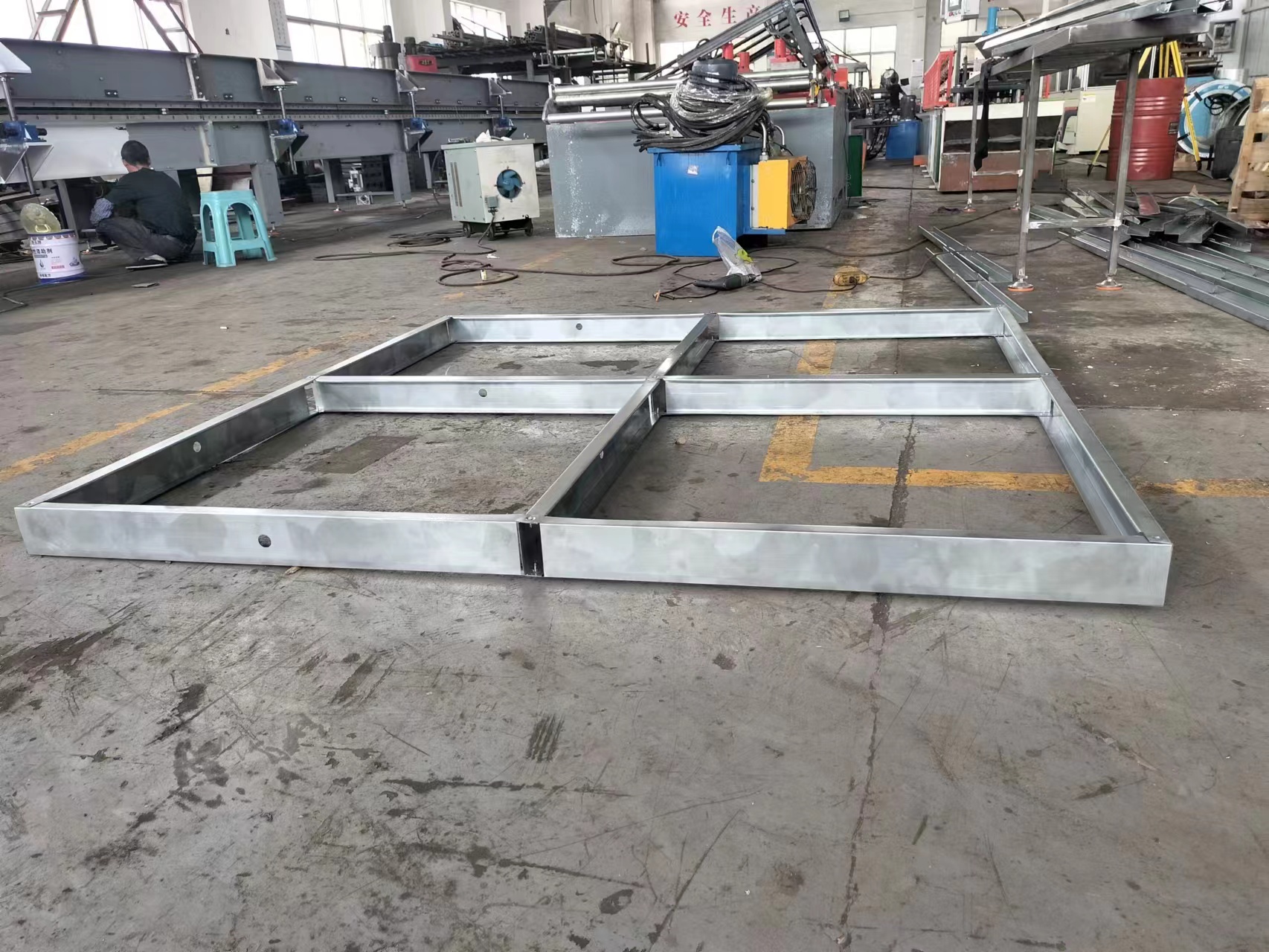

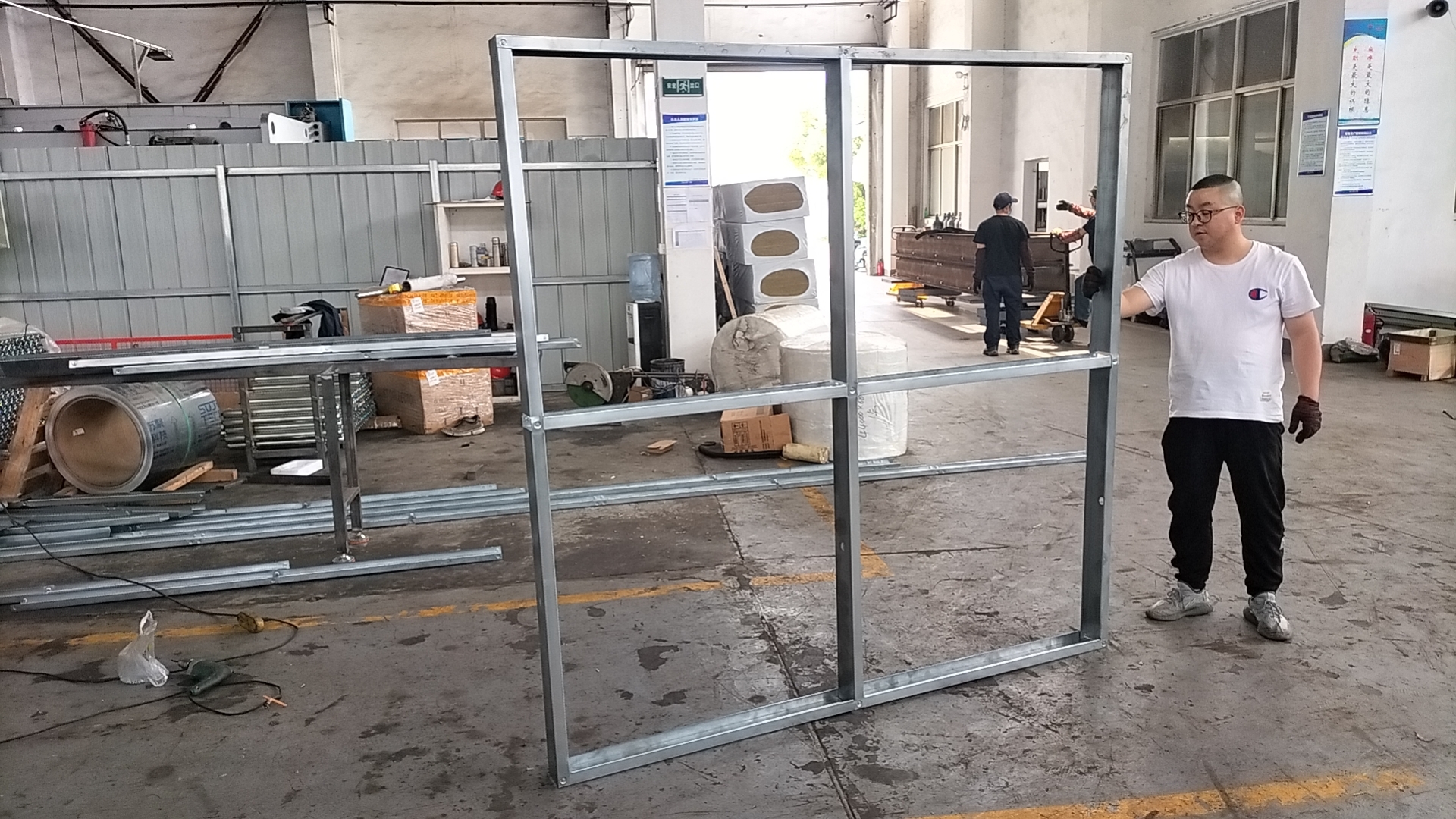

3. C U profiles we can make

C U stud track profile is popular in South America, especially Peru, Chile, raw material could be Galvanized steel, high-tensile steel, the material can do 0.4mm to 1.2mm, width from 40mm to 200mm, change the width automatically by motor and PLC

The round holes on the bottom, and the screw dimple on the sides

Stud and track is made in one machine size by spacers and toolings, holes 25mm

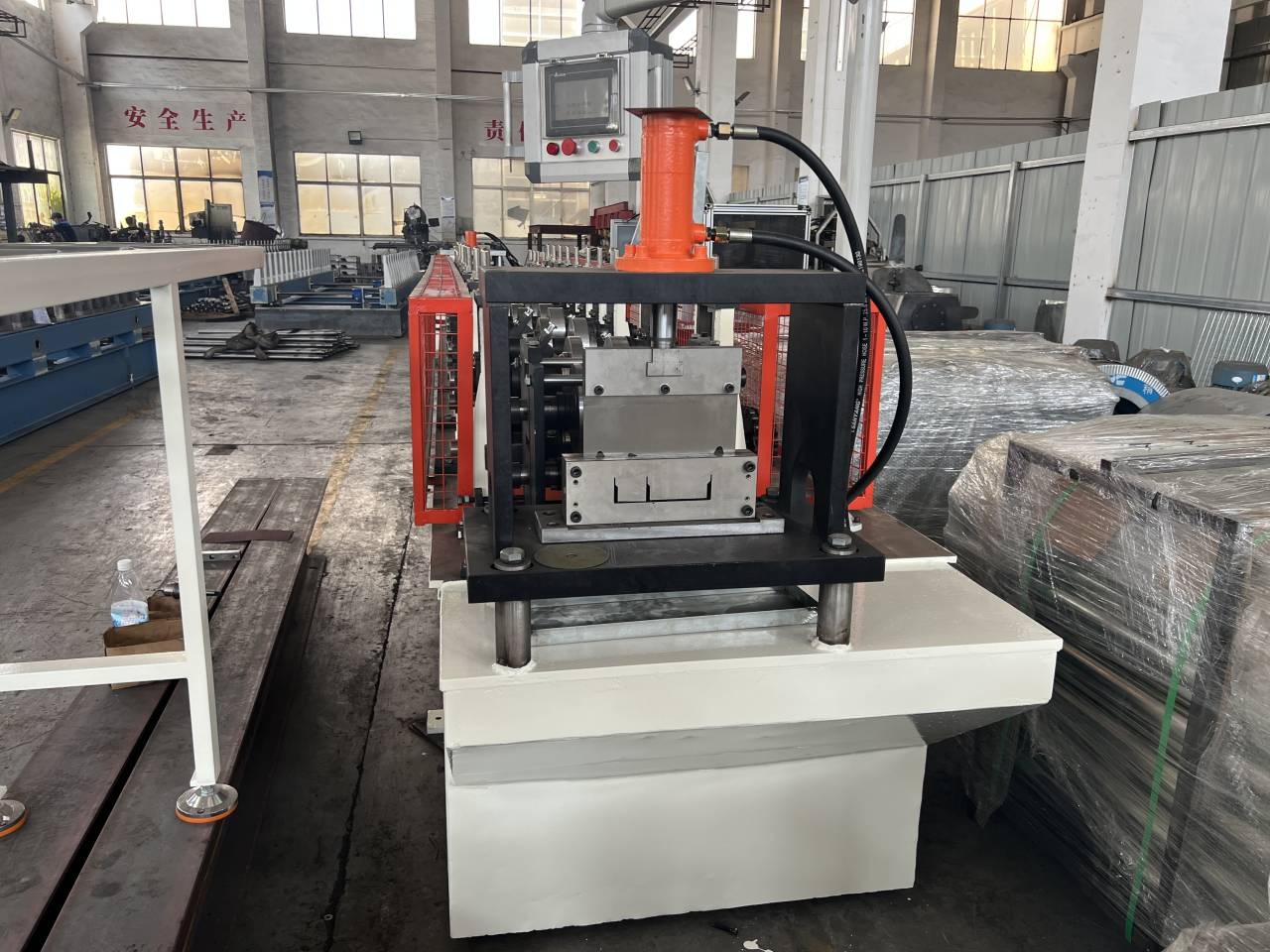

4. Machine photo

The main products of factory is light gauge framing machine, pre-painted steel forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down Pipe forming machine, The whole carriage plate for car beam unit , Steel storage unit, etc. Totally it has 100 types in 20 serious. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas, residential, greenhouse and other construction projects. Our factory can meet the construction enterprises, automobile industry, iron and steel production enterprises’s growing demand.
