Automatic Tube Cutting And Laser Marking Machine

Categories Tube/Strip Cutting Machine
Brand Name: RKENS
Model Number: RS-100JQ
Place of Origin: China
Name: Automatic tube cutting machine with laser marking feature
Usage: Cut tubes and laser mark
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Automatic Tube Cutting And Laser Marking Machine

Automatic Tube Cutting And Laser Marking Machine


Specification:


NameRS-100JB Automatic tube cutting and laser marking machine
Cut length0-9999mm
Cut width1-90mm
Available cut height20mm
Power350W
Blade materialDC53
Cut motorAC220V, 120W,12.5K
Feed motorStepper motor 8680

Features:

1. Chinese/English LCD display, advanced electronic control, easy to operate;
2. Complete industrial-grade protection circuit design to ensure trouble-free operation for more than 20,000 hours;
3. It has complete data protection function for the set data, and the data can be saved permanently;
4. The material can be advanced and unloaded manually, and the knife can also be manually cut;
5. You can set the feeding speed, length, number of cuts, completed output, number of pieces, pause time for the number of pieces, etc.;
6. The system has output statistics and number prompt functions after winding;
7. Cutter: AC motor AC220V0.6A90W, 1350 rpm 1:12.5 box, pneumatic cutter (AC220V air valve or DC24V air valve);
8. Feeding stepper motor: 85 or 86 steps; (400 pulses per week); fast speed and high accuracy.
UV laser coding machine specifcation
ModelUnitJH-03JH-05
Marking paraMarking sizemm110*110/175*175/200*200/300*300/420*420 optional
Working distancemm160/220/254/330/420/515
Marking speedMm/s70007000
Mark mini charactersmm0.2
Mark mini line widthmm0.02
Laser featureLaser type/ wavelengthnmUV laser/355nm
Output powerW35
Power stabilityrms<+-1%
Light quantity<1.5
pulse repetition frequencyKHz1-1000
Laser safety levelClaser IV
Other featuresSystem protection levelIP54
Cooling methodWater cooling
Operating environment°C15-30
Power requirements220V+-5%/50HZ/10A
Machine power consumptionKW<1.5
Machine sizemm650*800*1500

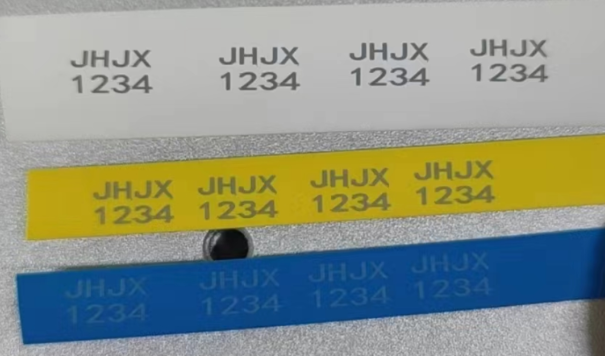

marking samples


Machine video:
